P0462

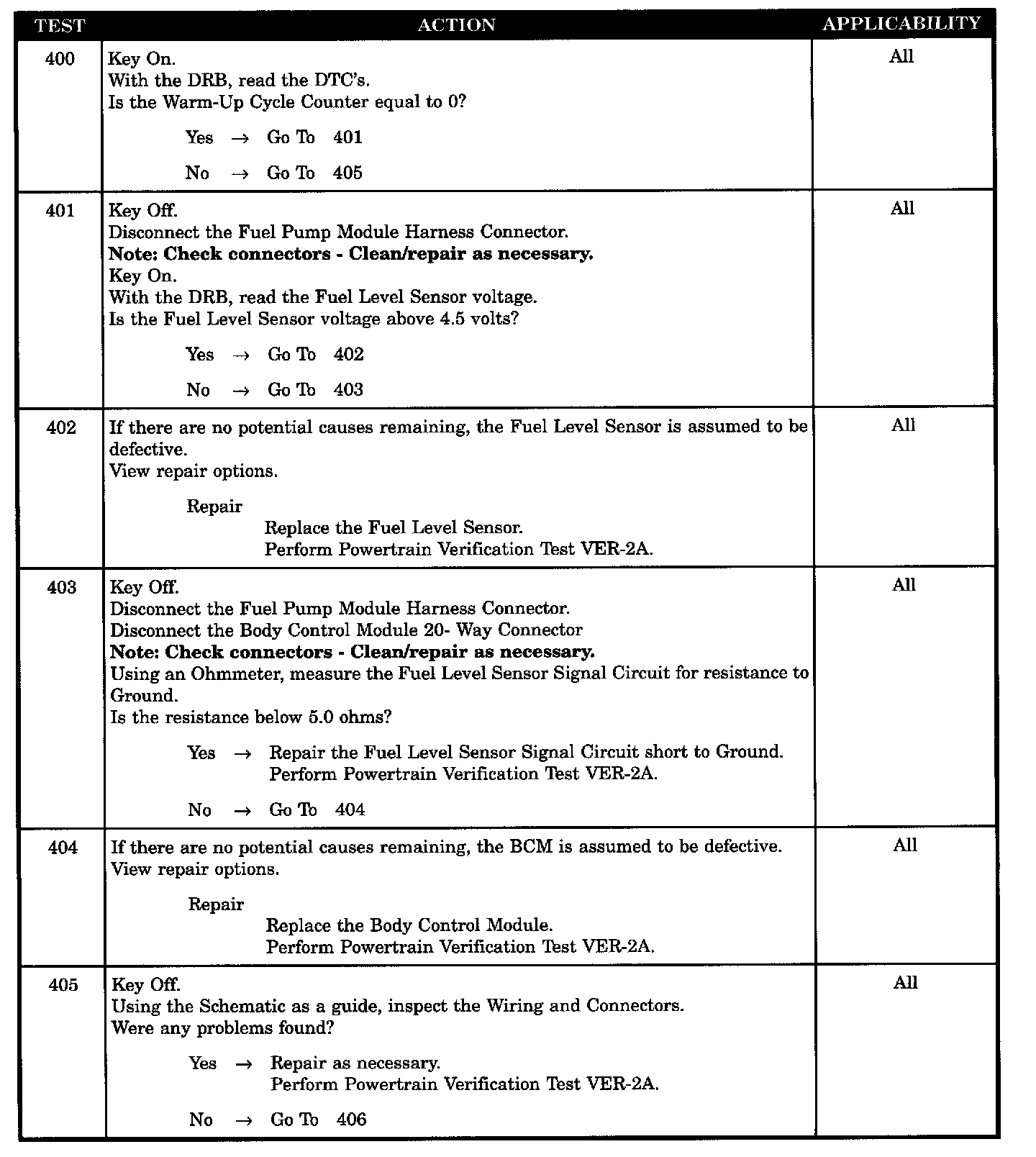

Tests 400 - 405:

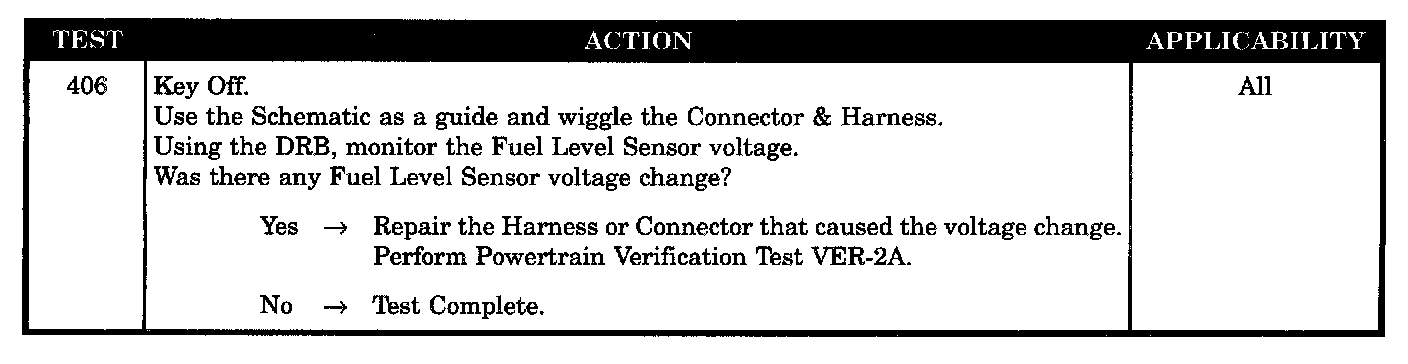

Test 406:

SYMPTOM
P-0462 FUEL LEVEL SENDING UNIT VOLTS TOO LOW

WHEN MONITORED
Ignition on.

SET CONDITION
The fuel level sensor signal circuit voltage at the PCM goes below 0.10 volts.

POSSIBLE CAUSES
- Fuel level sensor signal circuit short to ground
- Fuel level signal ckt wrg harn intermittent defect
- Fuel level signal ckt wrg harn observable defect
- Fuel level sensor defective
- Body control module defective
