P0204

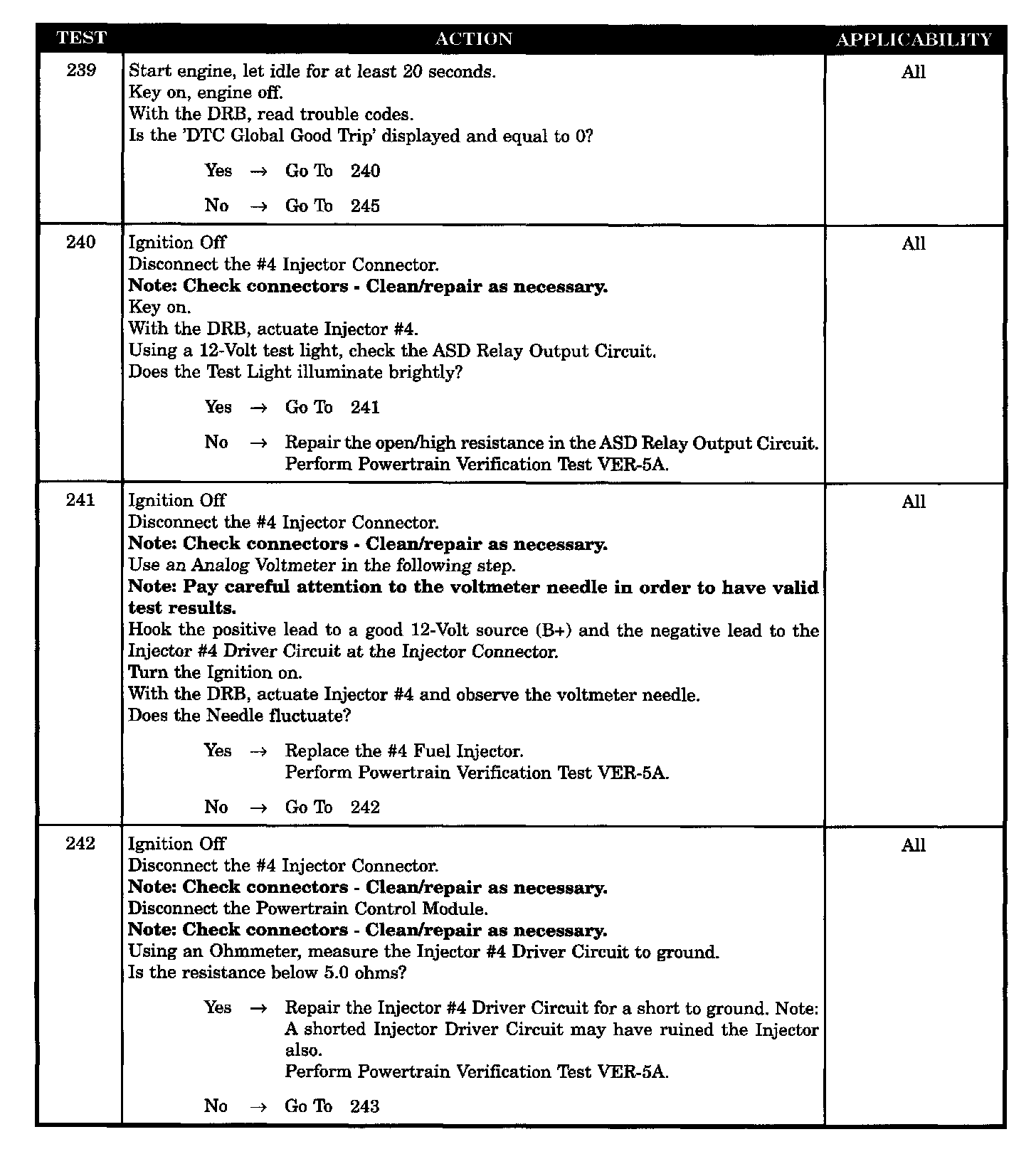

Tests 239 - 242:

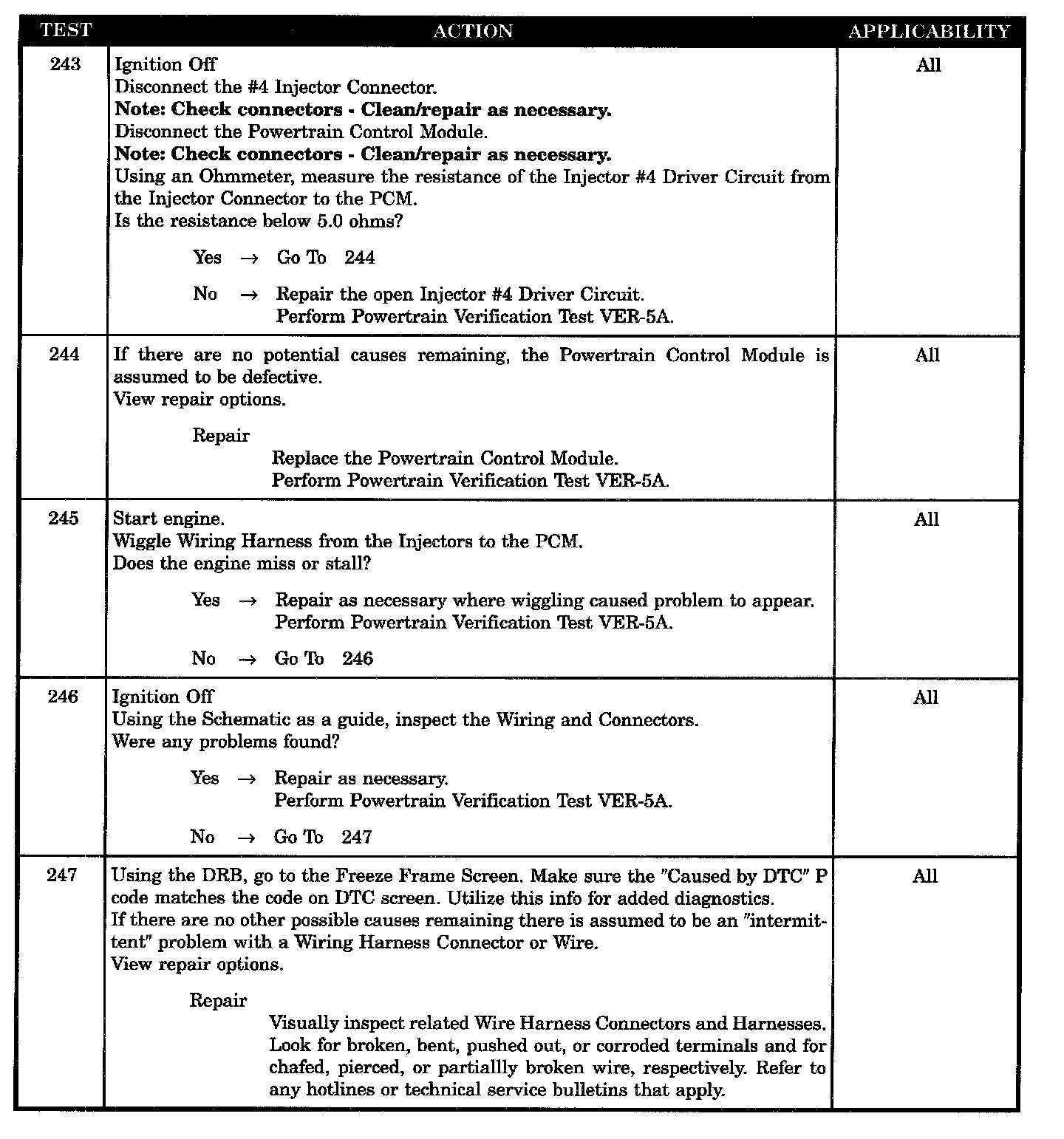

Tests 243 - 247:

SYMPTOM
P-0204 INJECTOR #4 CONTROL CIRCUIT

WHEN MONITORED
With battery voltage greater than 12 volts, the auto shutdown relay energized, injector pulse width less than 10ms, and engine speed less than 3000 rpm.

SET CONDITION
This trouble code takes 0.64 to 10.0 seconds to set when no inductive kick is sensed 0.18ms after injector turn off, and with no other injectors on.

POSSIBLE CAUSES
- No possible causes remaining
- ASD relay output circuit open
- Injector #4 defective
- Injector #4 driver circuit open
- Injector #4 driver circuit short to ground
- Injector control ckt wiring harn intermittent def
- Injector control ckt wiring harn observable defect
- Powertrain control module defective
