P0141

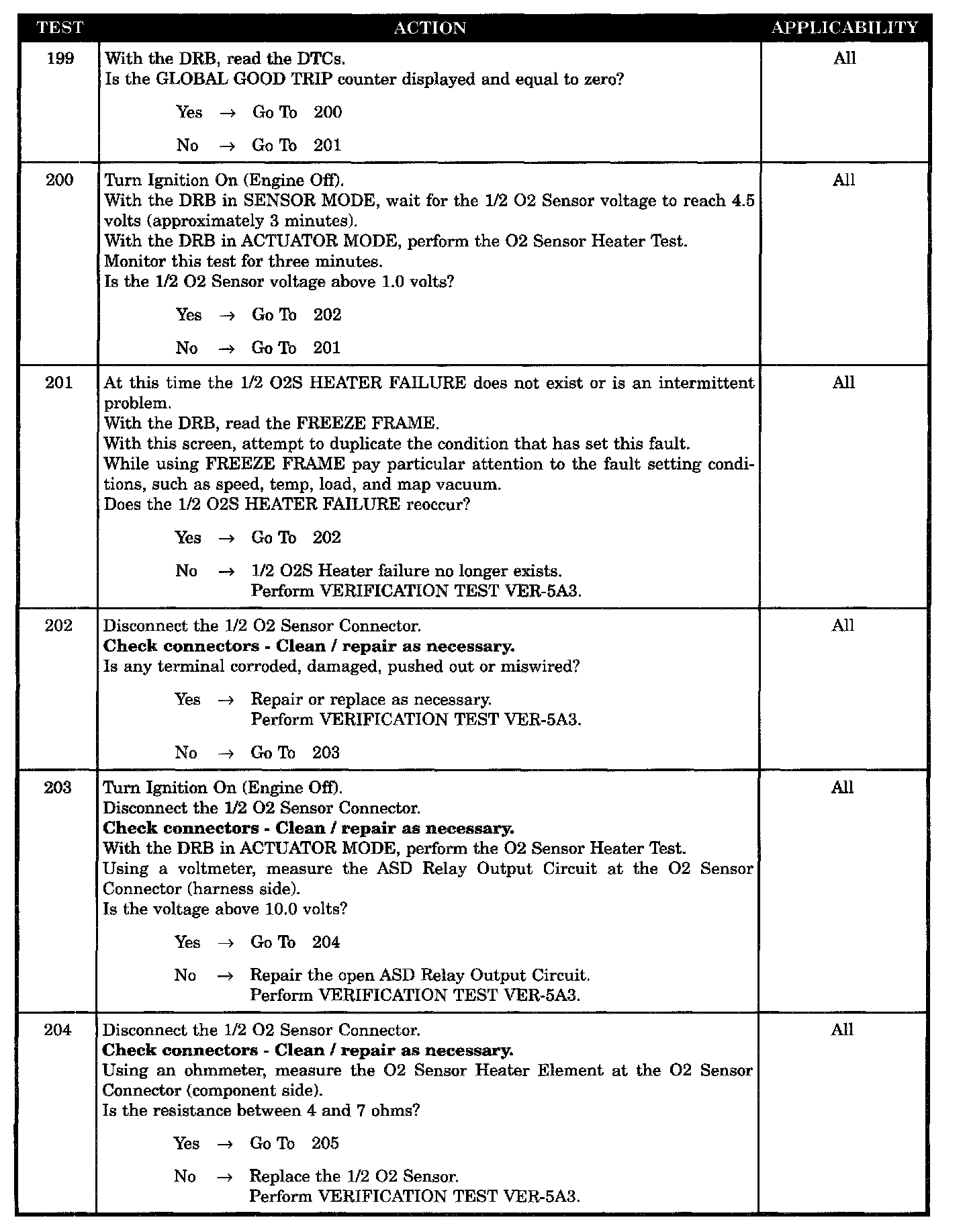

Tests 199 - 204:

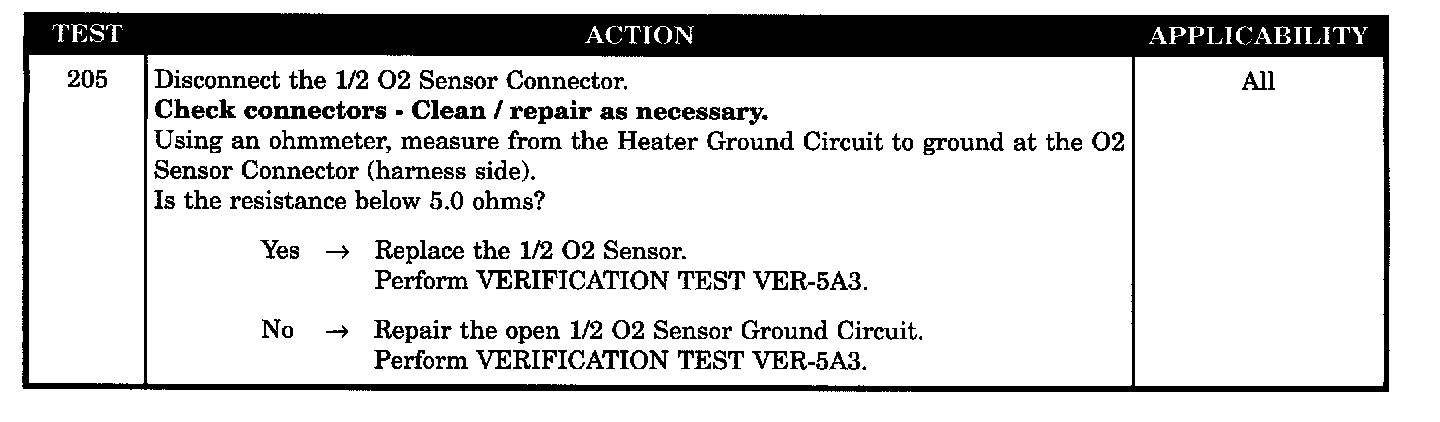

Test 205:

SYMPTOM
P-0141 1/2 O2 SENSOR HEATER FAILURE

WHEN MONITORED
With the engine at idle immediately after a cold start (engine < 174 degrees F and battery temp ± 27 degrees F of engine temperature).

SET CONDITION
O2 sensor voltage> 3V for 30 to 90 seconds.

POSSIBLE CAUSES
- 1/2 O2 sensor connector damaged
- 1/2 O2 sensor gnd circuit open
- ASD relay output circuit open
- 1/2 O2 sensor failure
- 1/2 O2 sensor heater element failure
- 1/2 O2S heater failure does not reoccur
