P0113

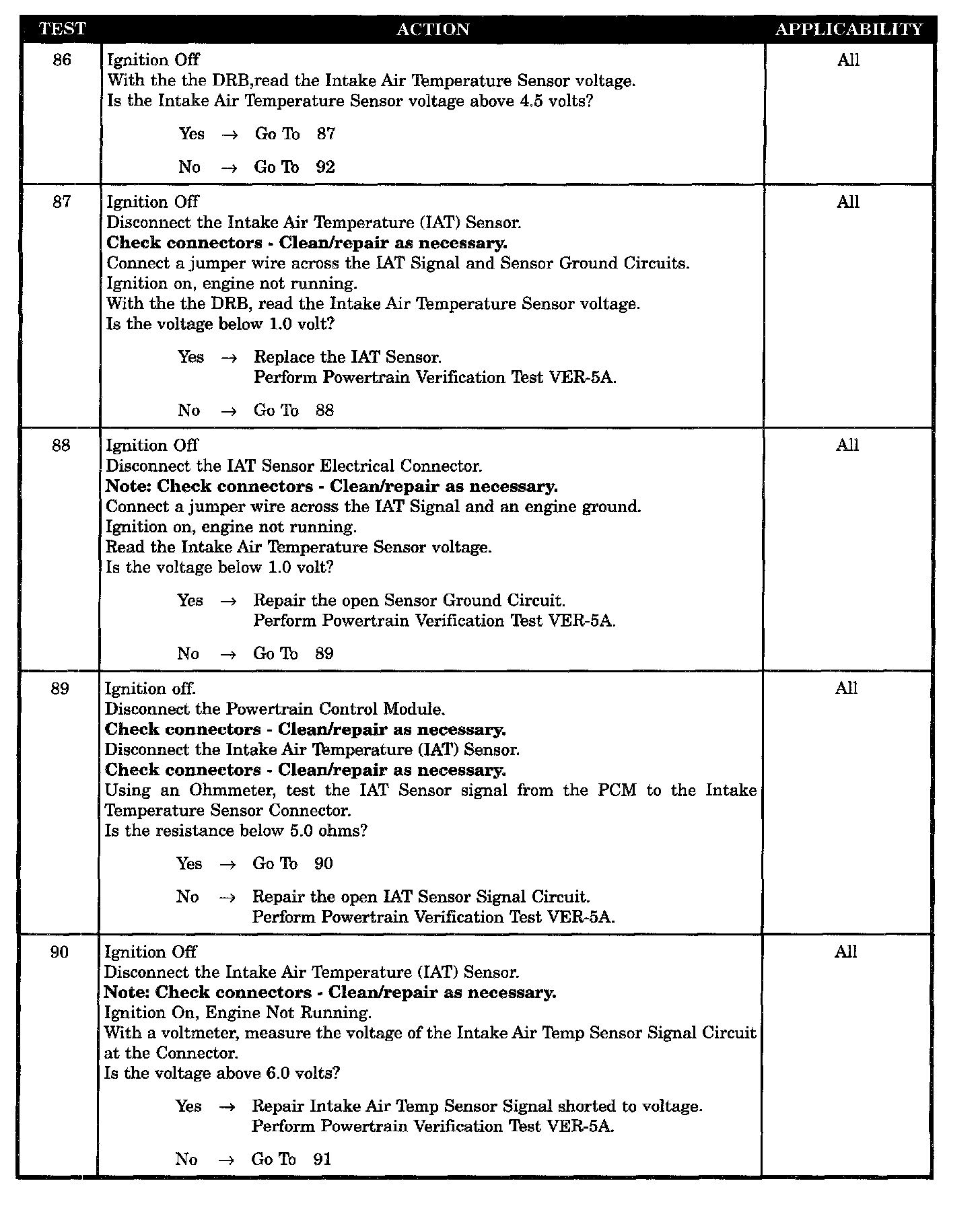

Tests 86 - 90:

Tests 91 - 93:

SYMPTOM
P-0113 INTAKE AIR TEMPERATURE SENSOR VOLTAGE HIGH

WHEN MONITORED
With the ignition on and the engine running.

SET CONDITION
the intake air sensor circuit voltage at PCM cavity 37 goes above 4.9 volts.

POSSIBLE CAUSES
- IAT sensor defective
- IAT sensor signal circuit open
- Sensor ground circuit open
- IAT sensor wiring harness intermittent defect
- IAT sensor wiring harness observable defect
- PCM (intake air tmp sen) defective
- Intake air temp sensor signal circuit shorted to voltage
