P0106

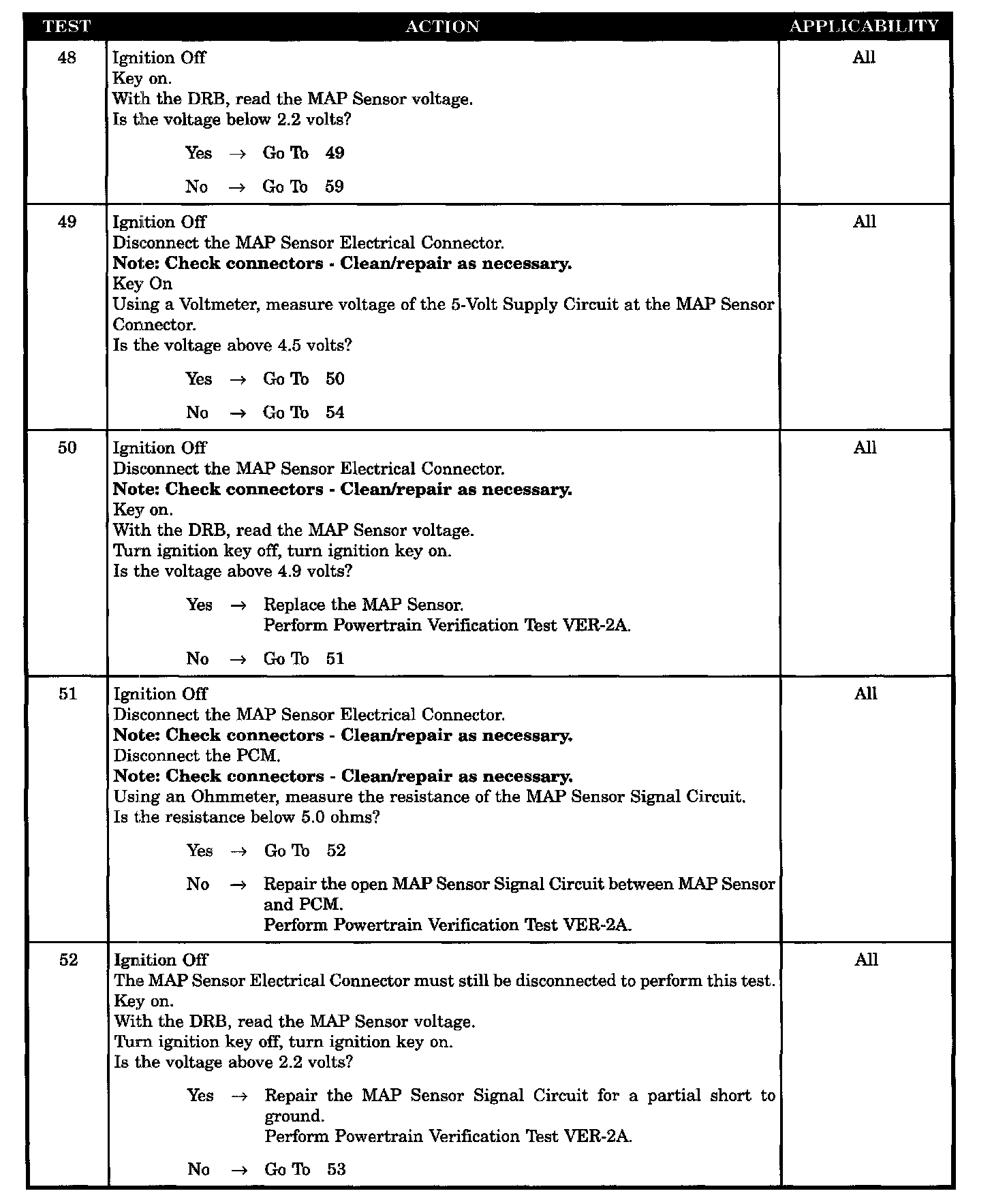

Tests 48 - 52:

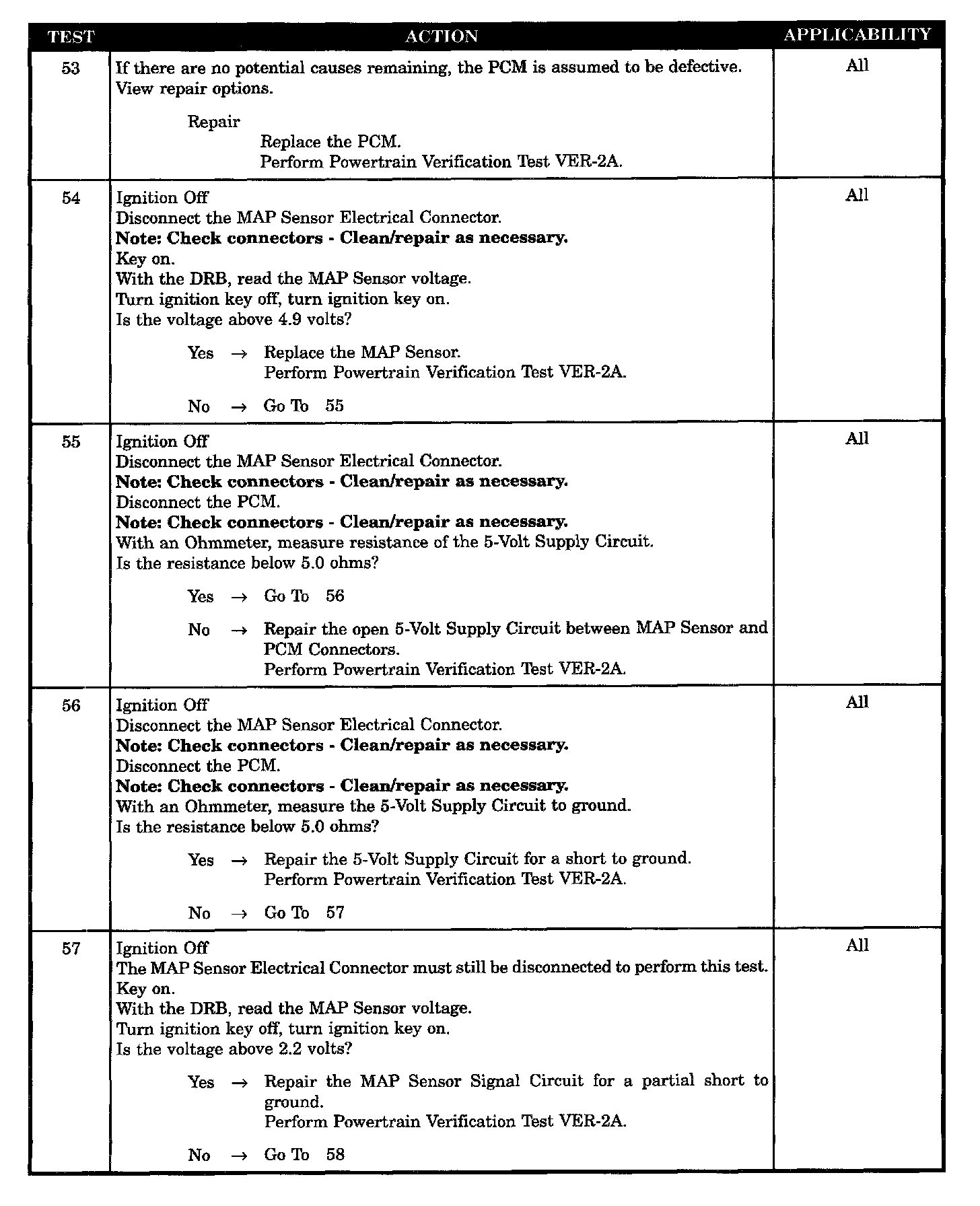

Tests 53 - 57:

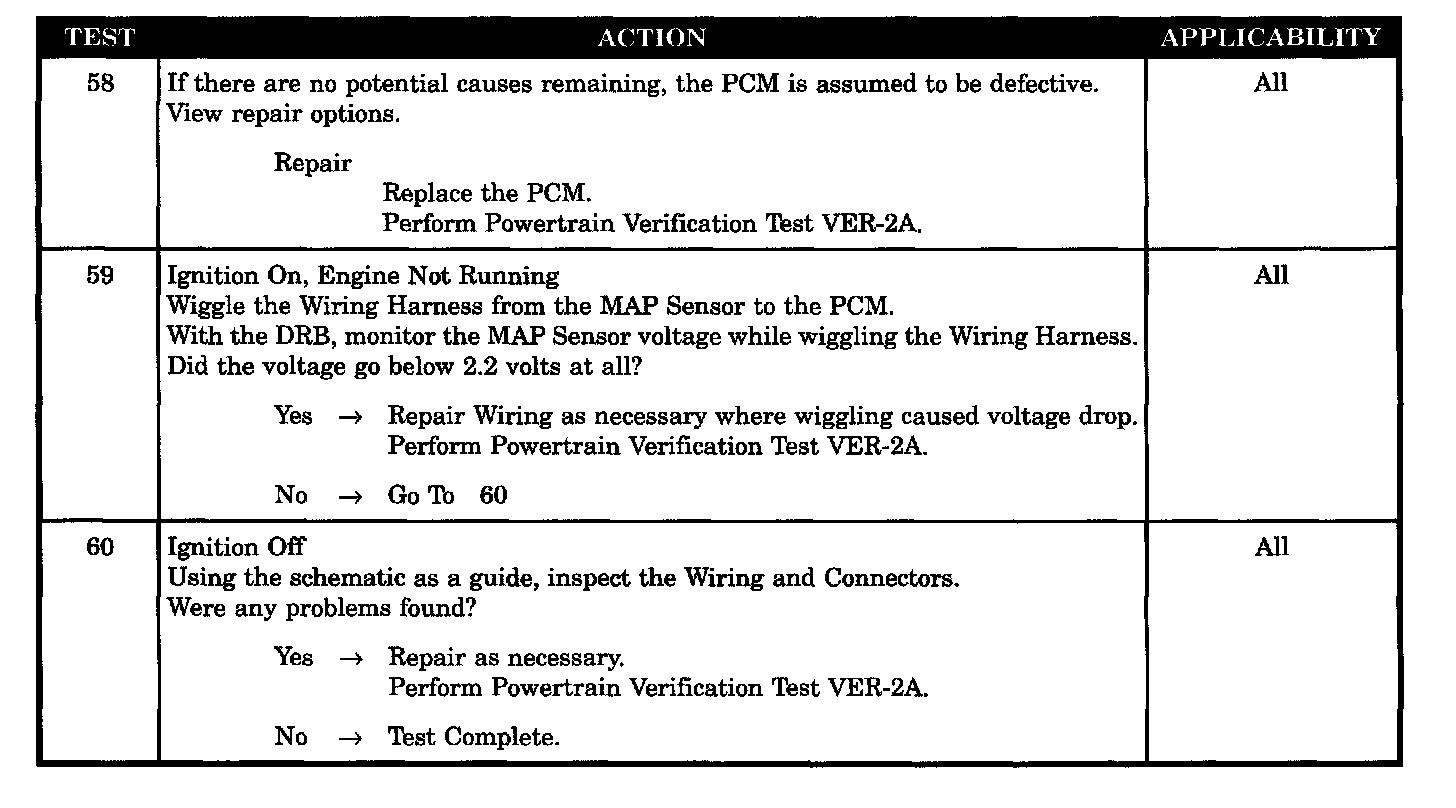

Tests 58 - 60:

SYMPTOM
P-0106 BAROMETRIC PRESSURE OUT OF RANGE

WHEN MONITORED
With the ignition key on at less than 350 milliseconds and engine speed at less than 255 RPM.

SET CONDITION
The PCM senses the voltage from the MAP sensor to be less than 2.196 volts but above 0.019 volt for 300 milliseconds.

POSSIBLE CAUSES
- MAP sensor defect
- 5-volt supply circuit open
- 5-volt supply circuit short to ground
- MAP sensor signal circuit open
- MAP sensor signal circuit short to ground
- Wiring and connectors inter defect
- Wiring and connectors observable defect
- PCM defective
