Serial Link External Failure-Sending Secret Key to PCM

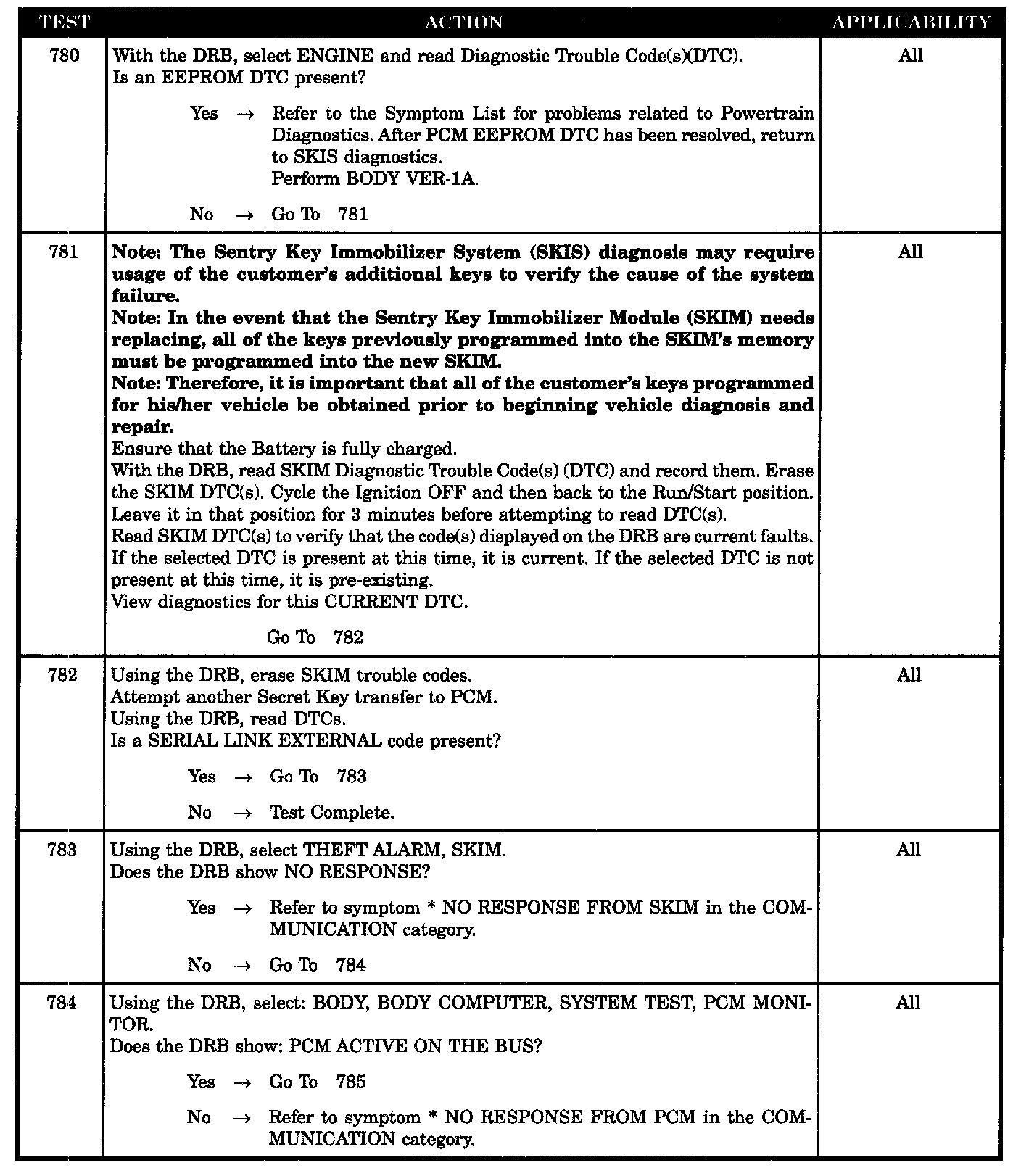

Tests 780 - 784:

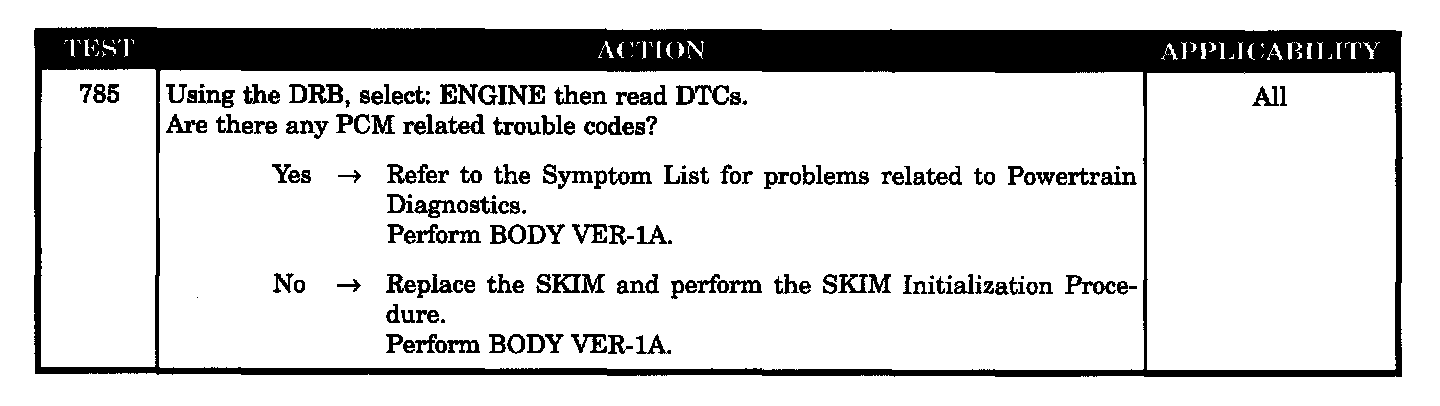

Test 785:

SYMPTOM
SERIAL LINK EXTERNAL FAILURE-SENDING SECRET KEY TO PCM

WHEN MONITORED
At ignition ON, after ignition ON during any rolling code handshake that occurs with the PCM due to a SKIM reset or a PCM reset, or during "Secret Key" transfers to the PCM.

SET CONDITION
This condition is set when the SKIM does not receive an expected bus message transmission acknowledgment from the PCM after 3 transmit attempts.

POSSIBLE CAUSES
- PCM EEPROM DTC present
- Skim PCM problem
- Skim unidentified problem
