PCM Status Failure

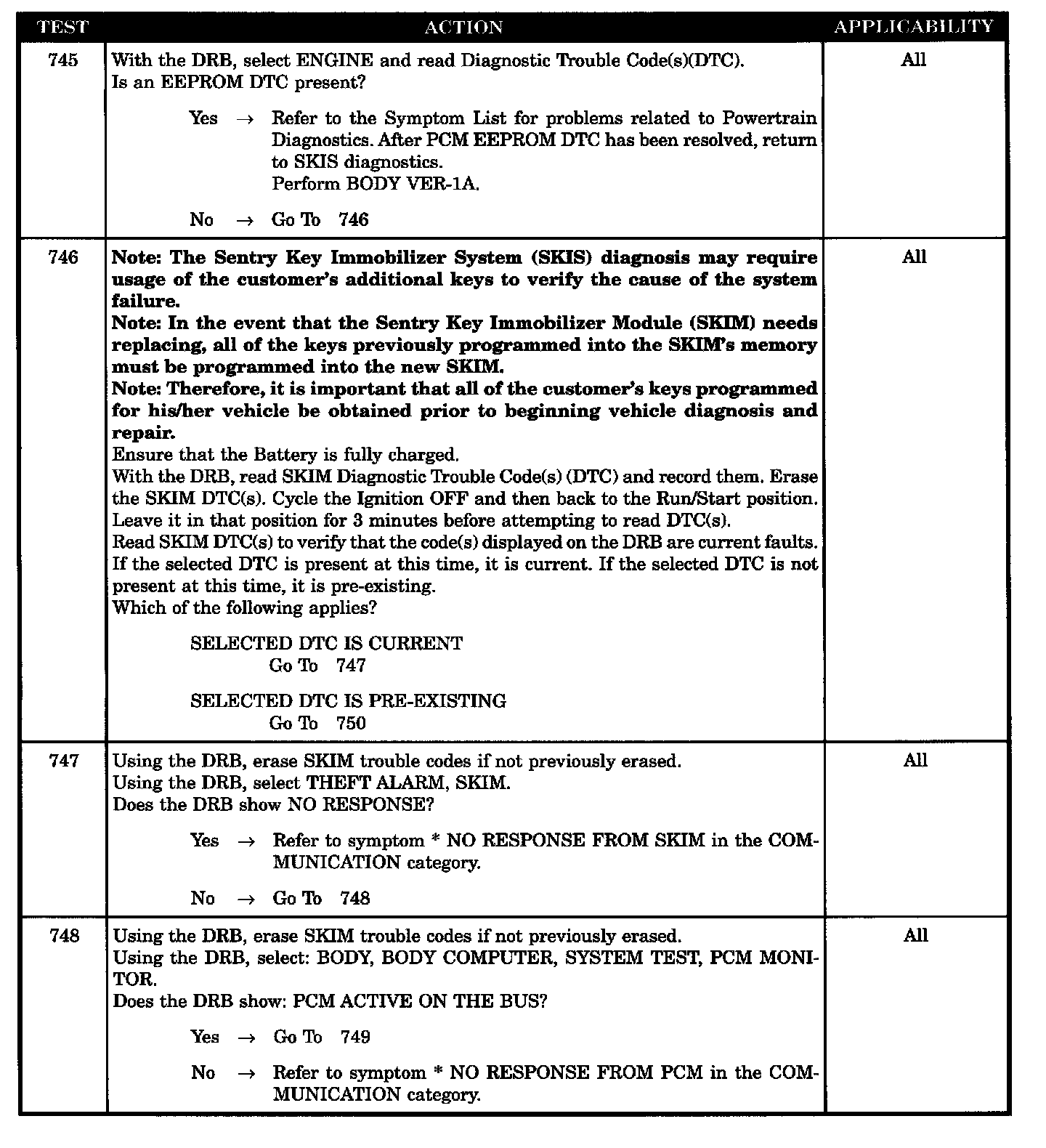

Tests 745 - 748:

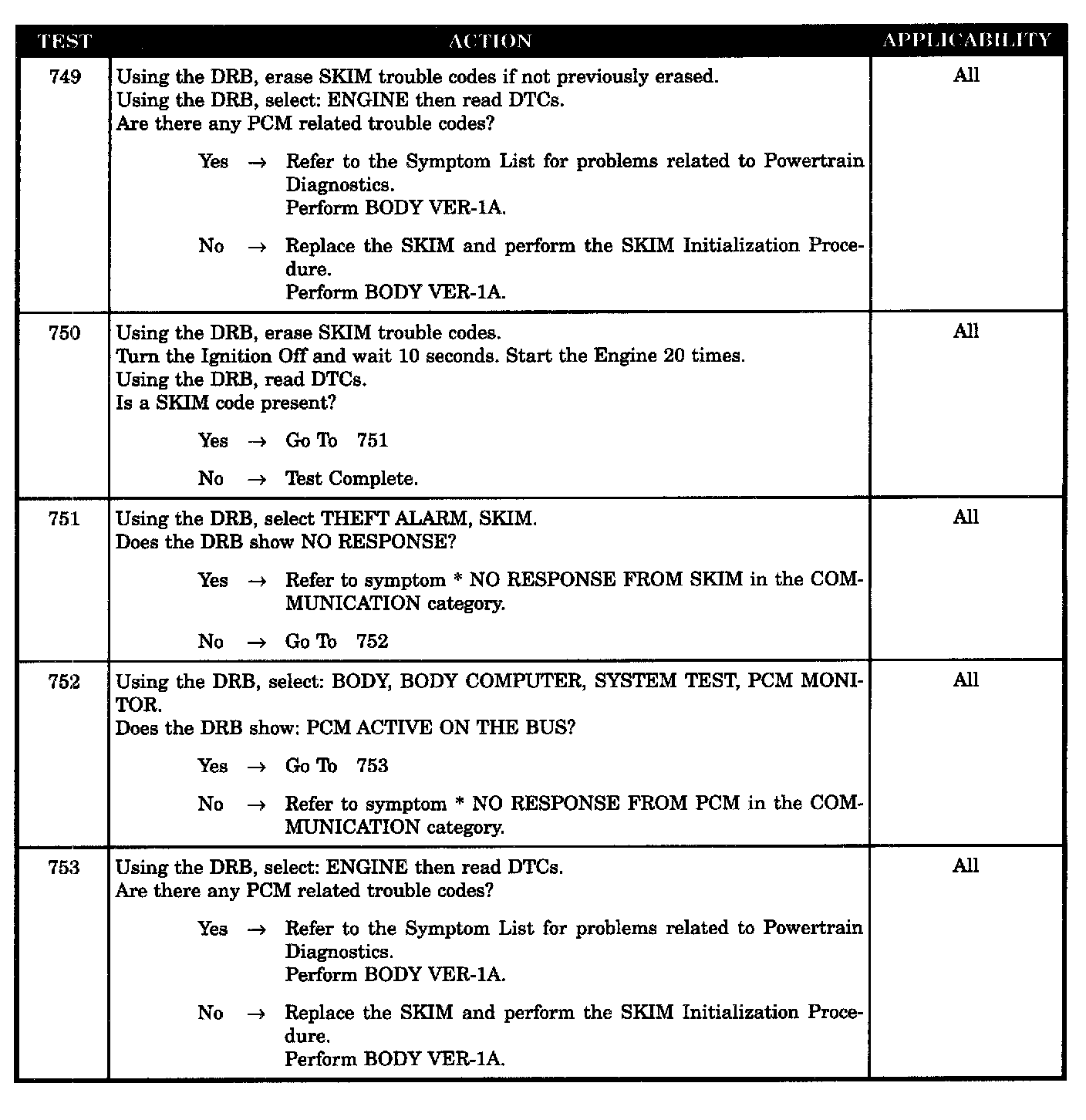

Tests 749 - 753:

SYMPTOM
PCM STATUS FAILURE

WHEN MONITORED
This condition is monitored at ignition ON and continuously during an ignition on cycle.

SET CONDITION
This condition exists when a PCM STATUS bus message was not received from the PCM.

NOTE:
Failure maturity time is 20 seconds.

POSSIBLE CAUSES
- PCM EEPROM DTC present
- Skim communication link failure
- Skim PCM failure
- Skim PCM problem
- Skim unidentified problem
