Speed Control SET/RESUME Switch
Speed Control SET/RESUME Switch

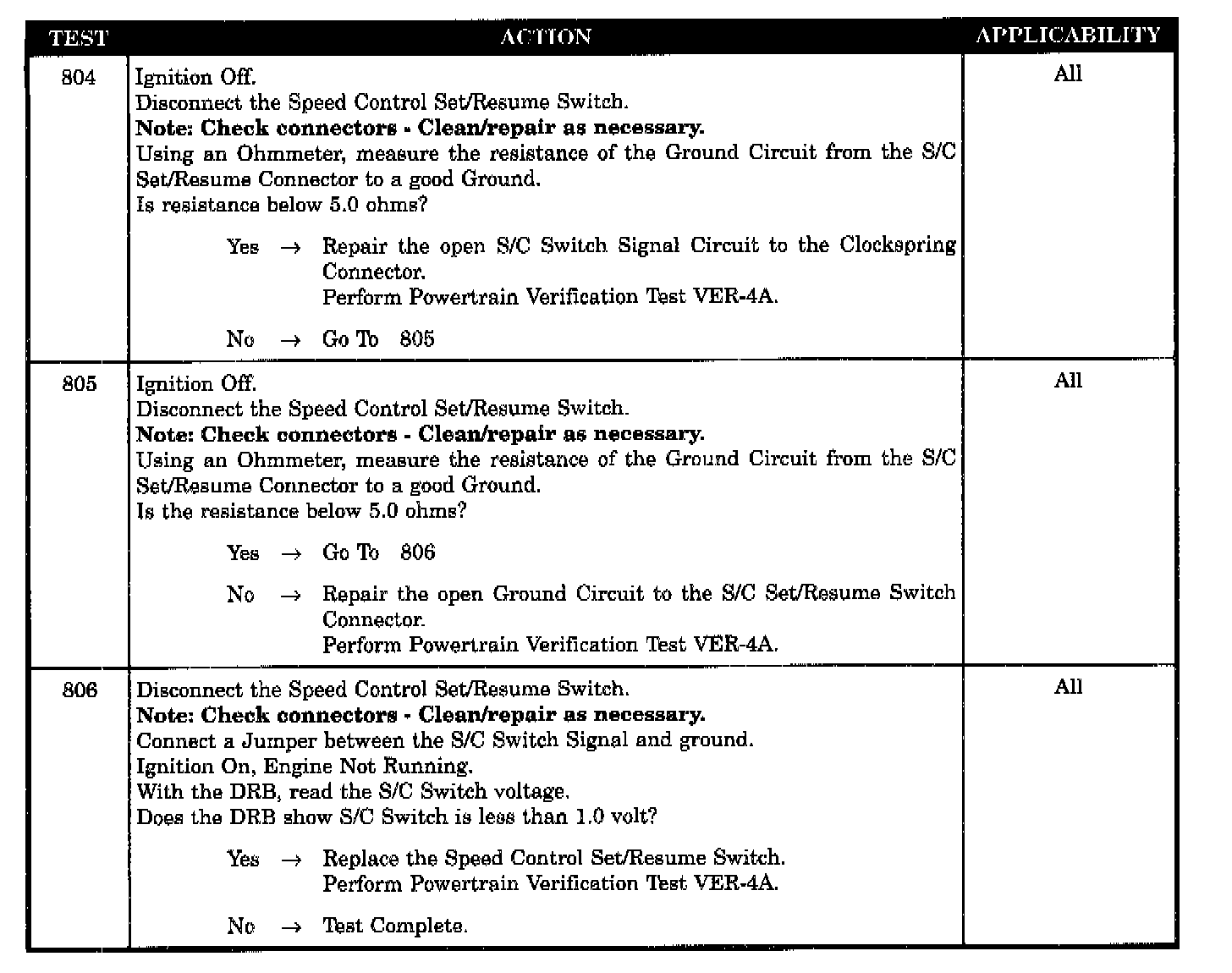

Tests 804 - 806:
SYMPTOM
SPEED CONTROL SET/RESUME SWITCH
POSSIBLE CAUSES
-
S/C sw signal ckt to clockspring conn open
-
Grnd ckt to S/C set/resume sw con open
-
Speed control set/resume switch defective
