Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> Checking Park/Neutral POS Switch

Checking Park/Neutral POS Switch

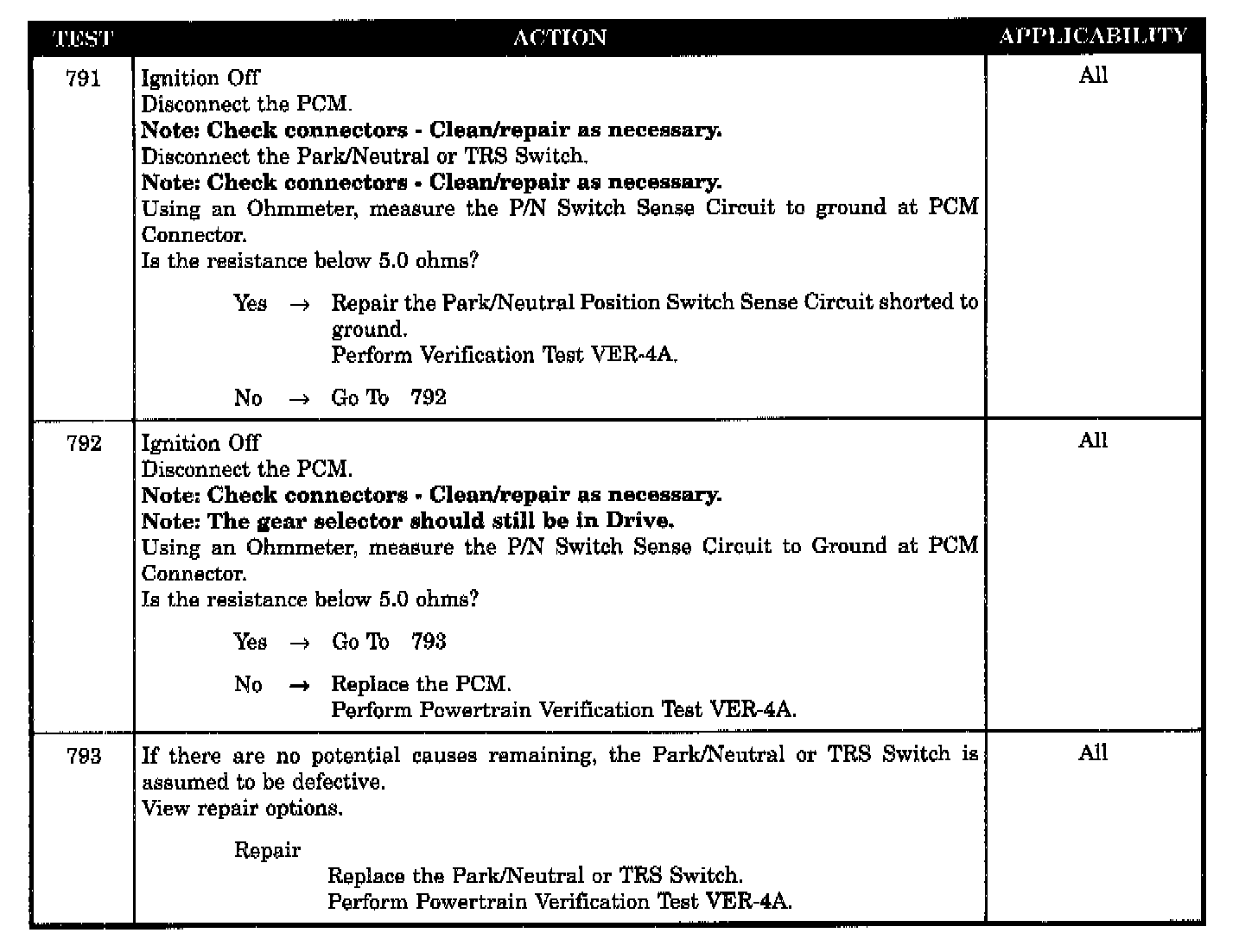

Tests 791 - 193:




SYMPTOM
PARK/NEUTRAL POS SWITCH

POSSIBLE CAUSES
- Park/neutral position sense ckt shorted to gnd
- Park/neutral position switch defective
- PCM defective
