Checking Brake Switch Sense

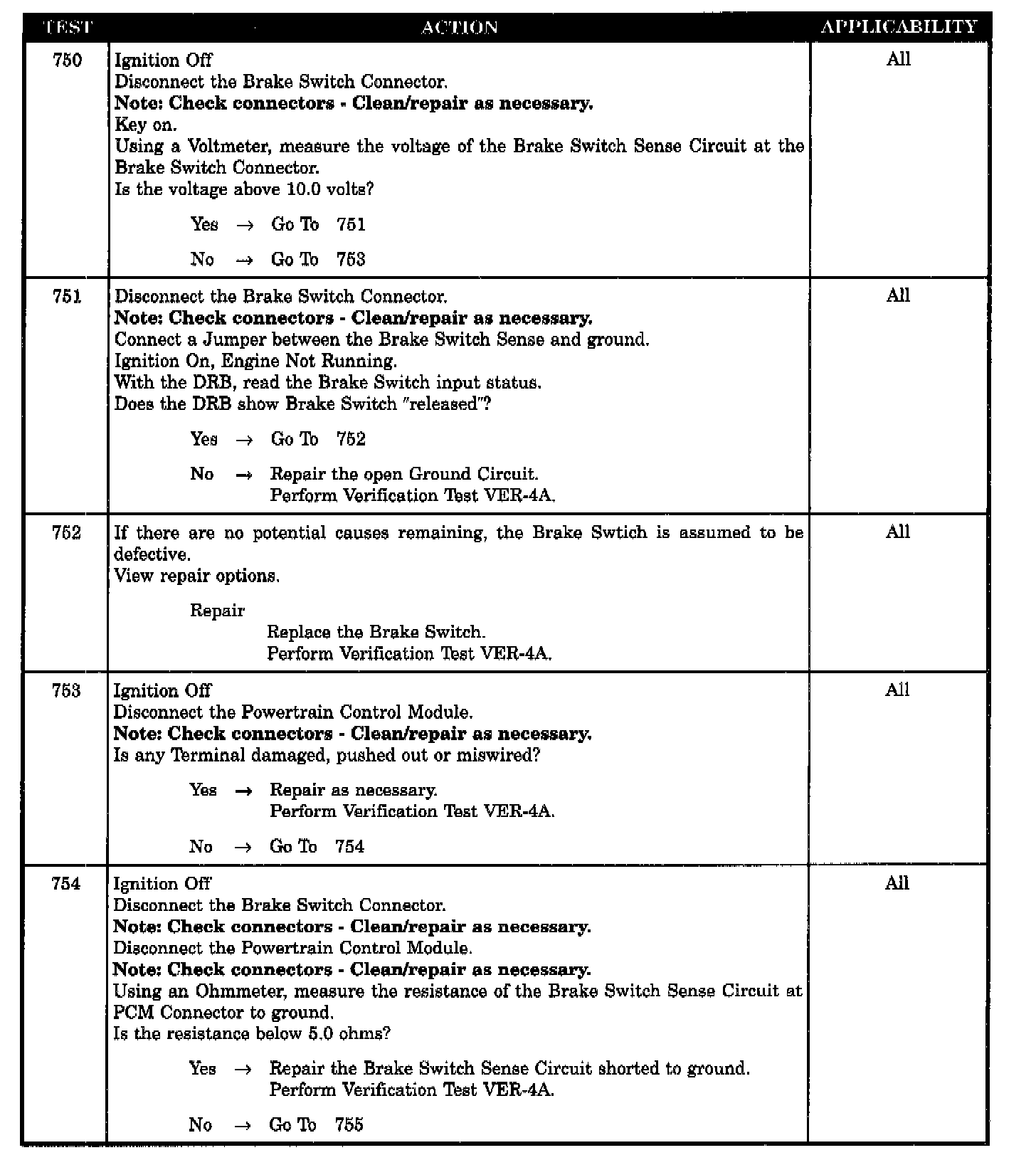

Tests 750 - 754:

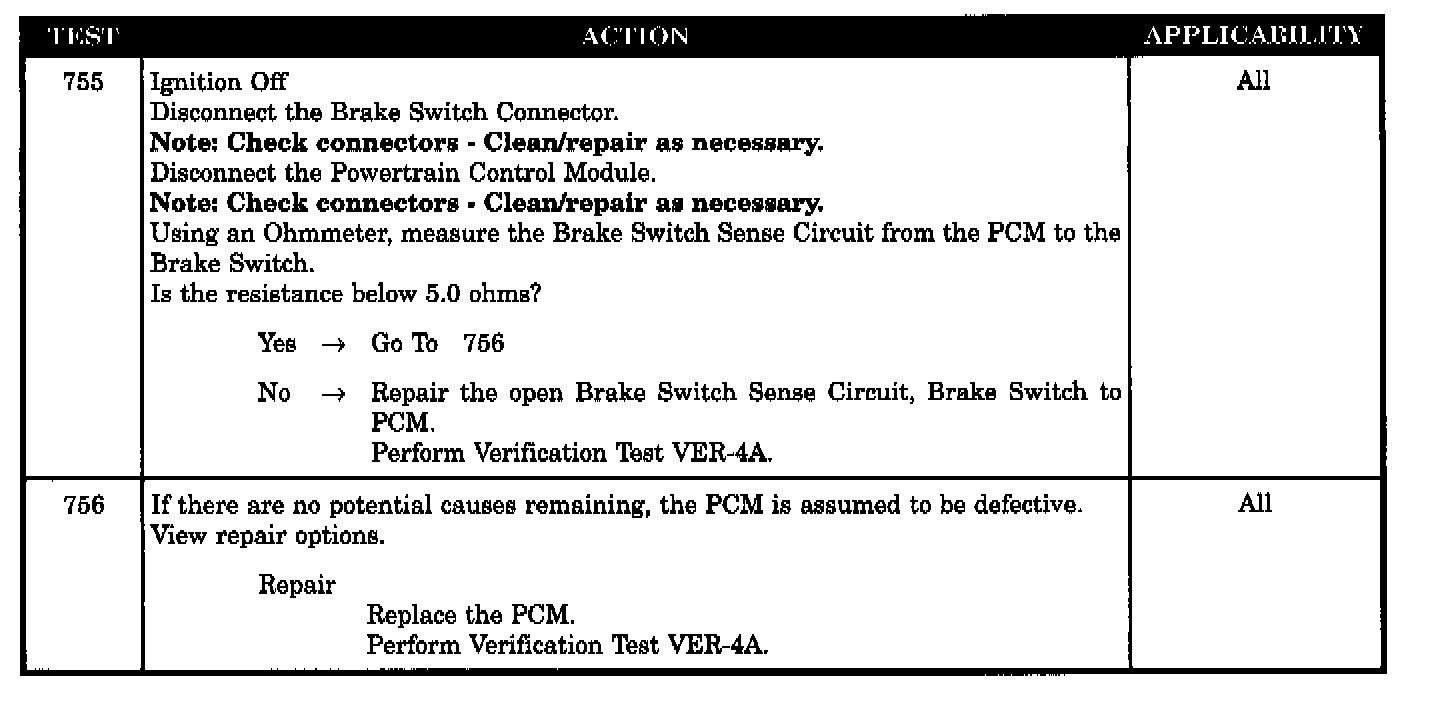

Tests 755 - 756:

SYMPTOM
BRAKE SWITCH SENSE

POSSIBLE CAUSES
- Brake switch sense
- Ground circuit open
- PCM connector terminal observable defect
- Brake switch defective
- Brake switch sense circuit open
- Brake switch sense circuit shorted to ground
- PCM defective (brake switch sense)
