Doors Failing to Unlock From Any Switch
Doors Failing to Unlock From Any Switch

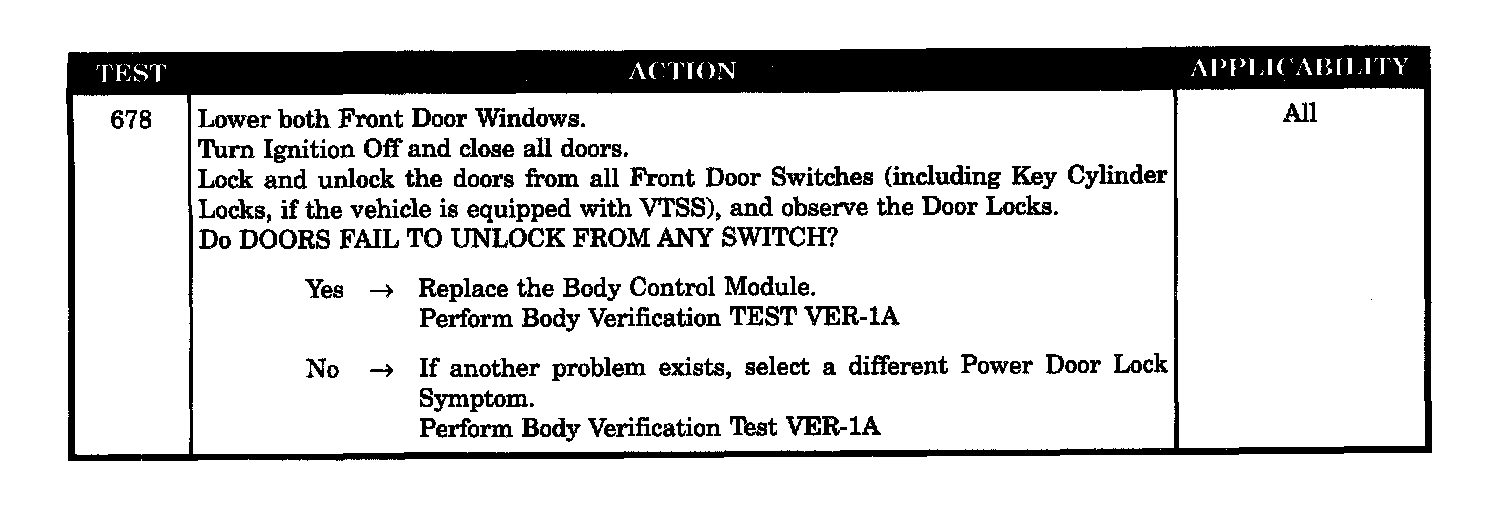

Test 678:
SYMPTOM
* DOORS FAILING TO UNLOCK FROM ANY SWITCH
POSSIBLE CAUSES
-
BCM defective door unlock driver circuit
-
Intermittent symptom selected
