Door Lock Inhibit Circuit Inoperative

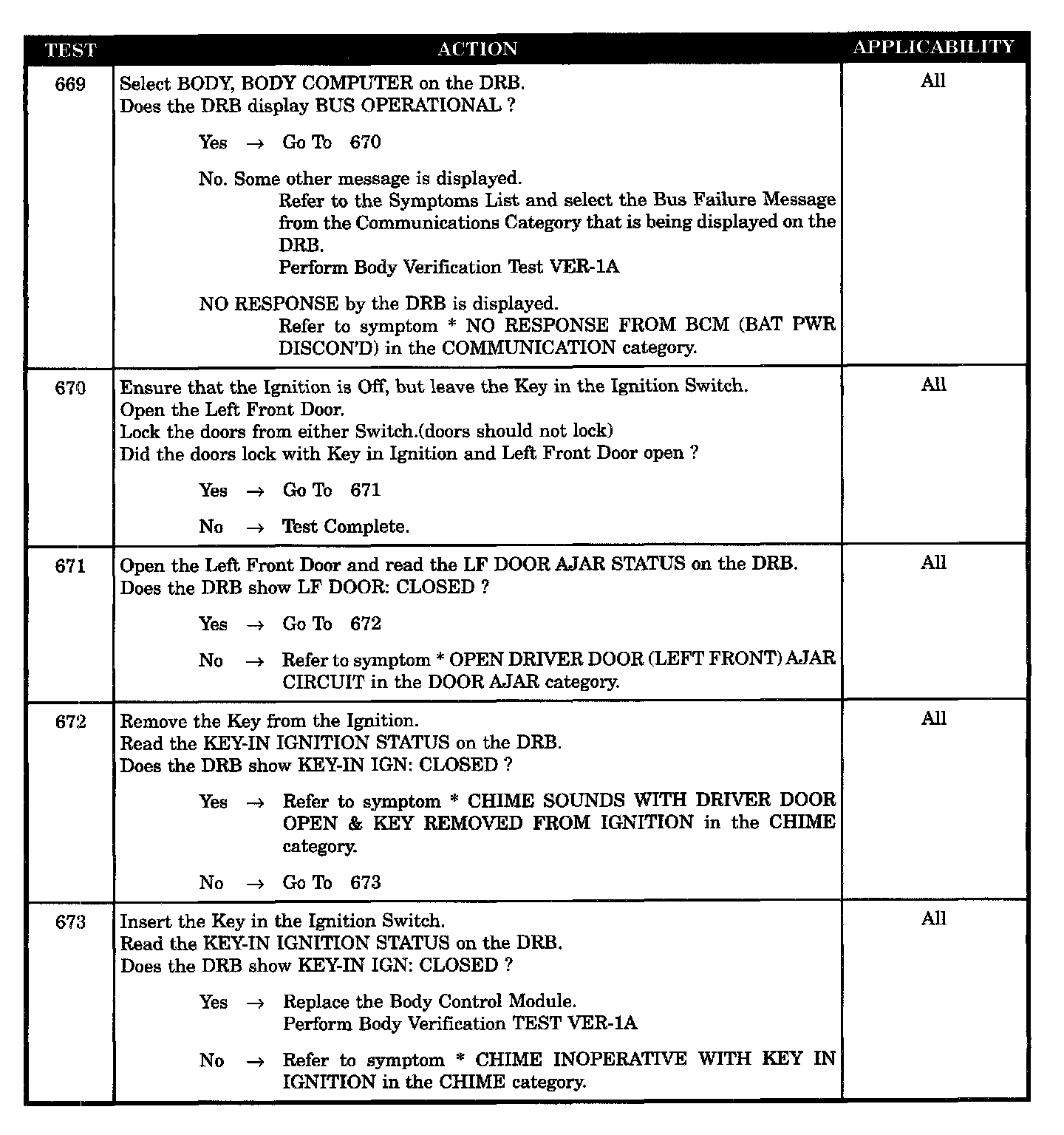

Tests 669 - 673:




SYMPTOM
* DOOR LOCK INHIBIT CIRCUIT INOPERATIVE

POSSIBLE CAUSES
- Link to body communication bus inoperative
- Key-in ignition switch open
