Illuminated Entry Inoperative

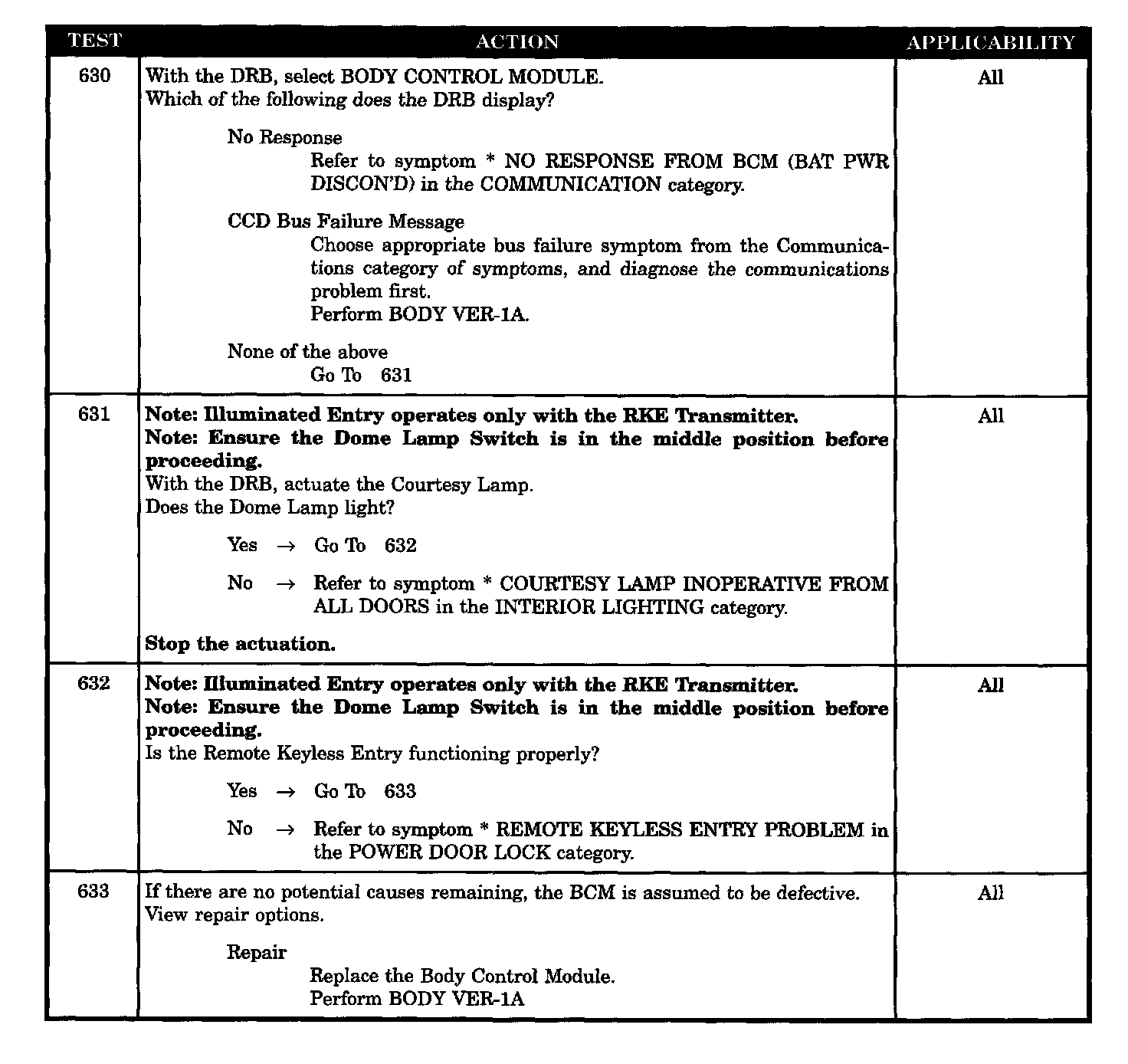

Tests 630 - 633:
SYMPTOM
* ILLUMINATED ENTRY INOPERATIVE
POSSIBLE CAUSES
-
No response(BCM)/CCD bus failure
-
BCM defective (RKE function) by default
