Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Interior Lighting System >> Courtesy Lamp Inoperative With Dome Lamp SW

Courtesy Lamp Inoperative With Dome Lamp SW

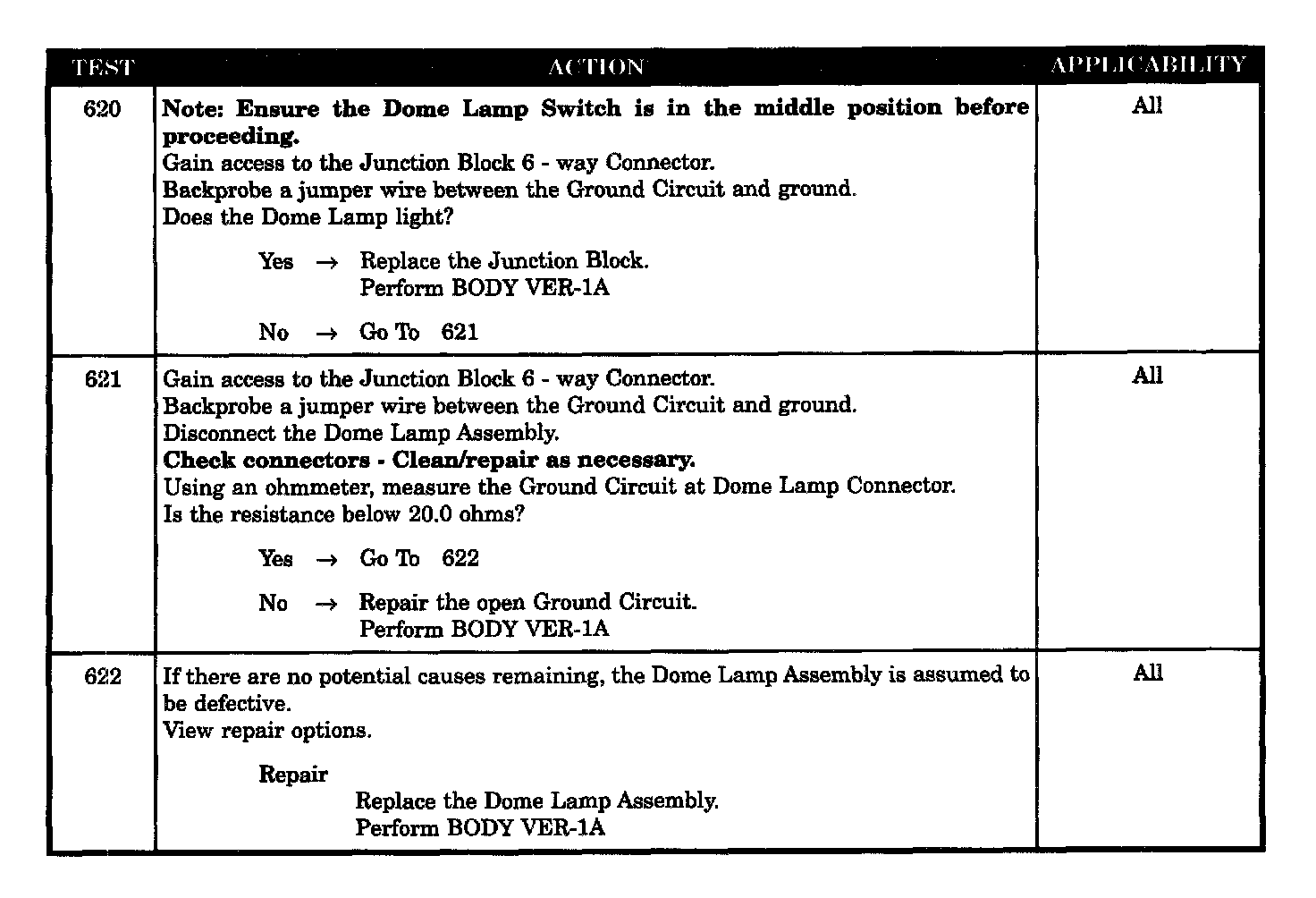

Tests 620 - 622:




SYMPTOM
* COURTESY LAMP INOPERATIVE WITH DOME LAMP SW

POSSIBLE CAUSES
- Dome lamp assembly defective (open) by default
- Junction block defective - ground circuit joint
- Courtesy lamp ground circuit open
