Temperature Gauge

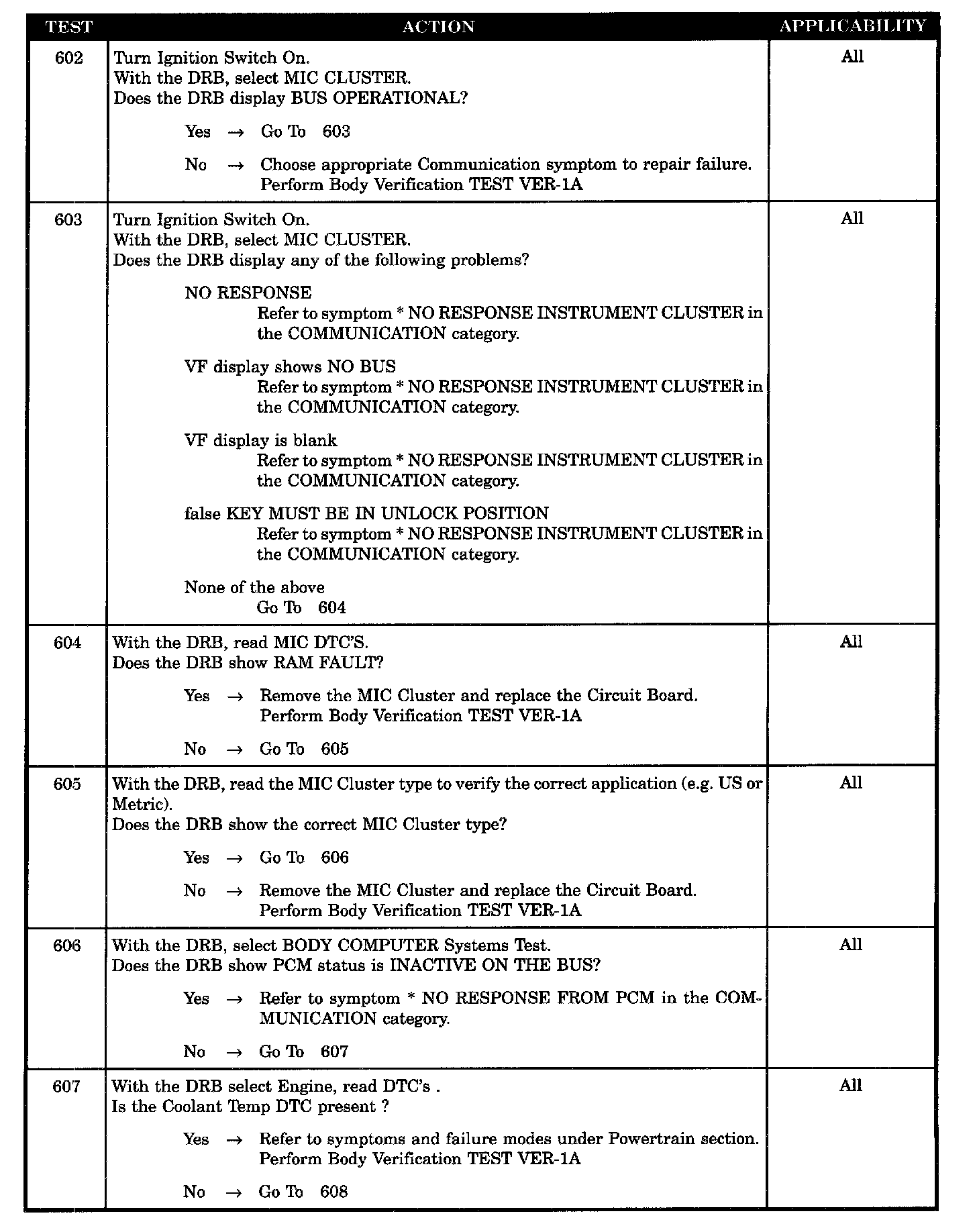

Tests 602 - 607:

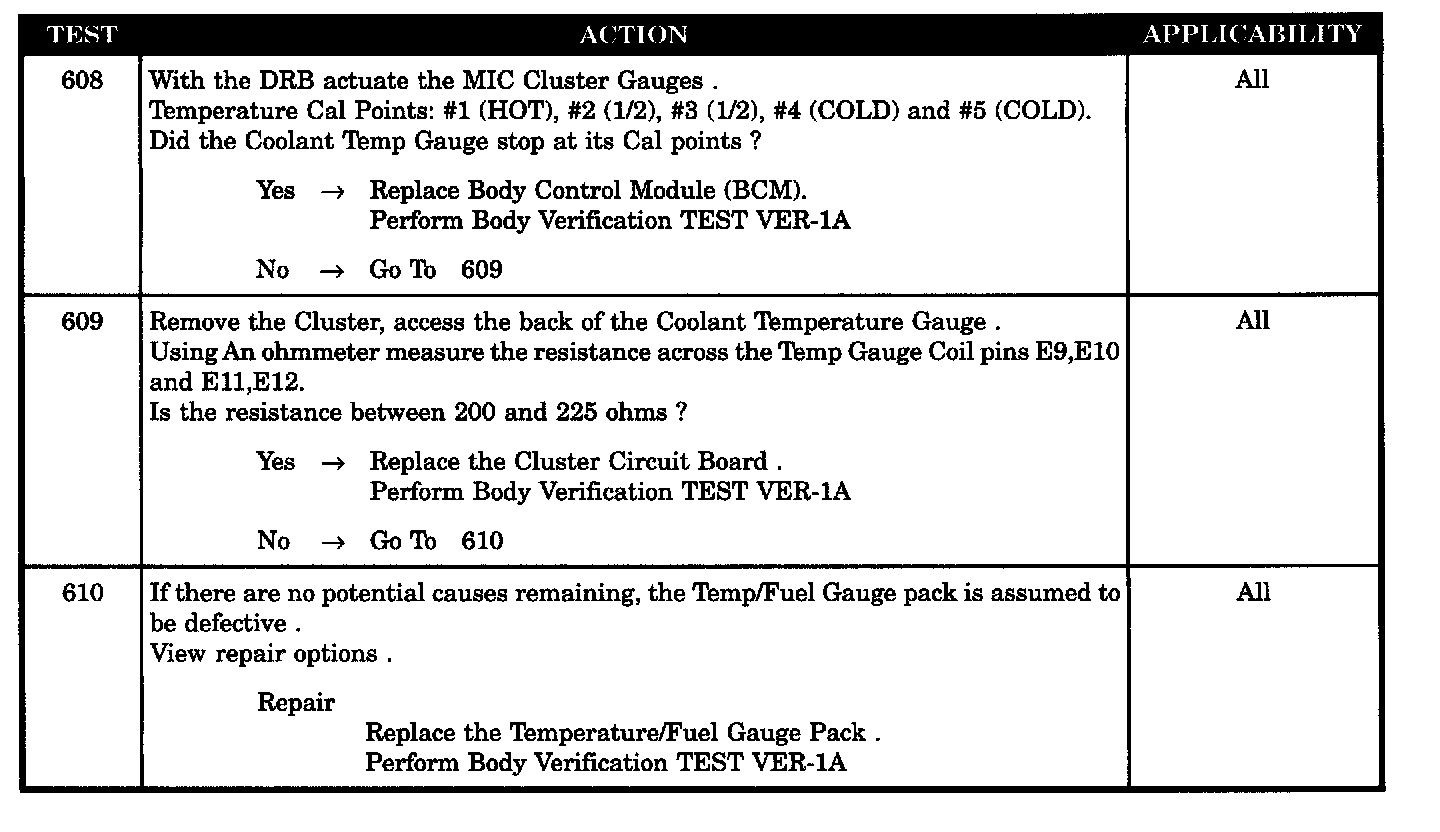

Tests 608 - 610:

SYMPTOM
* TEMPERATURE GAUGE

POSSIBLE CAUSES
- DRB displays RAM fault
- MIC cluster mismatch
- TEMP coolant DTC's present
- BCM temperature gauge input defective
- Cluster circuit board defective
- TEMP/fuel gauge pack defective
- DRB shows bus operational failure
