Any or All Cluster Warning Lamps

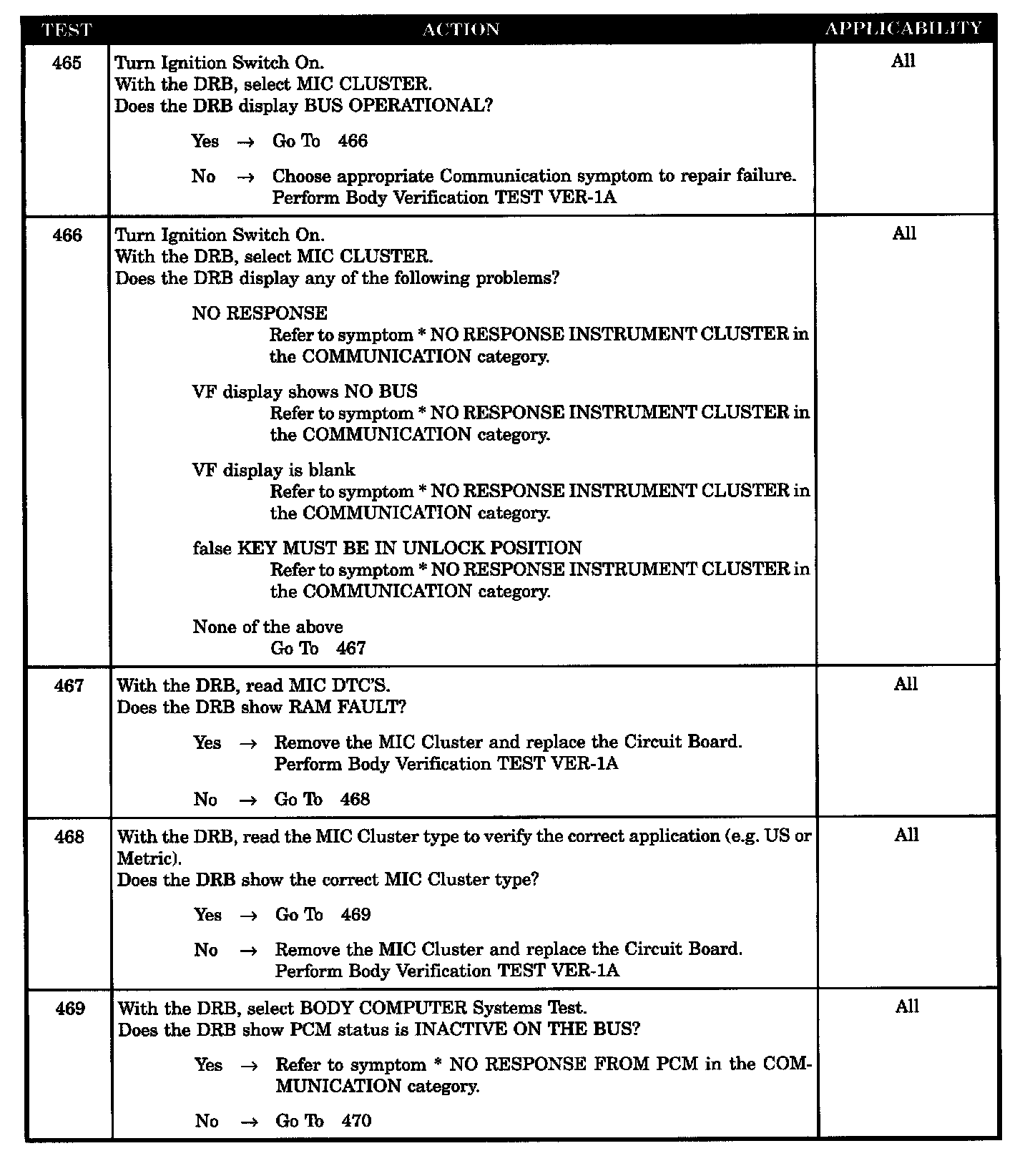

Tests 465 - 469:

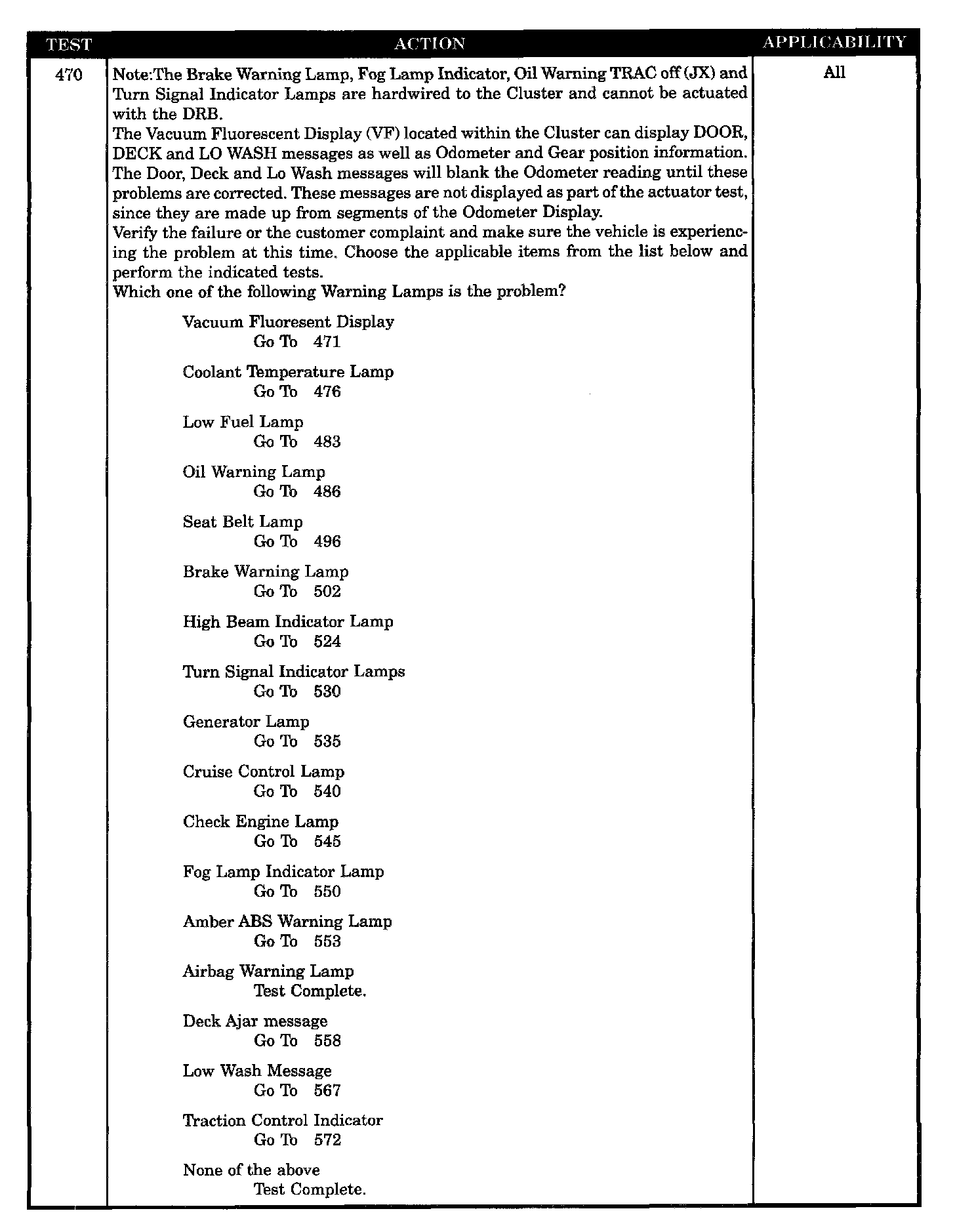

Test 470:

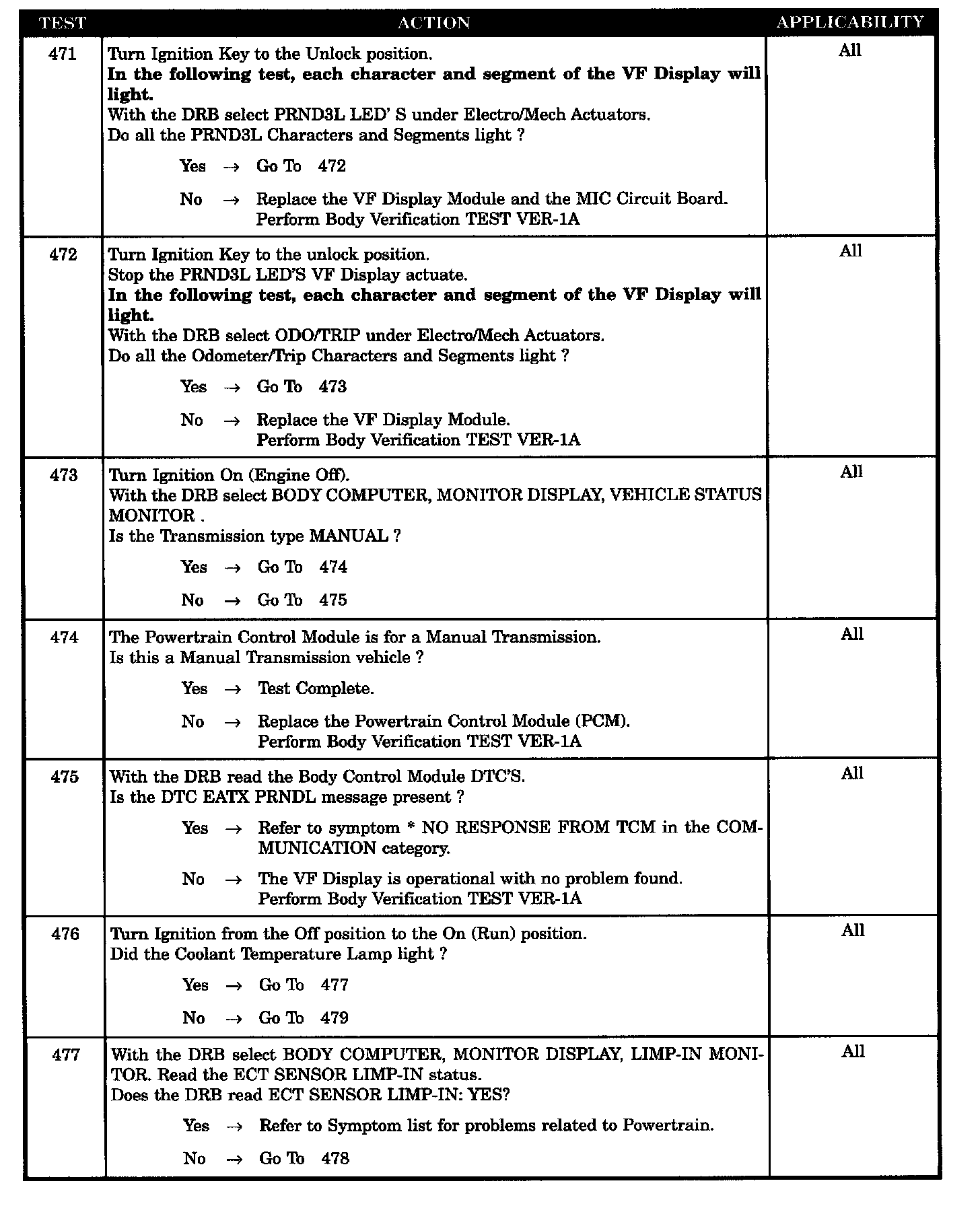

Tests 471 - 477:

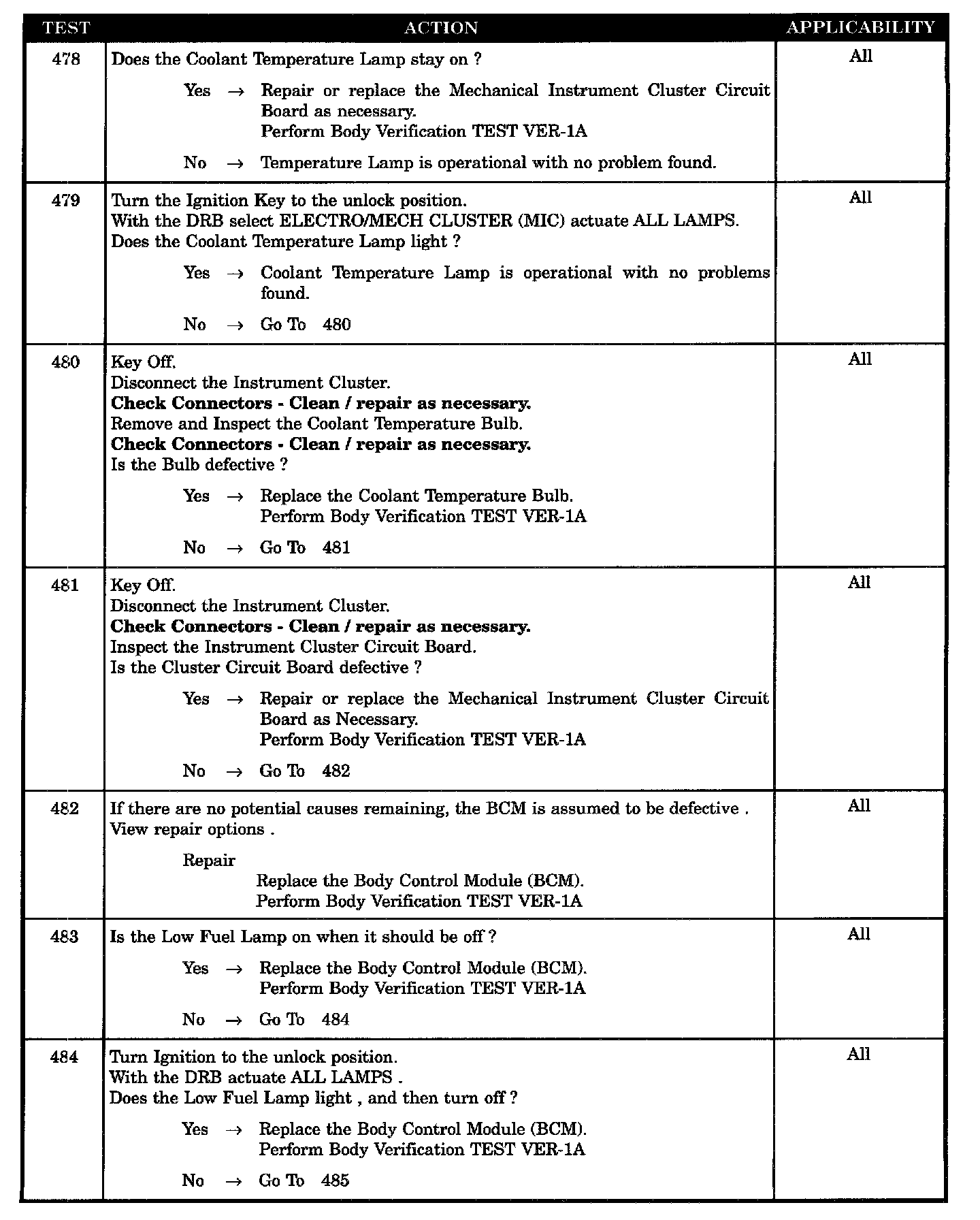

Tests 478 - 484:

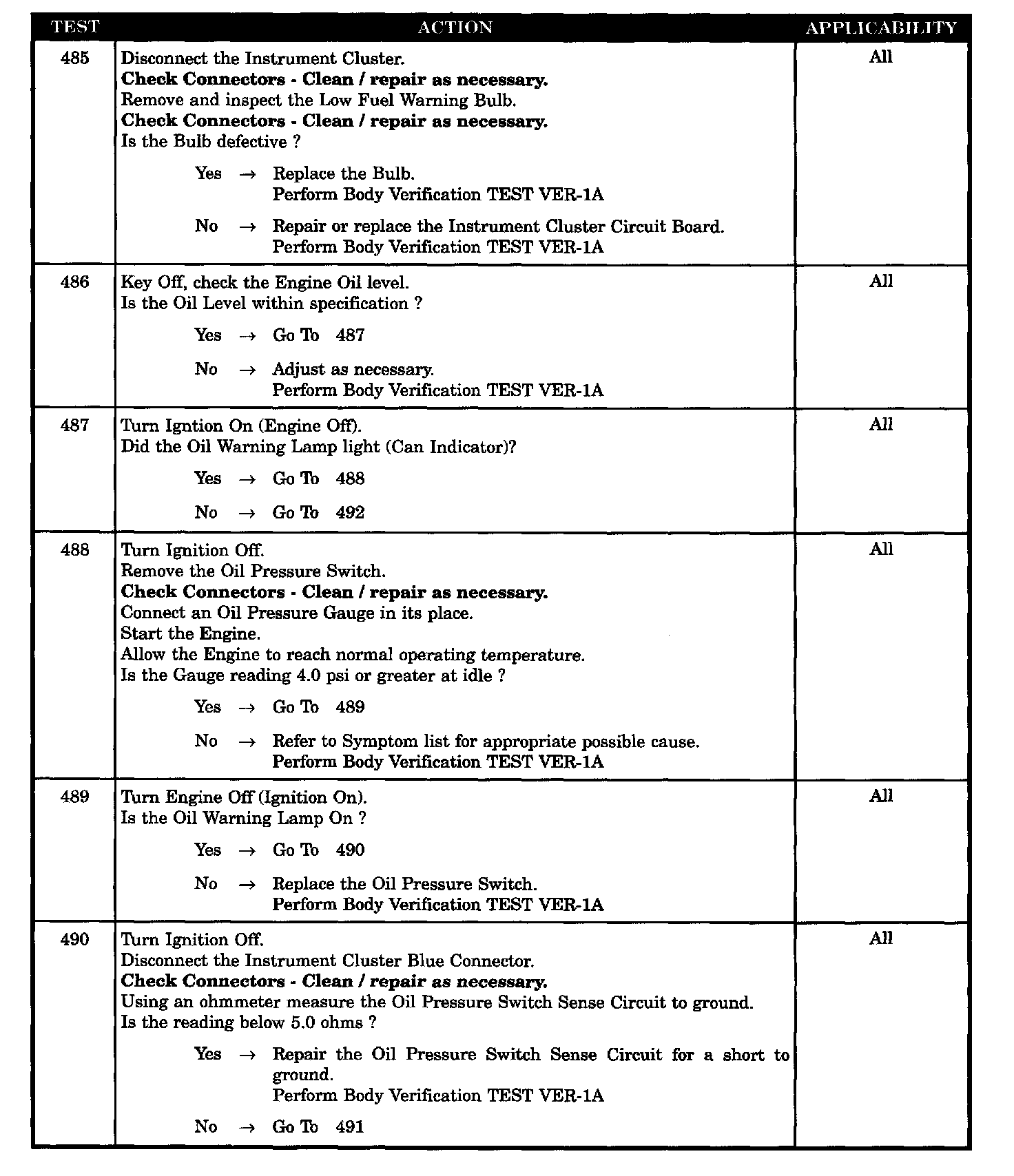

Tests 485 - 490:

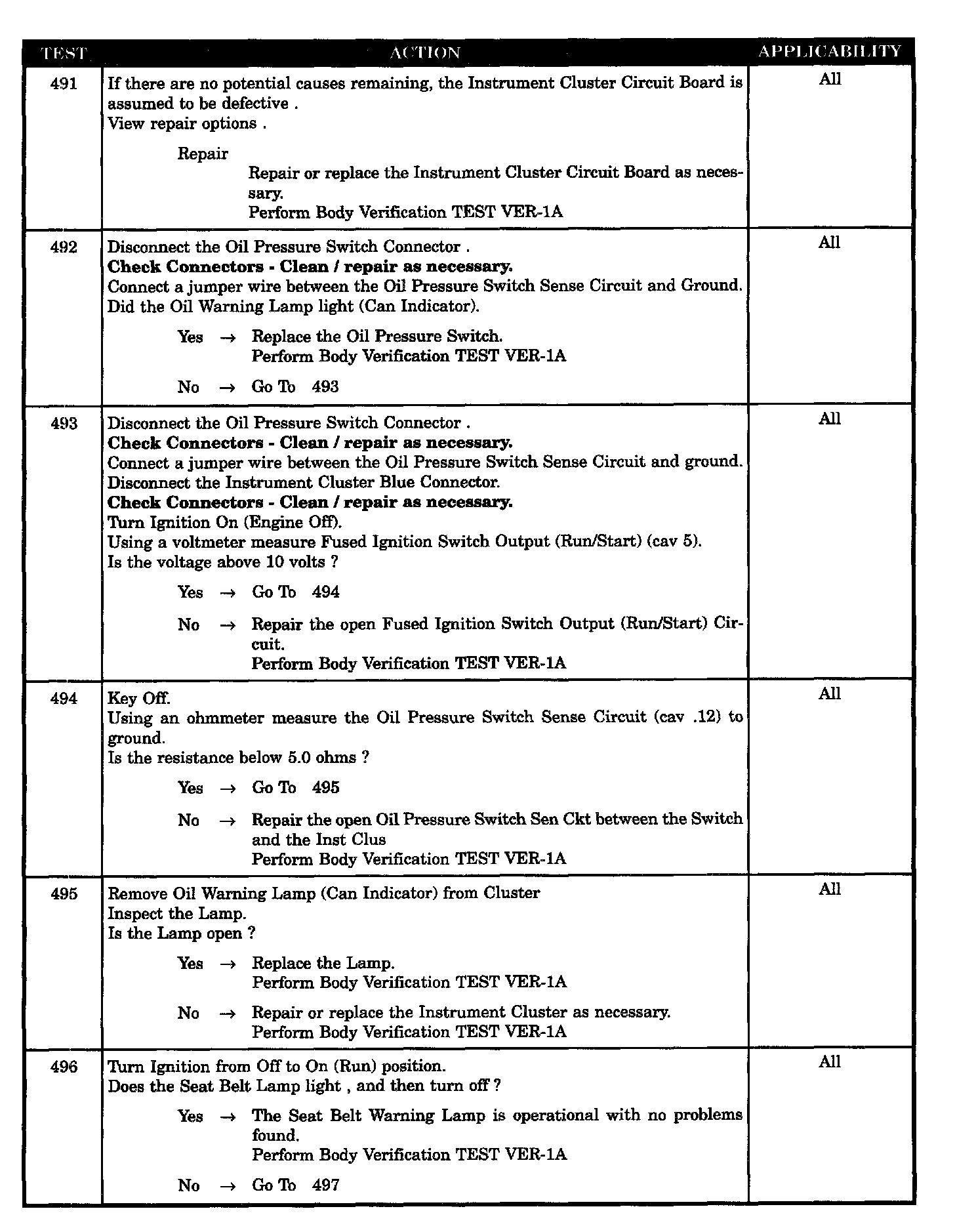

Tests 491 - 496:

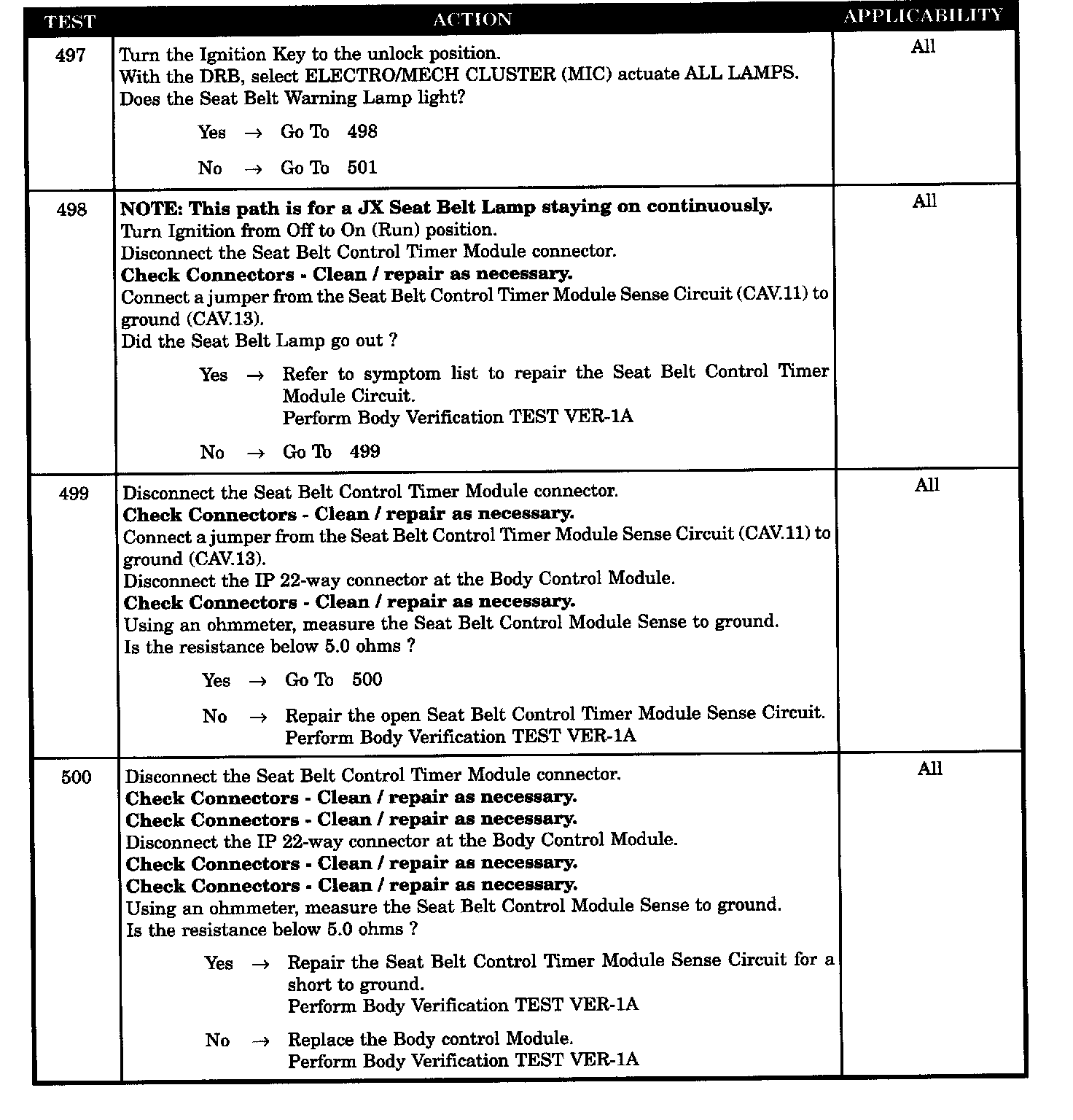

Tests 497 - 500:

Tests 501 - 507:

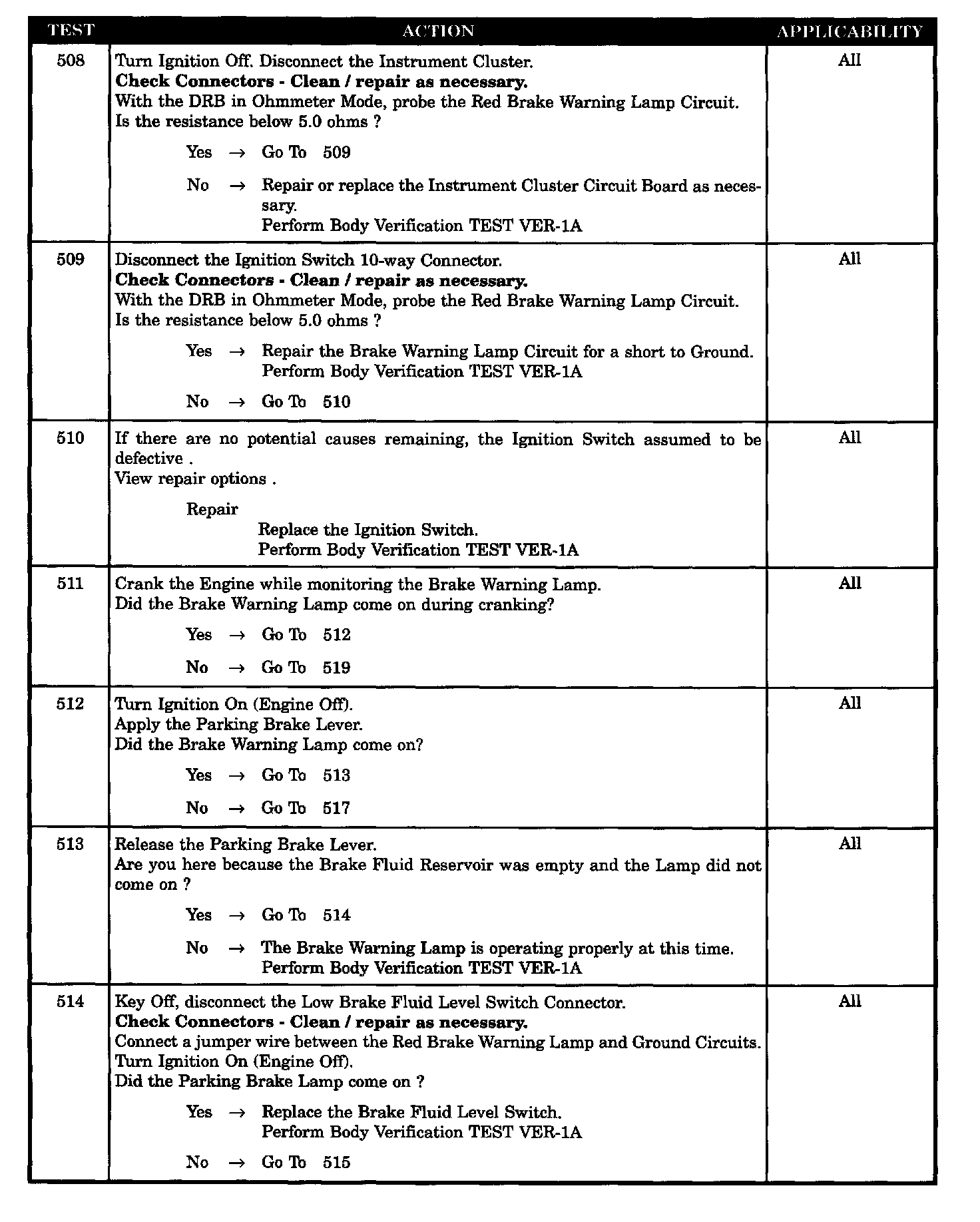

Tests 508 - 514:

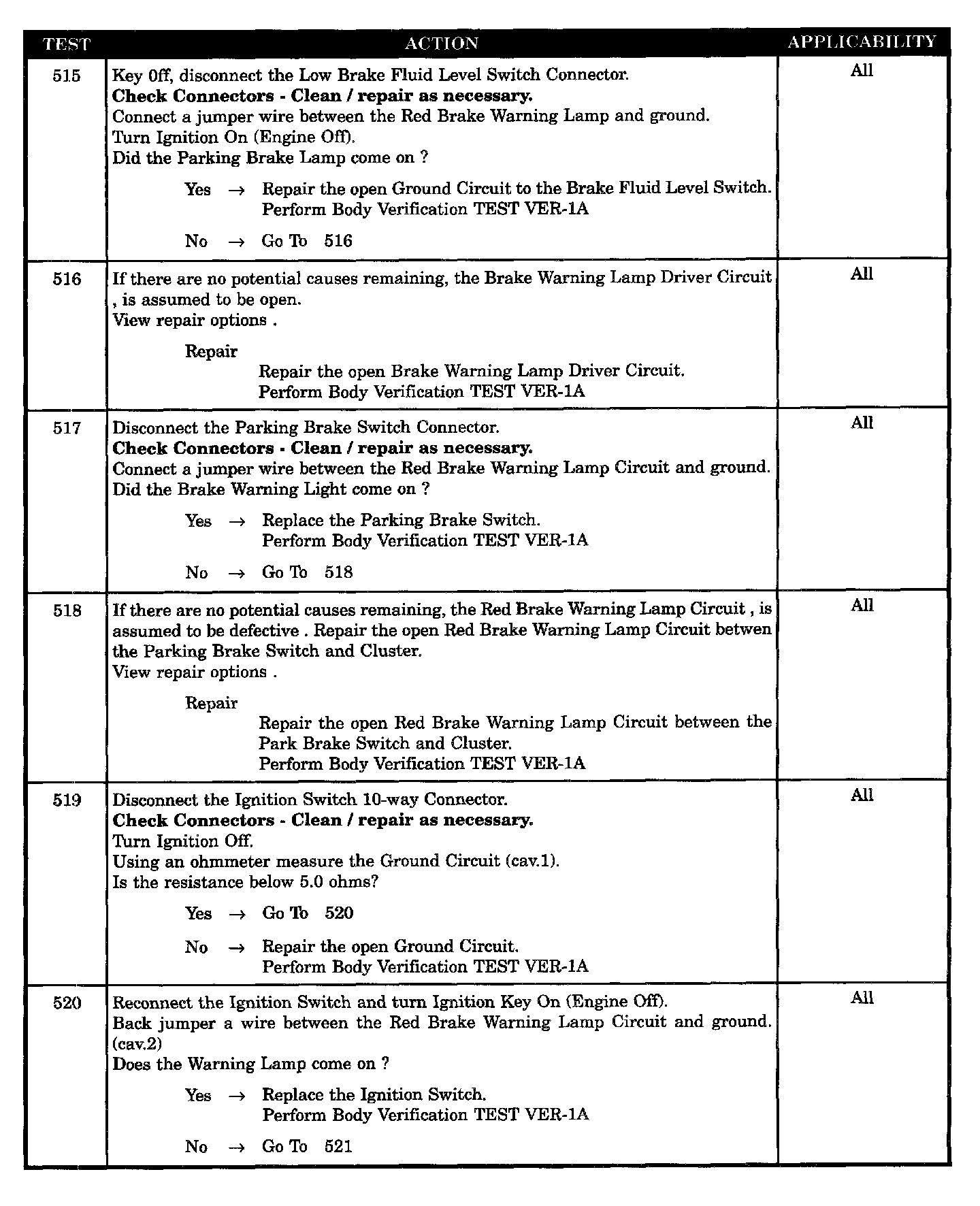

Tests 515 - 520:

Tests 521 - 527:

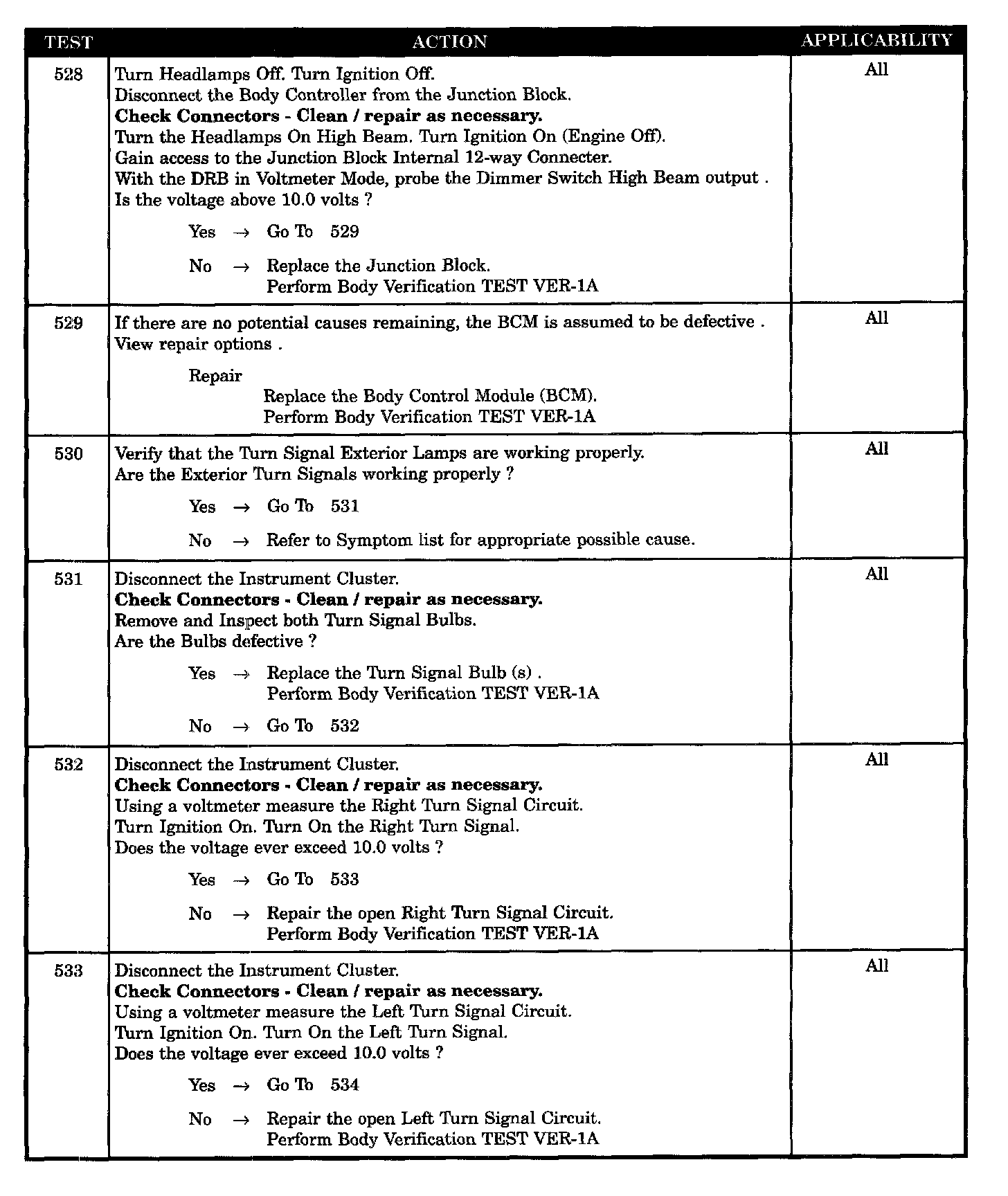

Tests 528 - 533:

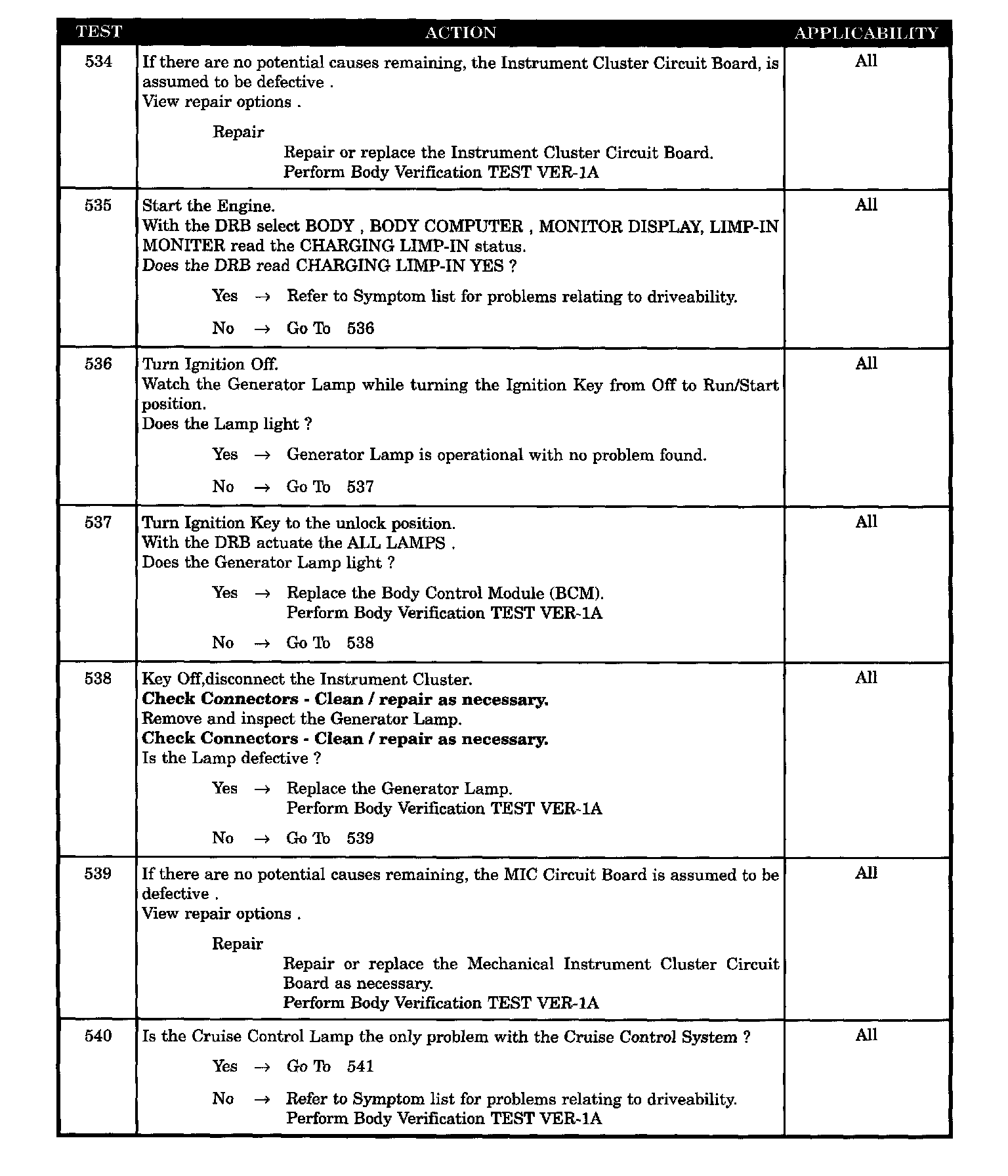

Tests 534 - 540:

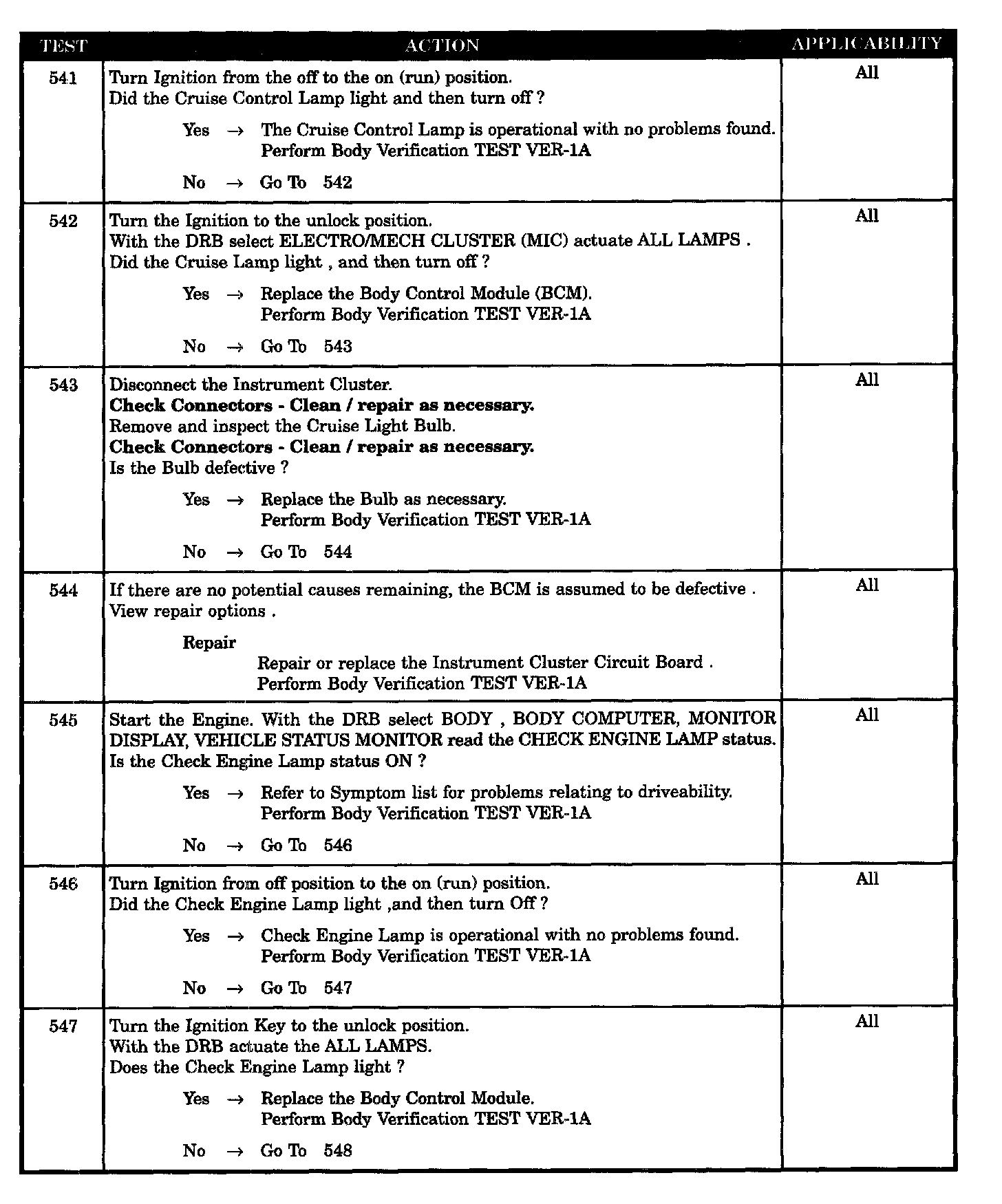

Tests 541 - 547:

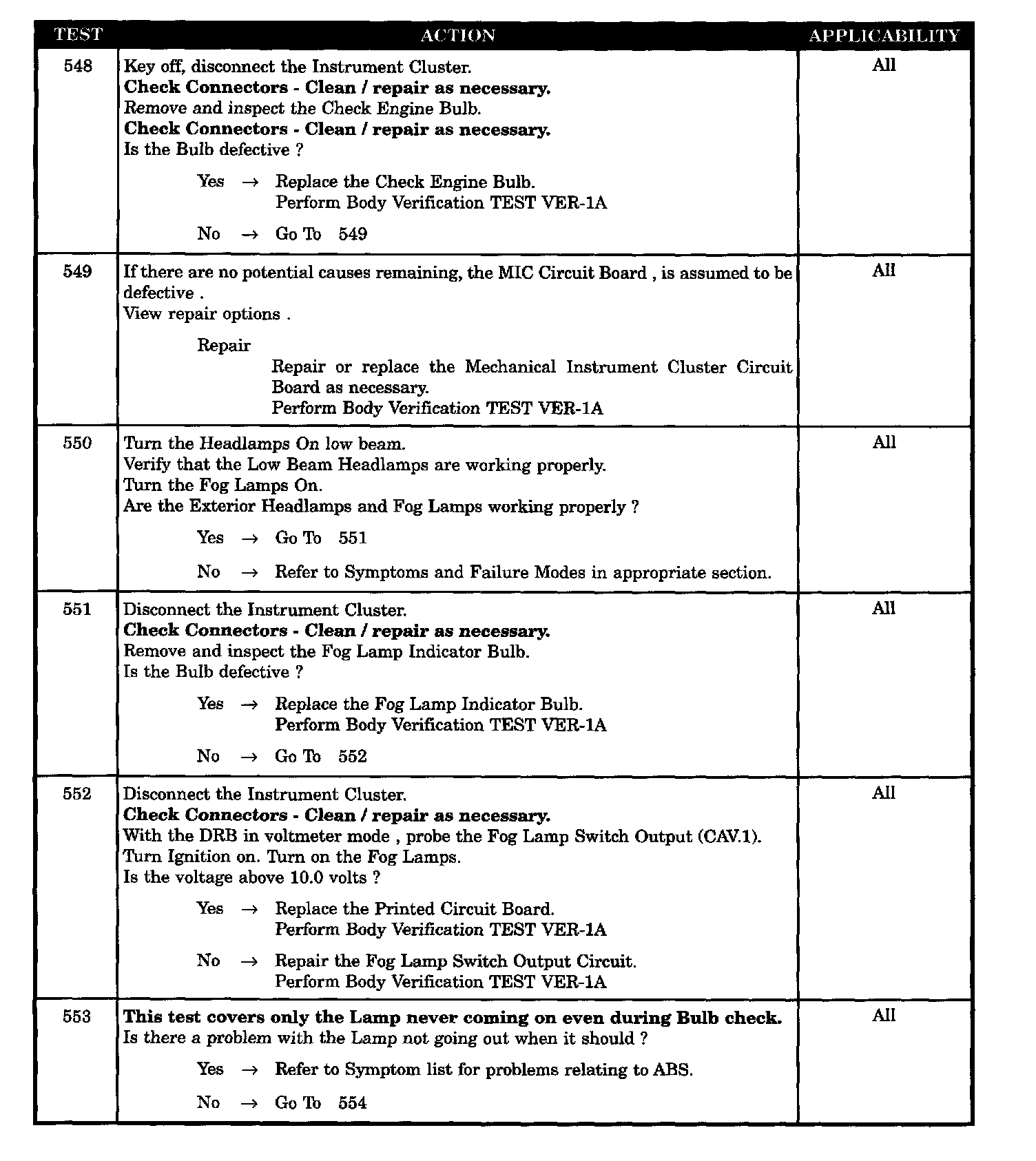

Tests 548 - 553:

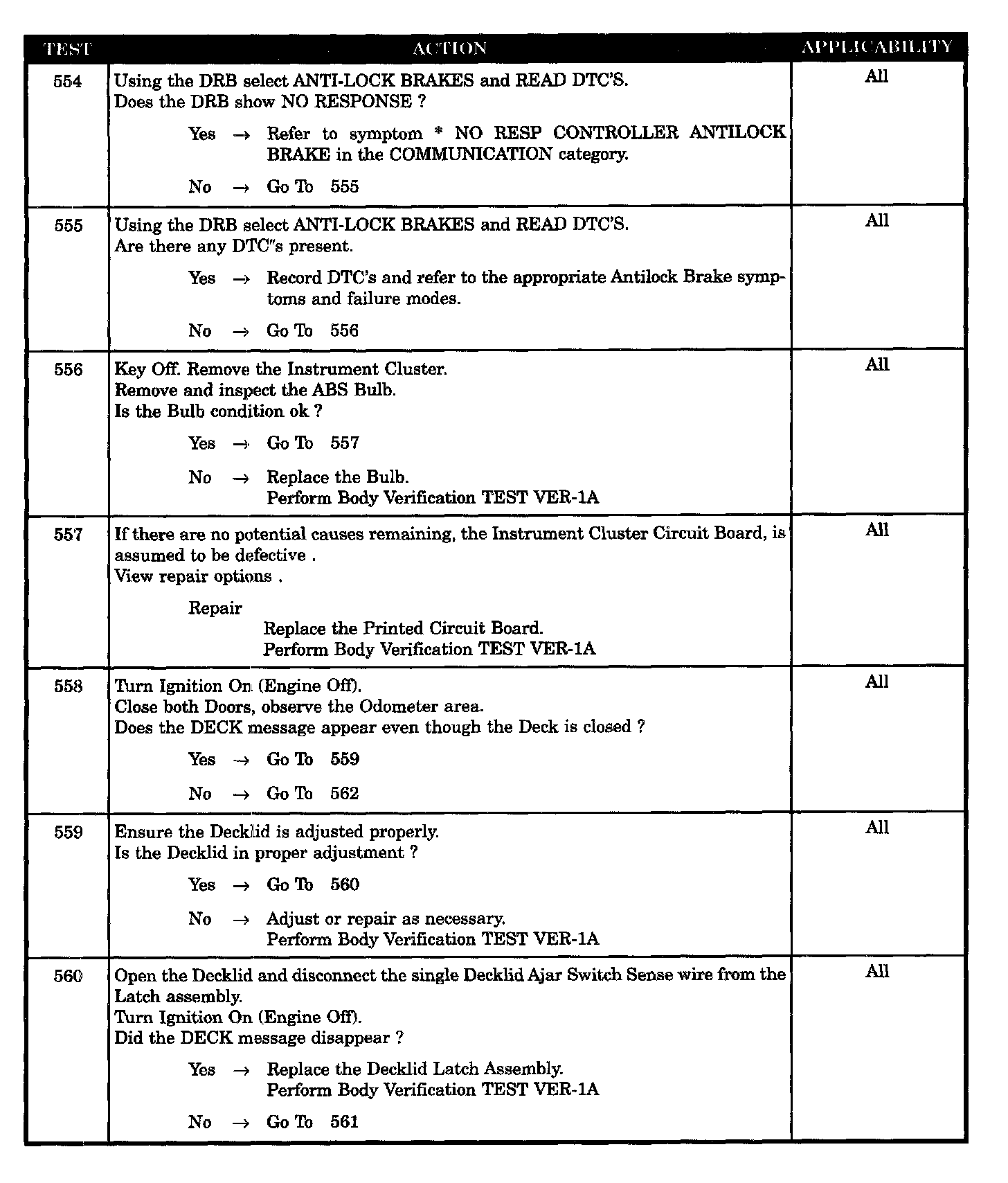

Tests 554 - 560:

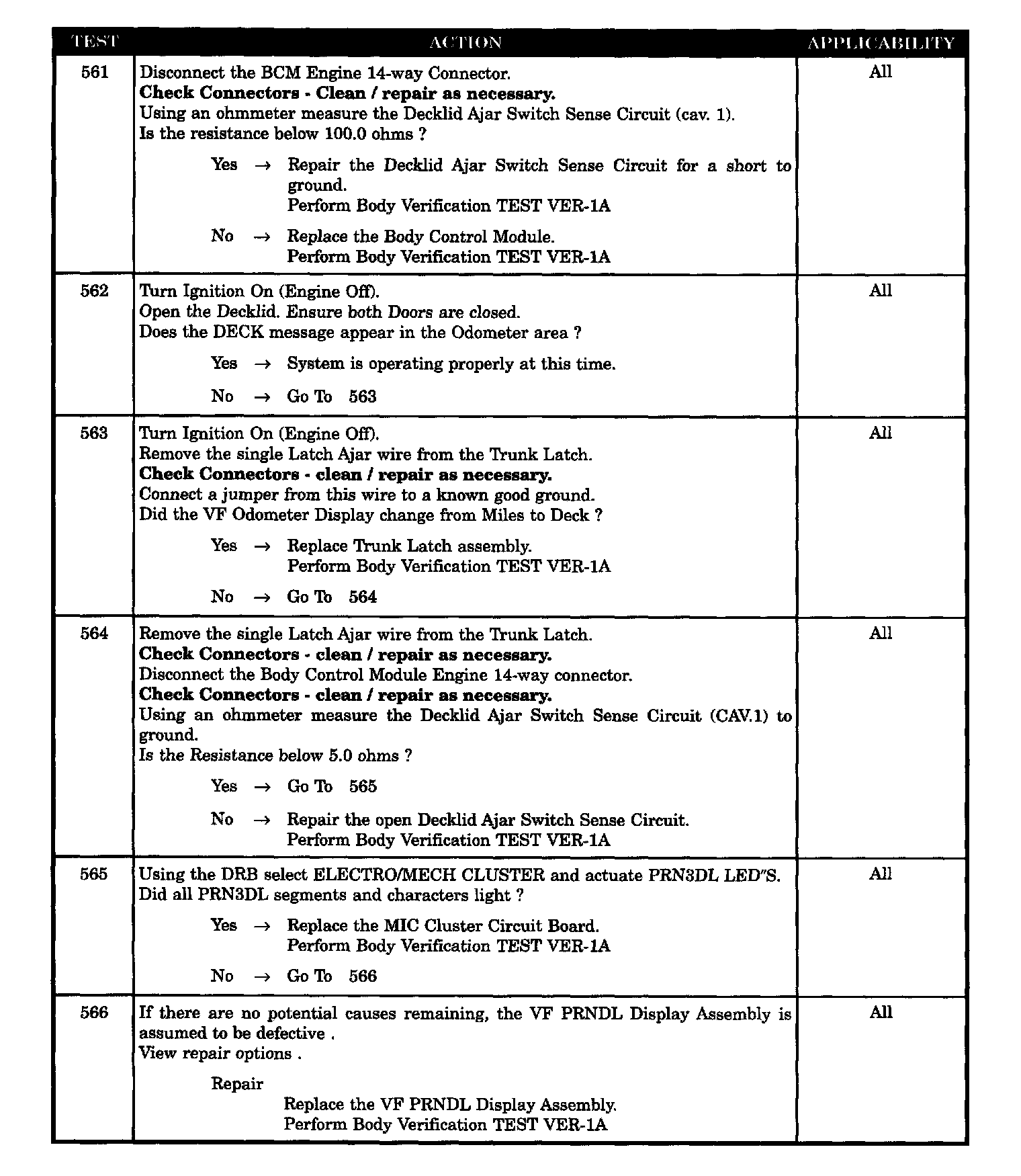

Tests 561 - 566:

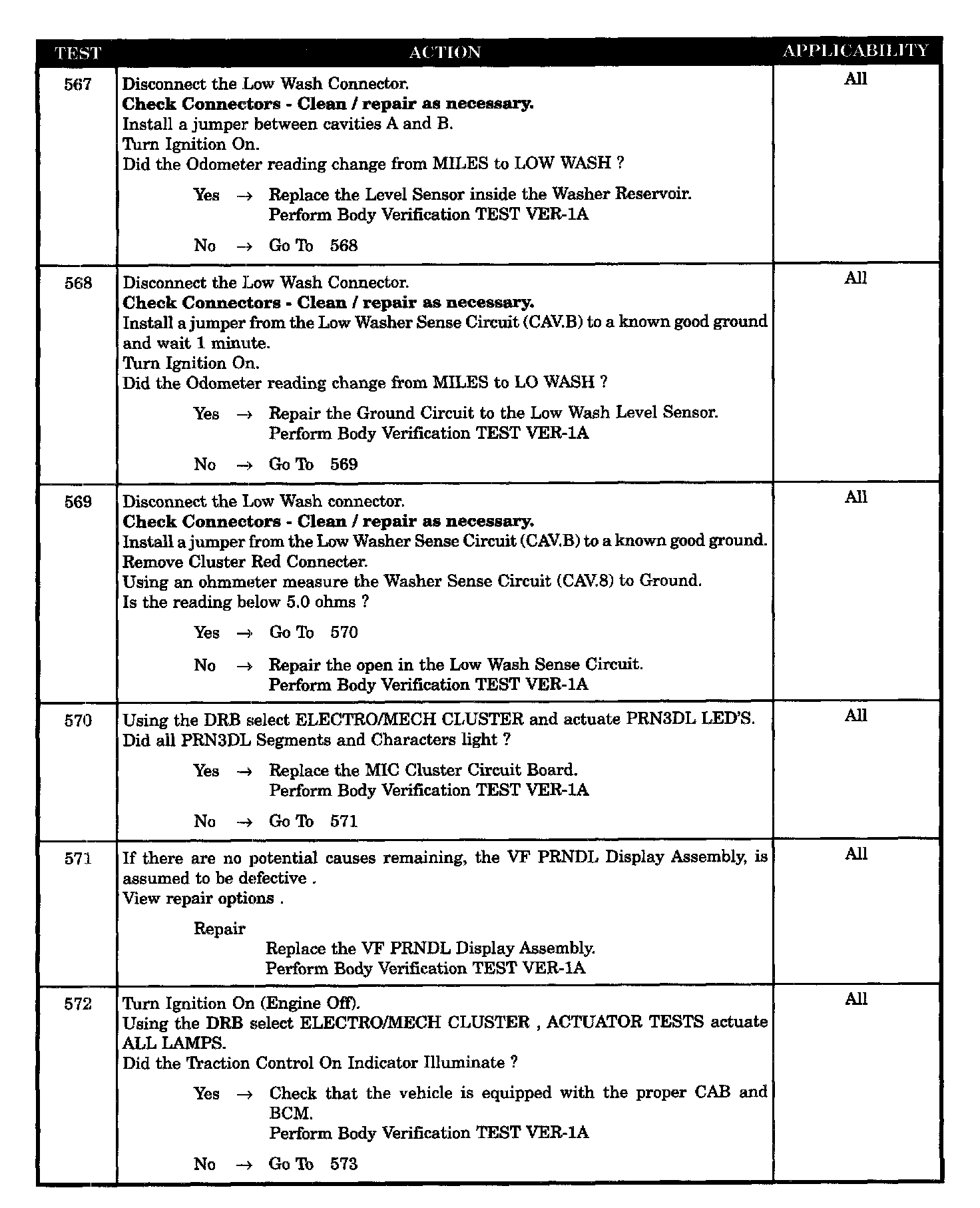

Tests 567 - 572:

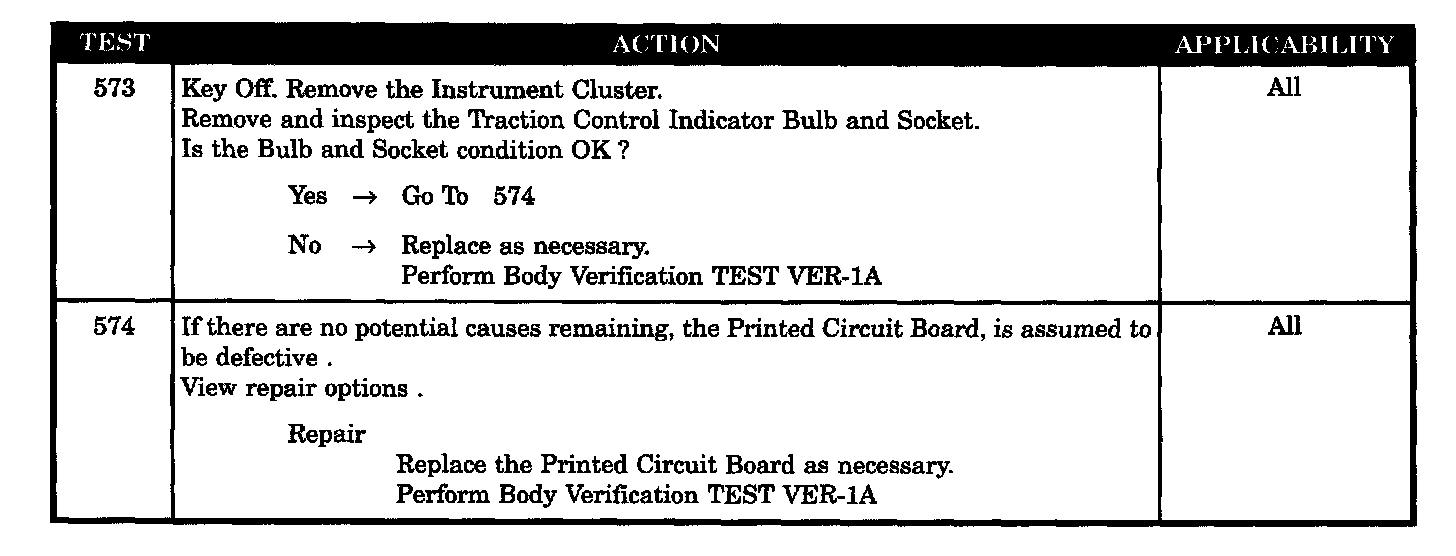

Tests 573 - 574:

SYMPTOM
* ANY OR ALL CLUSTER WARNING LAMPS

POSSIBLE CAUSES
- Turn signal lamps not working
- Deck message not appearing in ODO area
- Exterior head/fog lamps defective
- High beam headlamps not lighting
- High beam indicator lamp not lighting
- JX seat belt warning lamp stays on
- Seat belt lamp stays on
- Not ABS equipped vehicle
- Park brake operation defective
- Traction control on indicator defective
- BCM highbeam indicator lamp CKT defective
- Fused ignition switch output circuit open
- High beam indicator bulb defective
- Low fuel/lamp bulb defective
- Low oil pressure
- Oil level low
- Oil warning lamp/bulb defective
- Check engine lamp status on
- Check engine lamp stays on
- Cruise control lamp stays on
- Cruise control lamp SYS failure
- DRB reads charging limp in yes
- Generator lamp not lighting
- Junction block defective
- ABS warning lamp/bulb defective
- Brake fluid level switch GND circuit open
- Brake warning lamp driver circuit
- Brake warning lamp ground circuit open
- Check engine lamp/bulb defective
- Coolant temperature bulb defective
- Cruise control lamp/bulb defective
- Decklid latch assembly defective
- Defective seat belt warning lamp/bulb
- Fog lamp indicator bulb defective
- Fog lamp switch output circuit defective
- Generator lamp/bulb defective
- Left turn signal circuit open
- Low wash level ground circuit defective
- Low wash sense circuit
- Oil press switch sense CKT short to GND
- Oil pressure switch sense circuit open
- Red brake warning lamp/bulb defective
- Right turn signal circuit open
- Seat belt timer module sense circuit open
- Seat belt timer module sense circuit short
- Traction control bulb/socket defective
- Turn signal bulbs defective
- Coolant TEMP lamp no function
- Coolant TEMP lamp stays on
- DRB reads ECT sensor limp in yes
- ABS warning lamp stays on
- Airbag warning lamp problem
- Decklid adjustment defective
- Defective oil pressure switch
- DRB shows DTC'S Are present
- EATX PRNDL message present
- Instrument cluster circuit board defective
- Instrument cluster defective
- Trunk latch assembly defective
- Washer level sensor defective
- Brake fluid level low
- Brake fluid reservoir low
- Deck ajar switch sense circuit open
- Decklid ajar switch sense circuit short
- Red brake warning lamp circuit short to GND
- BCM check engine lamp output circuit DEF
- BCM coolant temperature lamp output defect
- BCM cruise control lamp output defective
- BCM generator lamp output circuit defective
- BCM low fuel lamp output defective
- Brake fluid level switch defective
- Defective BCM low fuel lamp output
- Defective brake fluid level switch
- Defective ignition switch
- Defective MIC circuit board
- Defective park brake switch
- Ignition switch defective
- Instrument cluster circuit board defective
- Instrument cluster circuit board defective
- Instrument cluster circuit board defective
- Instrument cluster circuit board faulty
- Instrument cluster CKT BD defect
- Instrument cluster defective
- MIC circuit board defective
- MIC circuit board defective
- MIC circuit board defective
- MIC circuit board defective
- Park brake switch defective
- Power control module defective
- VF PRNDL display assembly defective
- VF PRNDL display assembly defective
- Open red brake lamp circuit
- Red brake warning lamp circuit open
- Defective MIC circuit board
- Odometer/trip characters not lighting
- PRND3L characters not lighting
- BCM decklid ajar CKT output DEF
- Defective BCM seat belt circuit
- DRB displays ram fault
- DRB shows bus operational failure
- Instrument cluster circuit board defect
- Instrument cluster circuit board defective
- MIC circuit board defective
- MIC circuit board defective
- MIC cluster mismatch
- Oil pressure switch defective
