All Gauges Not Operating

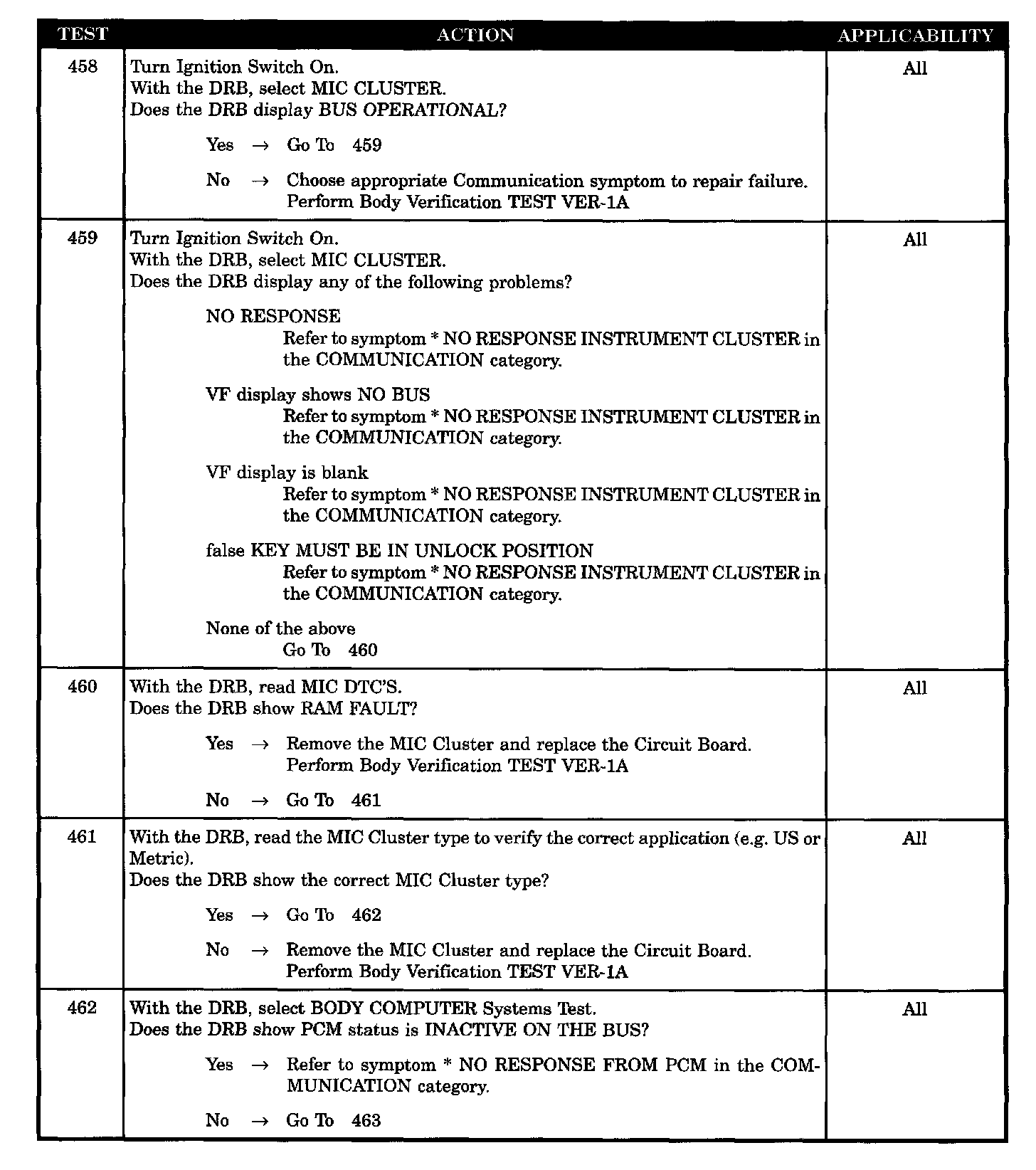

Tests 458 - 462:

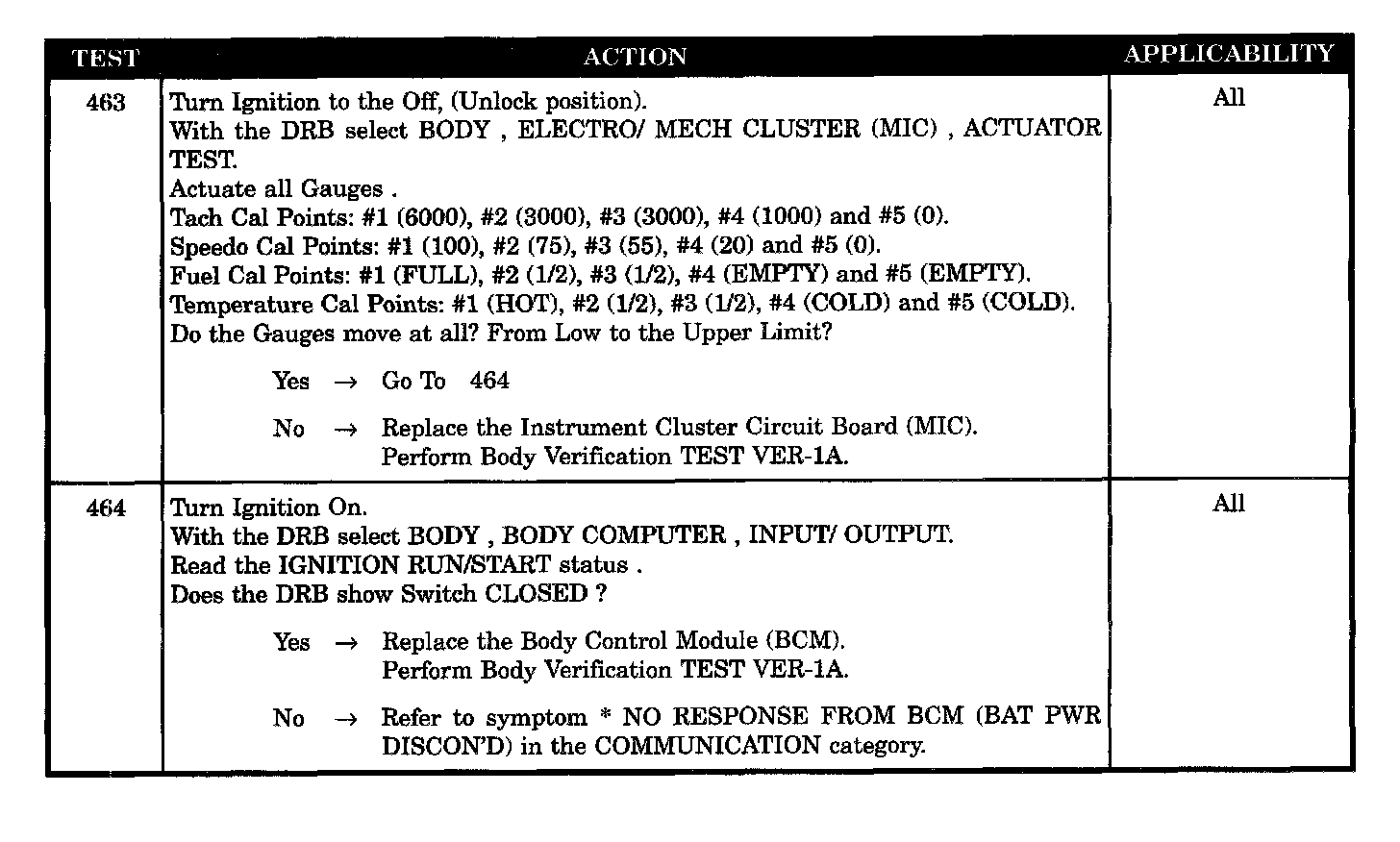

Tests 463 - 464:

SYMPTOM
* ALL GAUGES NOT OPERATING

POSSIBLE CAUSES
- BCM IGN run/start input CKT defective
- Instrument cluster CKT board out of SPEC
- DRB displays ram fault
- DRB shows bus operational failure
- MIC cluster mismatch
