Shorted to 5 Volts

Tests 217 - 221:

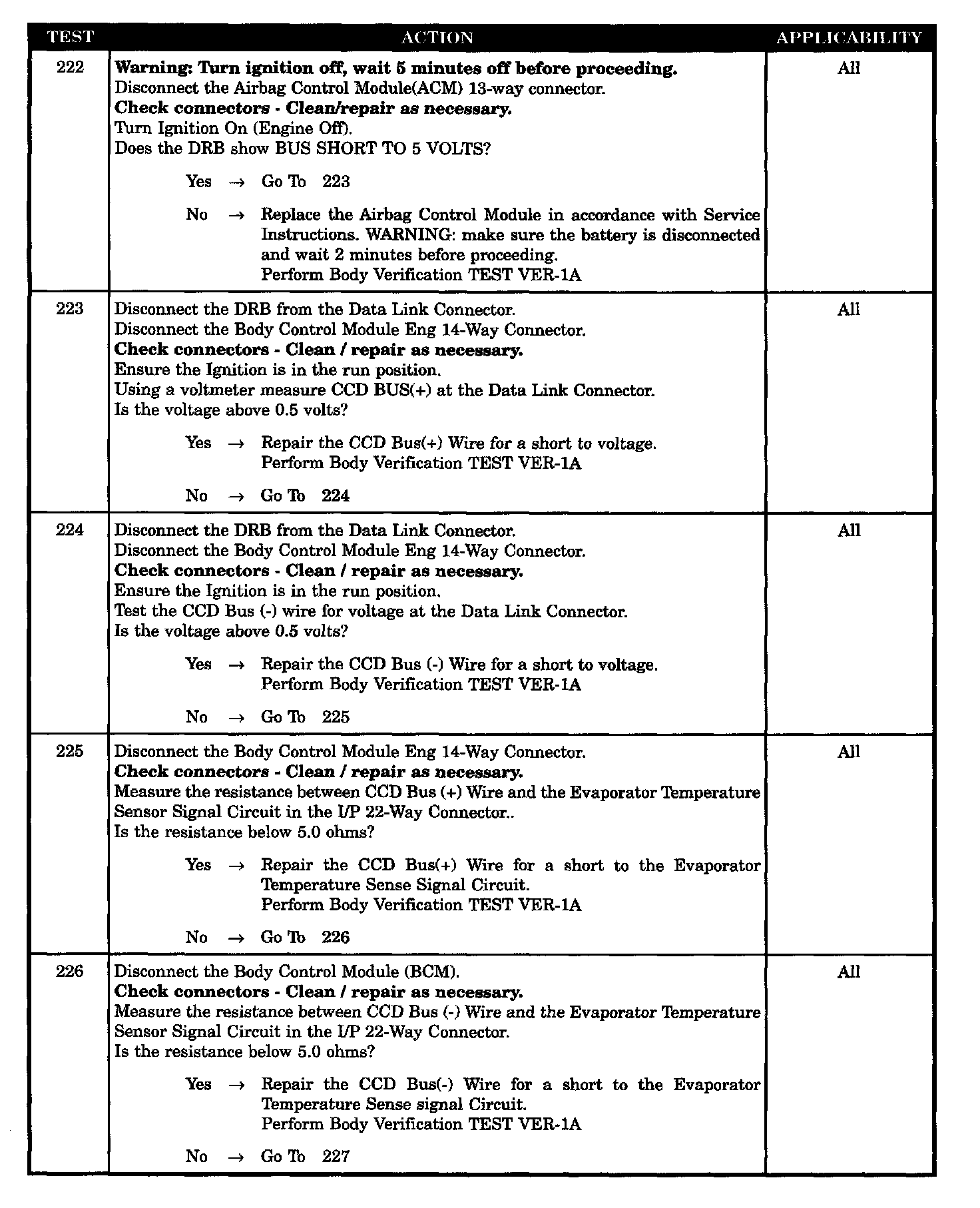

Tests 222 - 226:

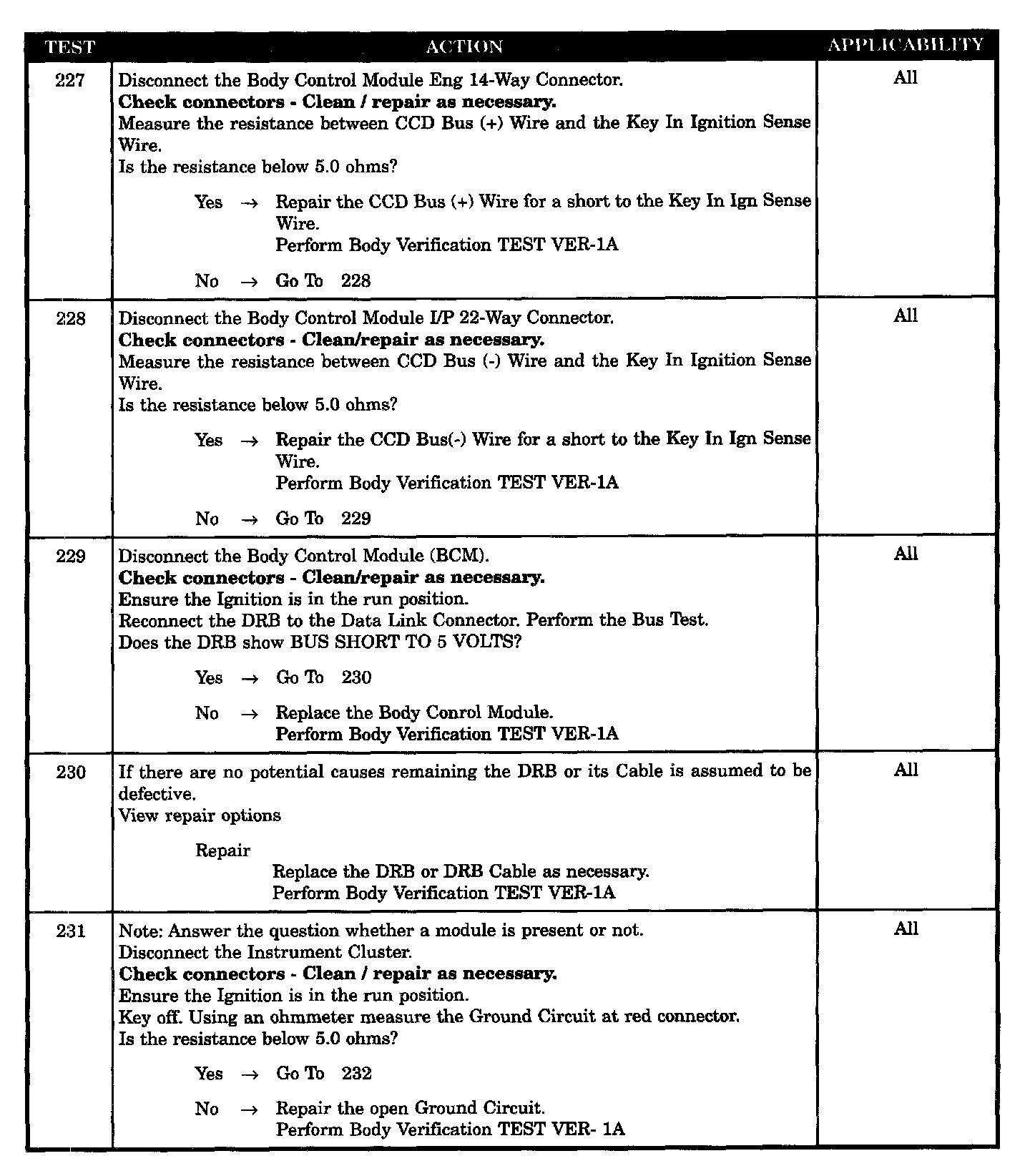

Tests 227 - 231:

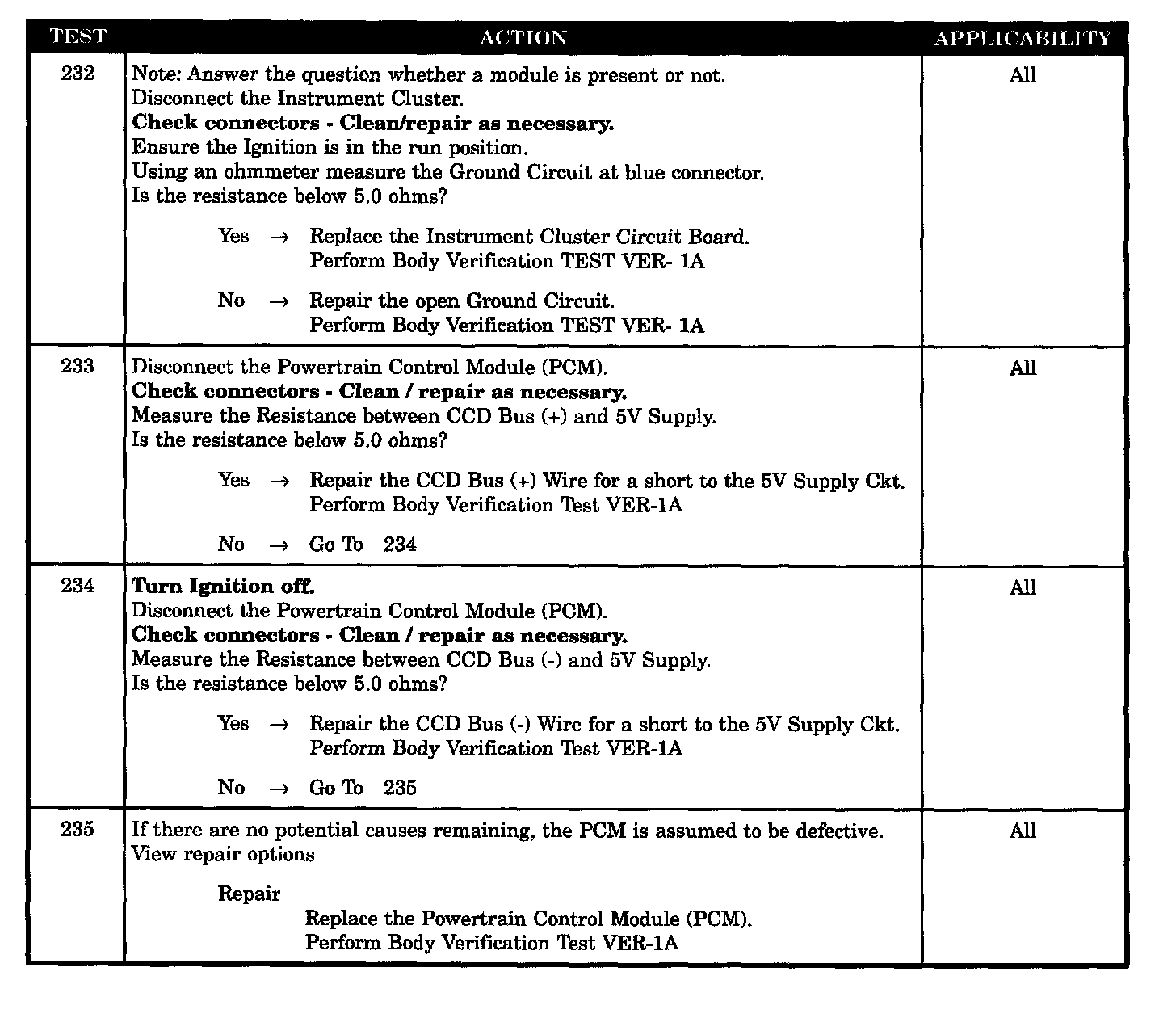

Tests 232 - 235:

SYMPTOM
* SHORT TO 5 Volts

POSSIBLE CAUSES
- Defective DRB/short to 5 Volts
- CCD bus (+) short to 5V supply circuit
- CCD bus (+) short to key in IGN sense wire
- CCD bus (-) short to 5V supply circuit
- CCD bus (-) short to key in IGN sense wire
- CCD IC GND CKT red open
- CCD bus(+) short to evaporator temperature sensor
- CCD bus(-) short to evaporator temperature sensor
- CCD IC GND CKT blue open
- CCD bus (-) short to voltage
- CCD bus(+) short to voltage
- CCD PCM short to 5 Volts
- CCD CAB short to 5 Volts
- CCD BCM short to 5 Volts
- CCD ACM short to 5 Volts
- CCD skim short to 5 Volts
- CCD TCM short to 5 Volts
- IC defect GND CKT open
