Not Receiving Bus Messages Properly

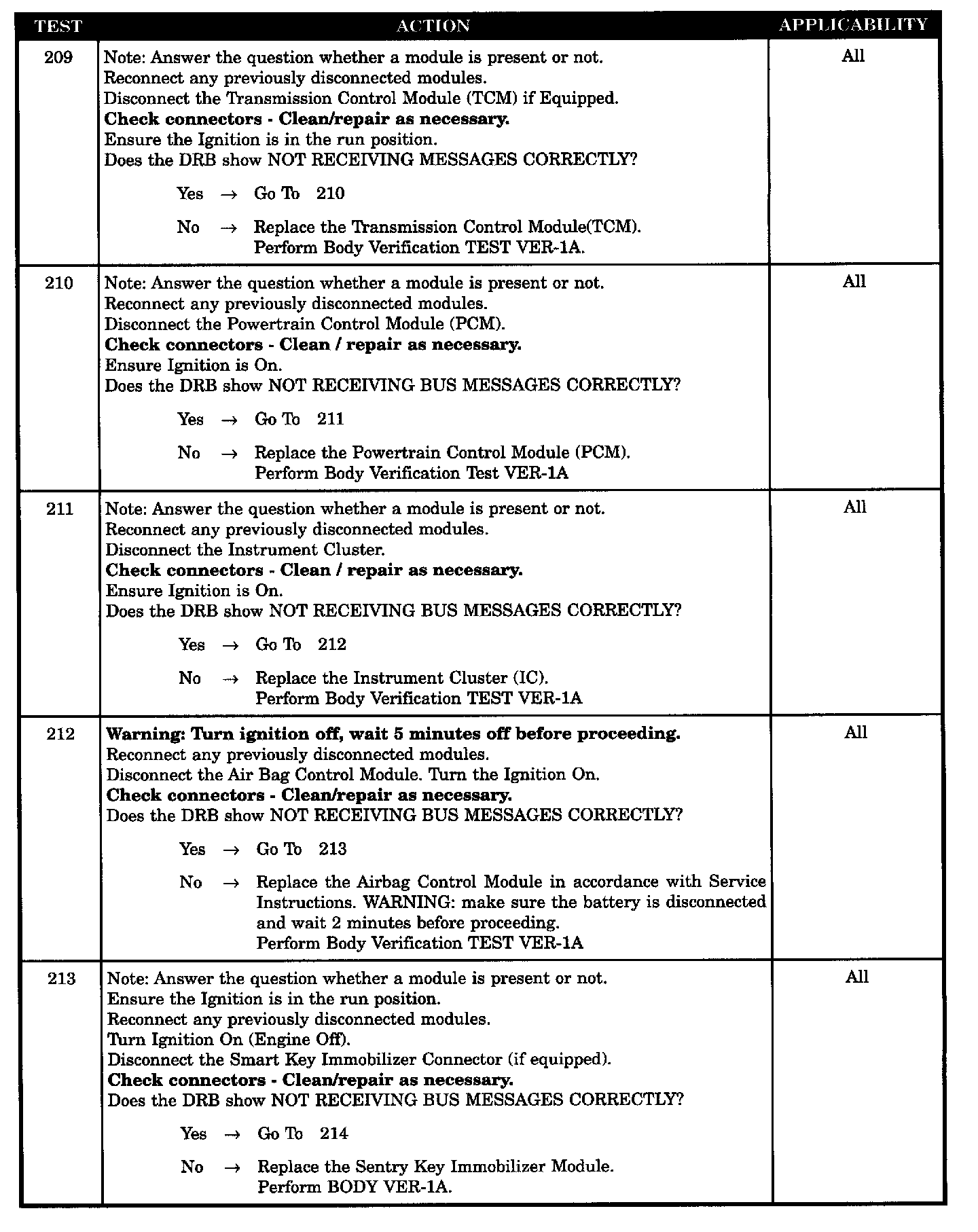

Tests 209 - 213:

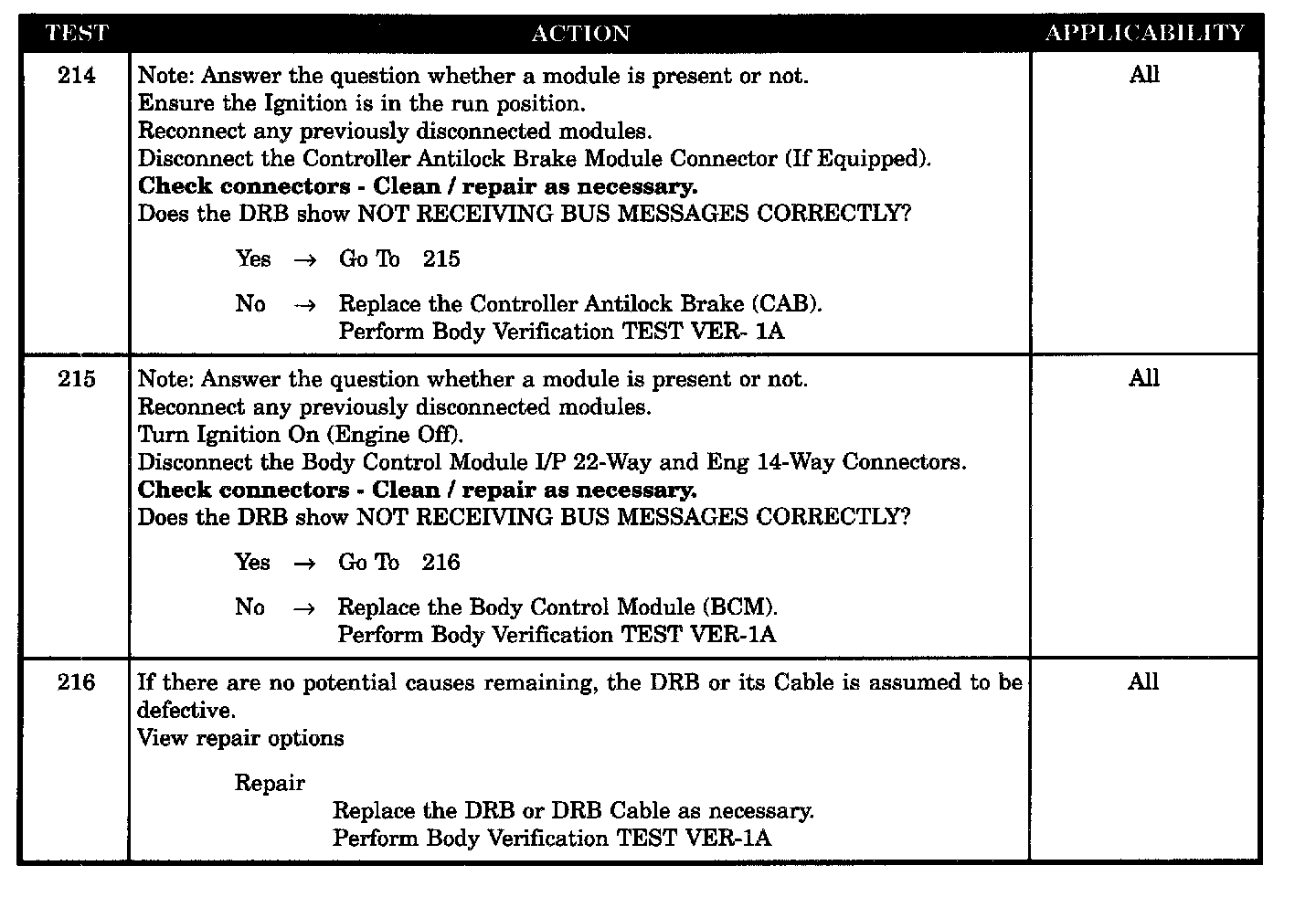

Tests 214 - 216:

SYMPTOM
* NOT RECEIVING BUS MESSAGES PROPERLY

POSSIBLE CAUSES
- Defective DRB/receiving MSGS incorrectly
- CCD IC not receiving bus messages correctly
- CCD PCM not receiving bus messages correctly
- CCD CAB not receiving bus messages correctly
- CCD BCM not receiving bus messages correctly
- CCD ACM not receiving bus messages correctly
- CCD skim not receiving bus messages correctly
- CCD TCM not receiving bus messages correctly
