No Response From Instrument Cluster

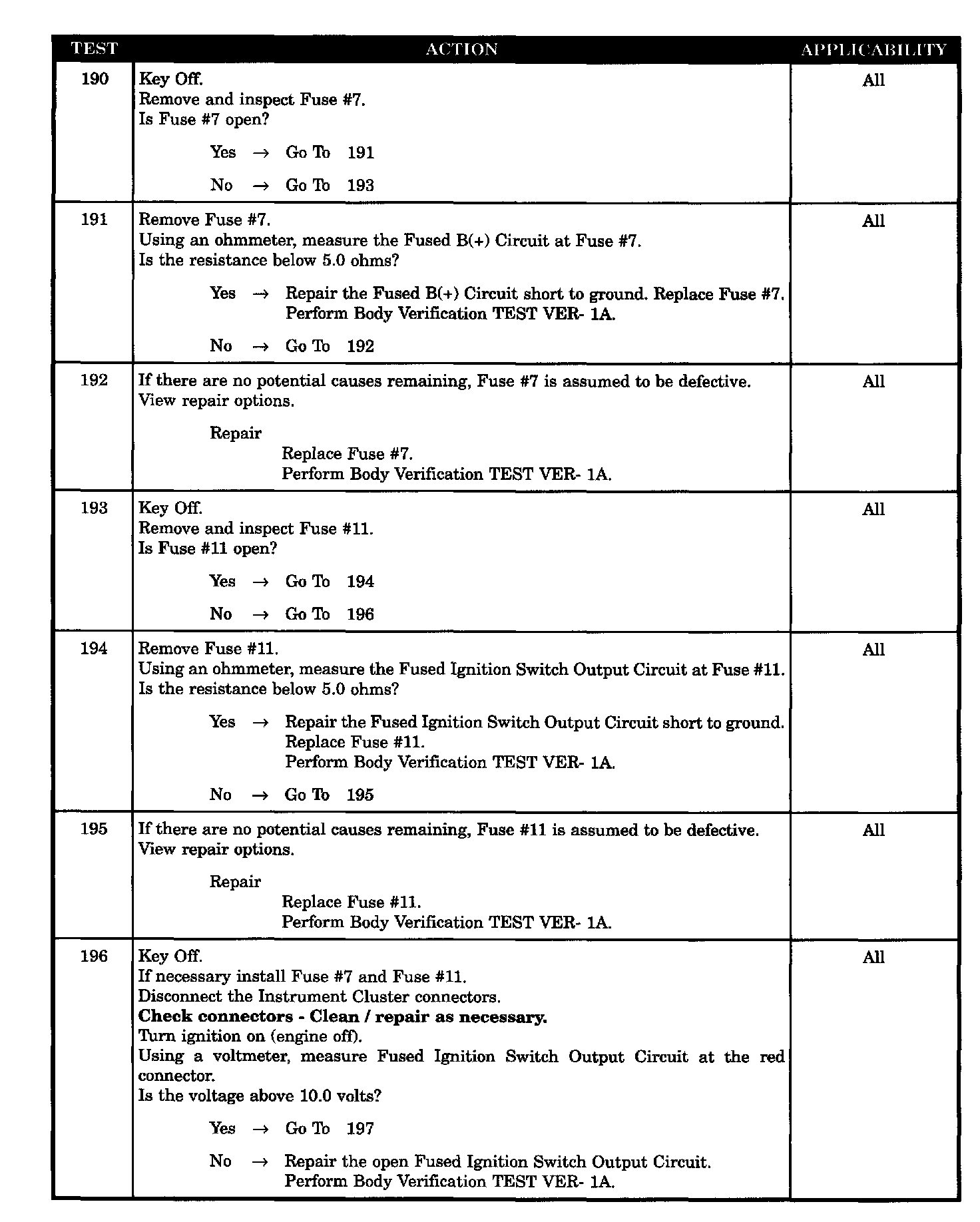

Tests 190 - 196:

Tests 197 - 200:

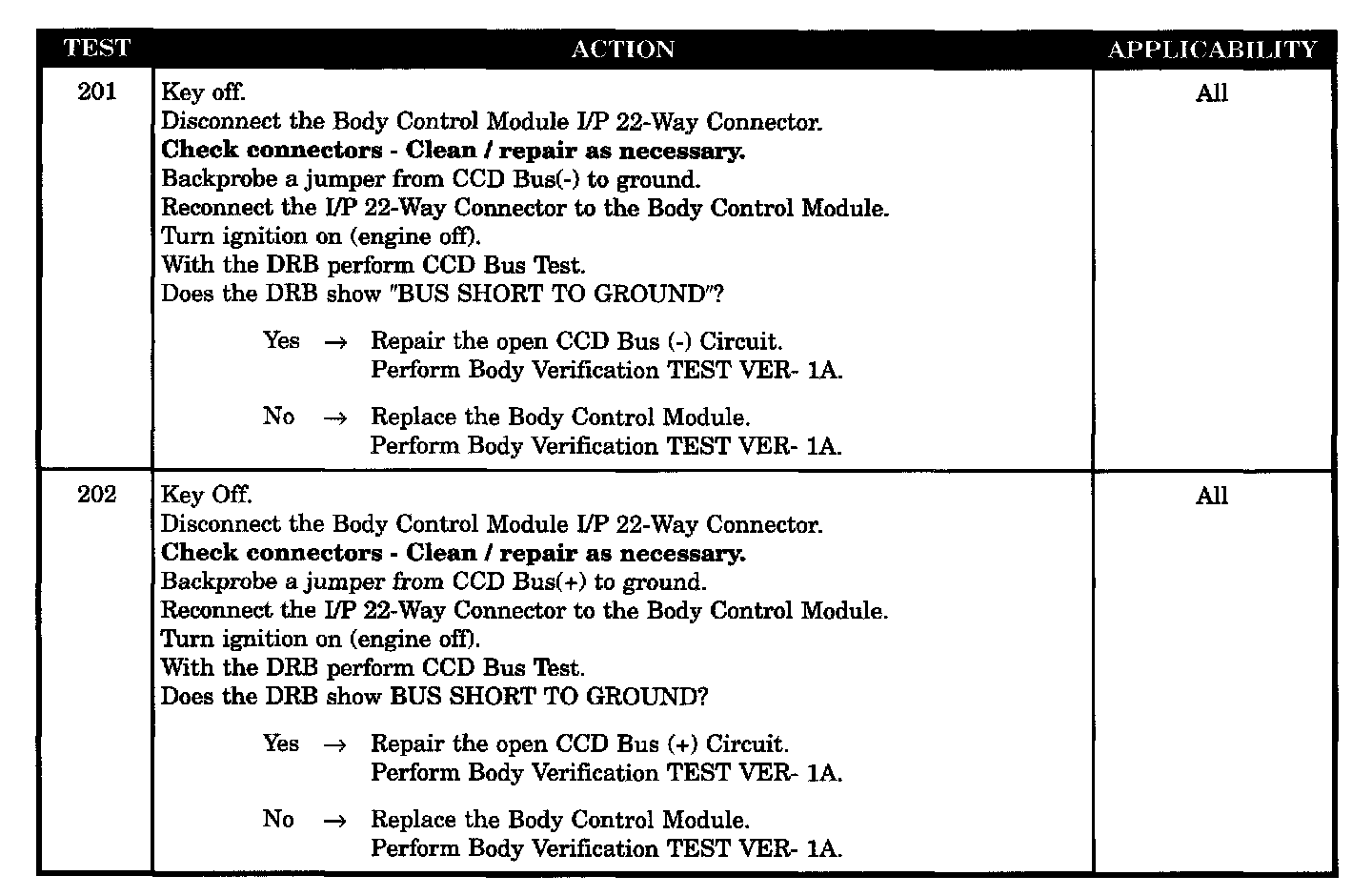

Tests 201 - 202:

SYMPTOM
* NO RESPONSE INSTRUMENT CLUSTER

POSSIBLE CAUSES
- CCD bus (+) circuit open
- Fuse #11 defective
- Fuse #7 defective
- Fused B(+) circuit open
- Fused B(+) circuit short to GND
- Fused ignition switch output circuit open
- Fused ignition switch output circuit short to GND
- BCM MIC CCD bus(-) open
- Instrument cluster CCD bus defective
- Instrument cluster ground circuit open
- BCM MIC CCD bus(+) open
- CCD bus (-) circuit open
