No Response From BCM

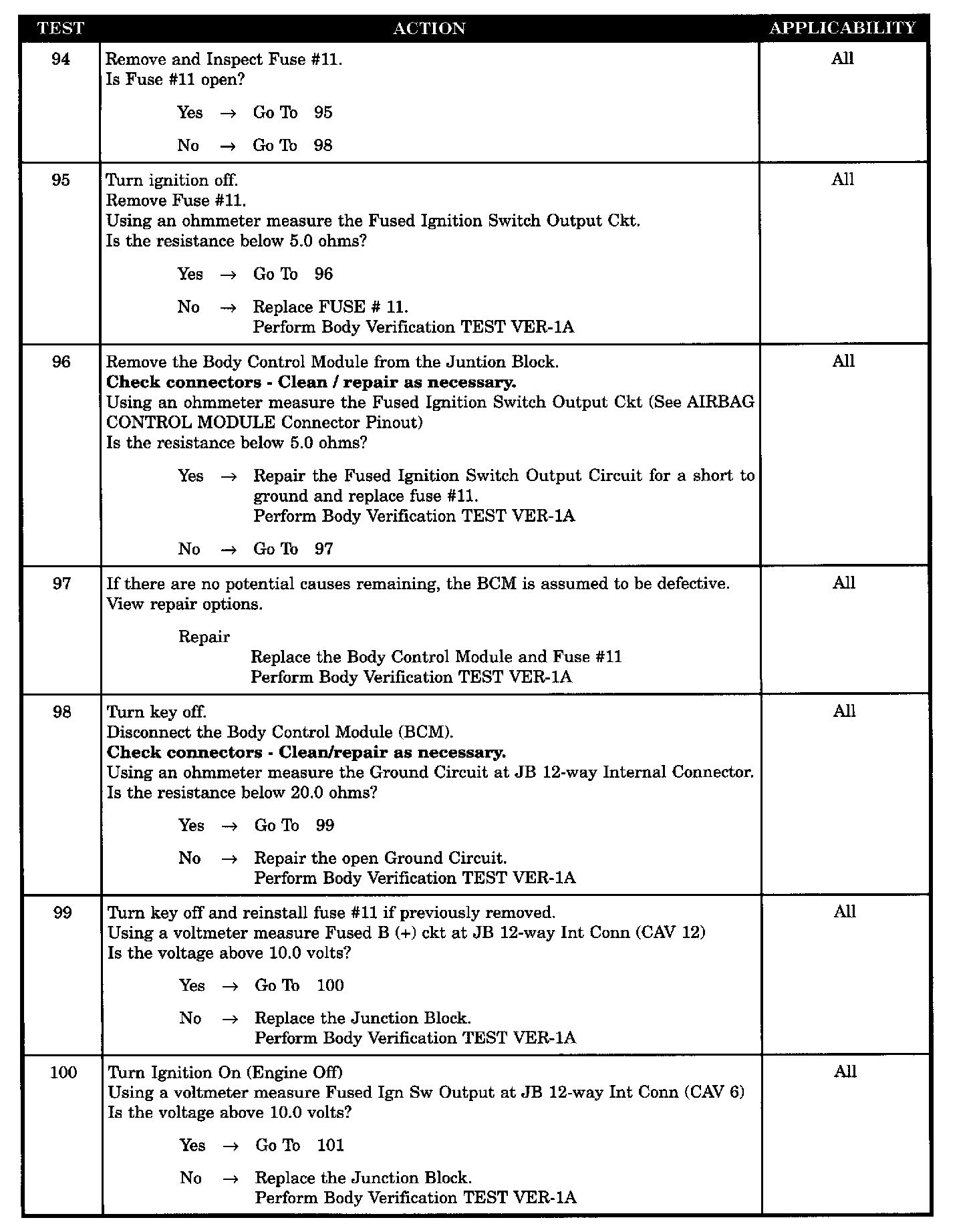

Tests 94 - 100:

Tests 101 - 102:

SYMPTOM LIST
* NO RESPONSE FROM BCM (BAT PWR DISCON'D)

TEST NOTE All symptoms listed above are diagnosed using the same tests. The title for the tests will be BATTERY POWER TO MODULE DISCONNECT.

POSSIBLE CAUSES
- BCM defect - fused IGN SW out
- Fused IGN SW out CKT SHRT to GND - BCM
- CCD BCM ground circuit open
- BCM defect
- Fuse # 11 defective
- No response IGN SW output voltage
- No response fused B+ volt low
- No response fused IGN output voltage
