No Response From ACM

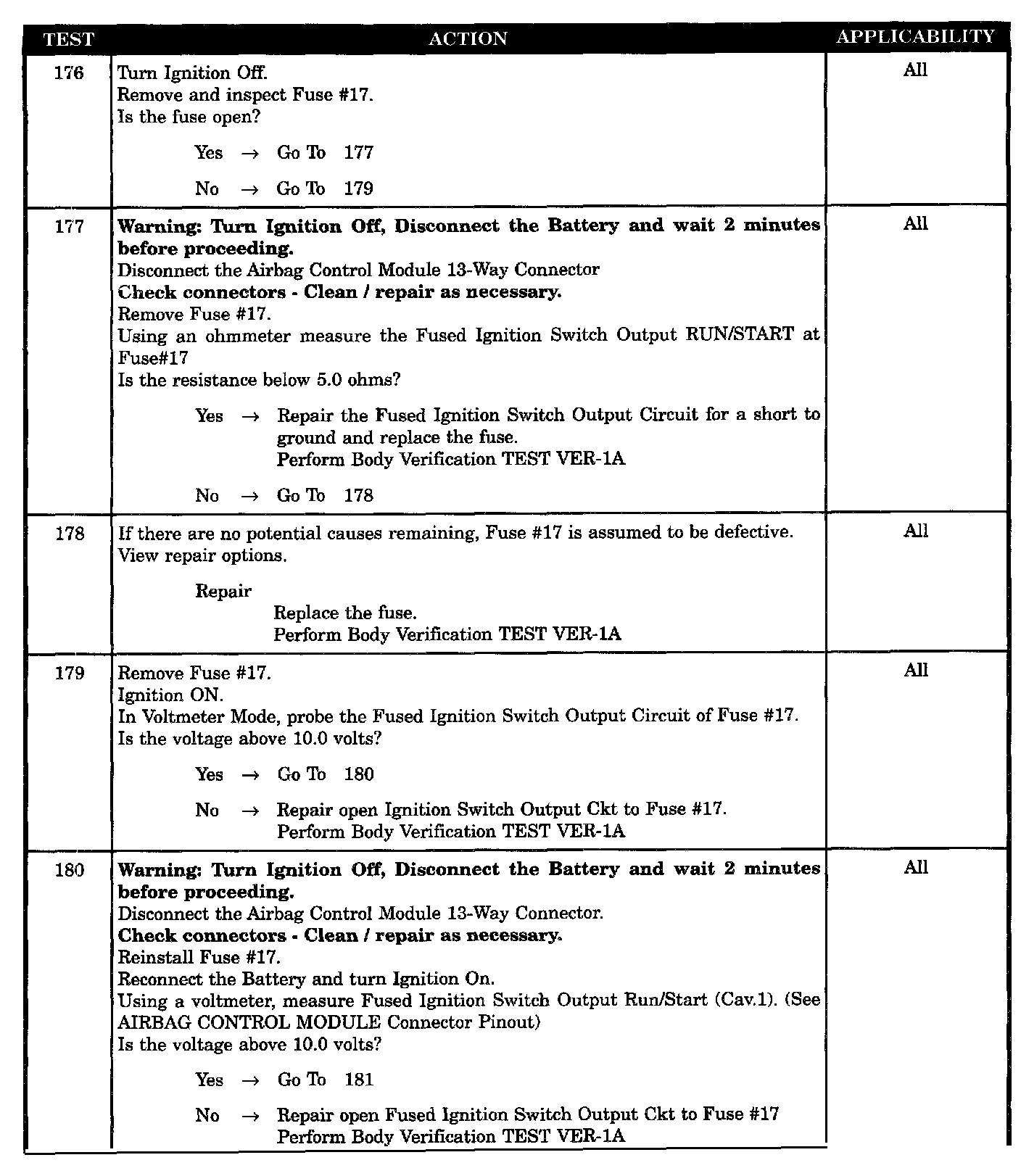

Tests 176 - 180:

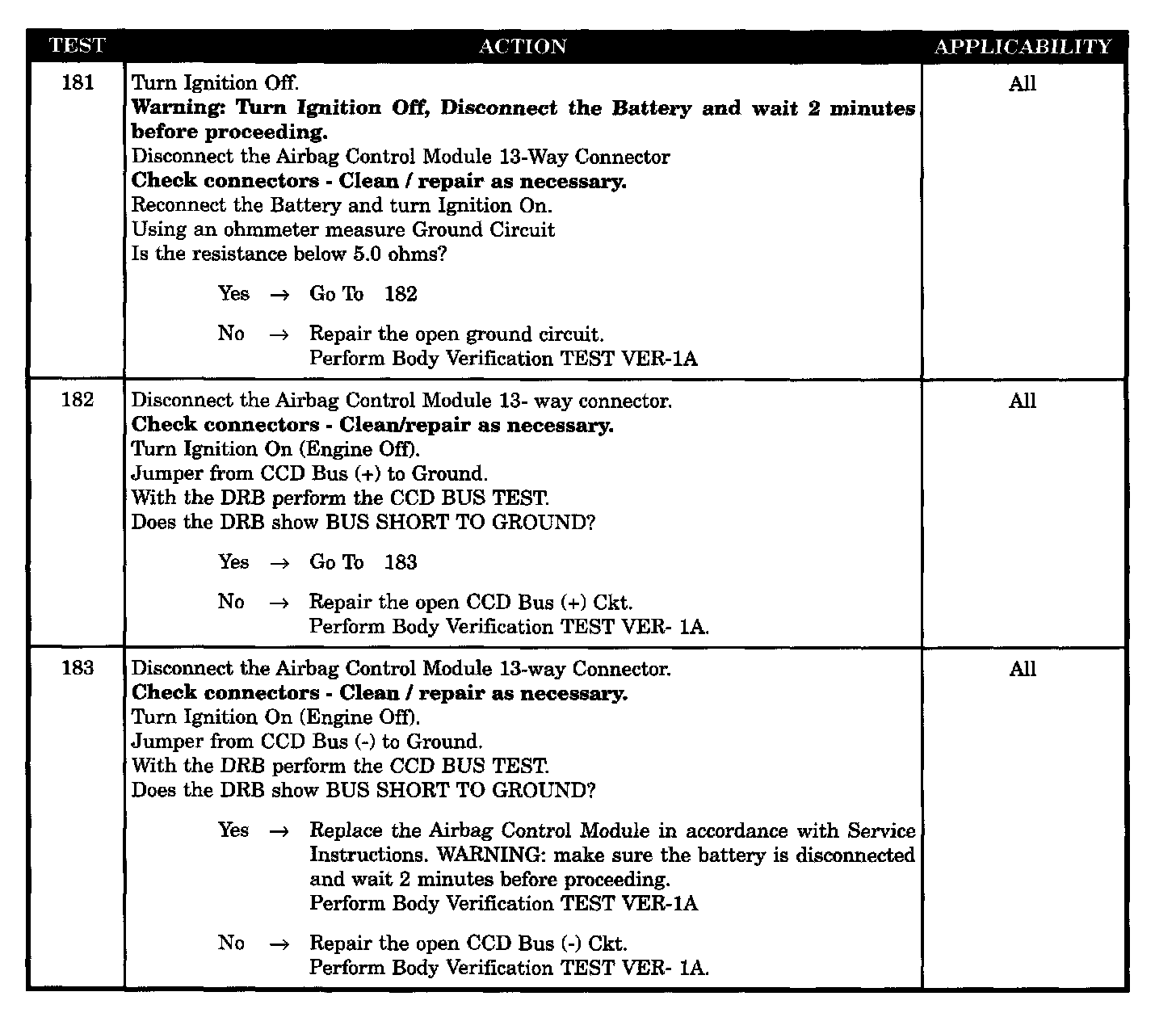

Tests 181 - 183:

SYMPTOM
* NO RESPONSE FROM ACM

POSSIBLE CAUSES
- Fused ignition switch output circuit shorted to ground
- No fused ignition switch voltage to ACM
- IGN SW out CKT open - ACM
- No response ACM bus(+) CKT OP
- NO response ACM bus(-) CKT OP
- ACM ground circuit open
- Defective airbag control module-no response
- Fuse #17 defective
