CCD Short to Ground

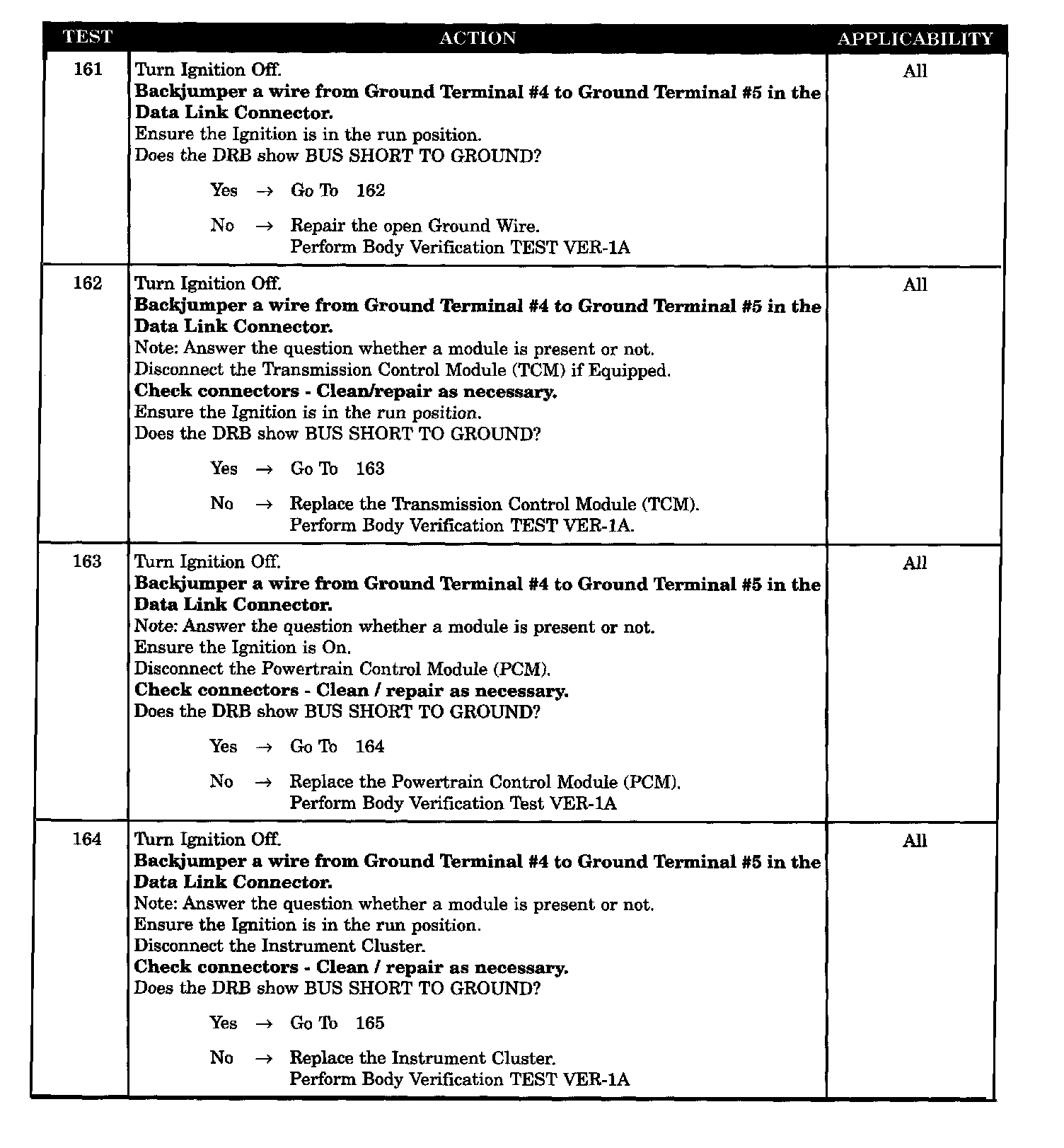

Tests 161 - 164:

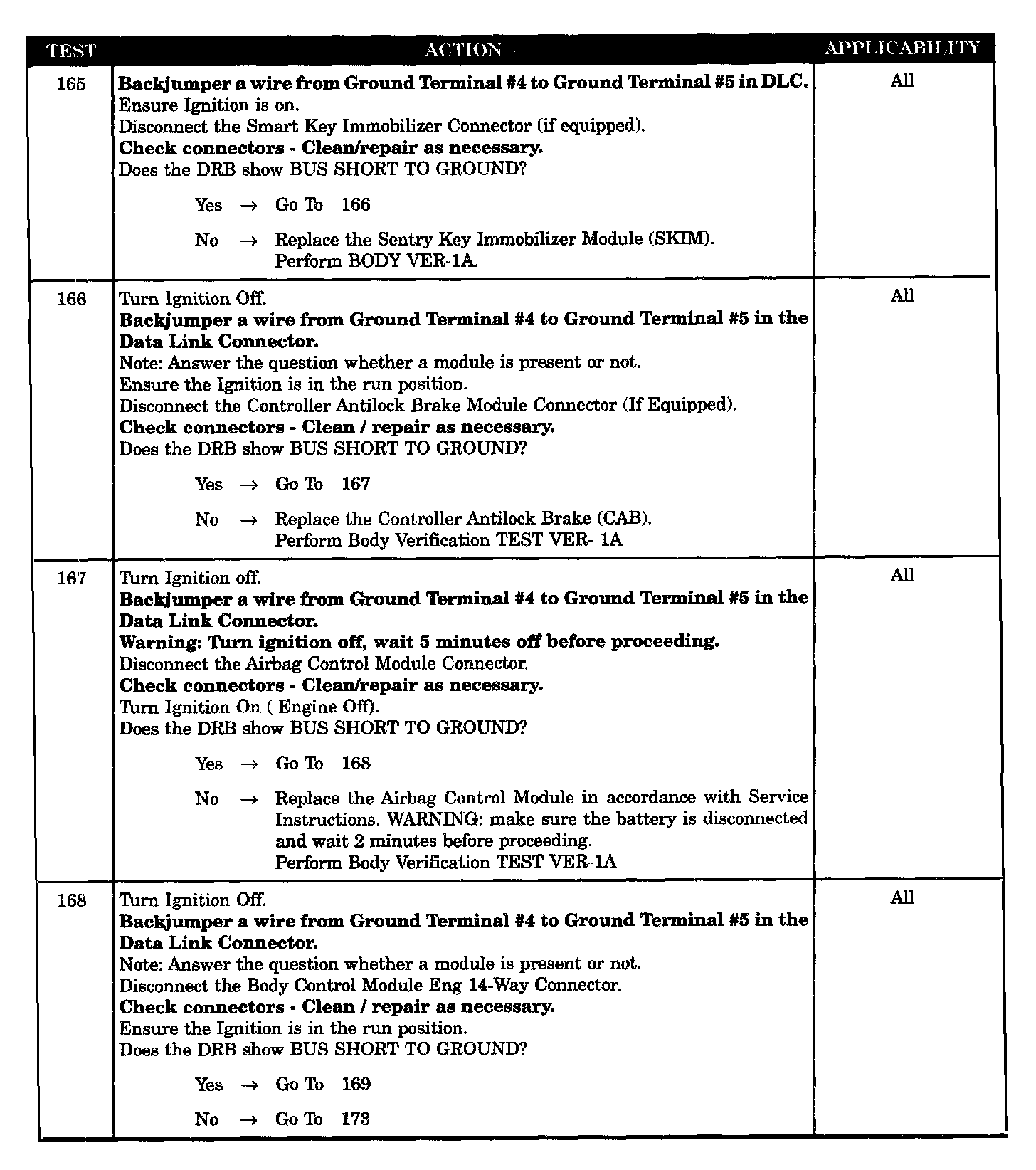

Tests 165 - 168:

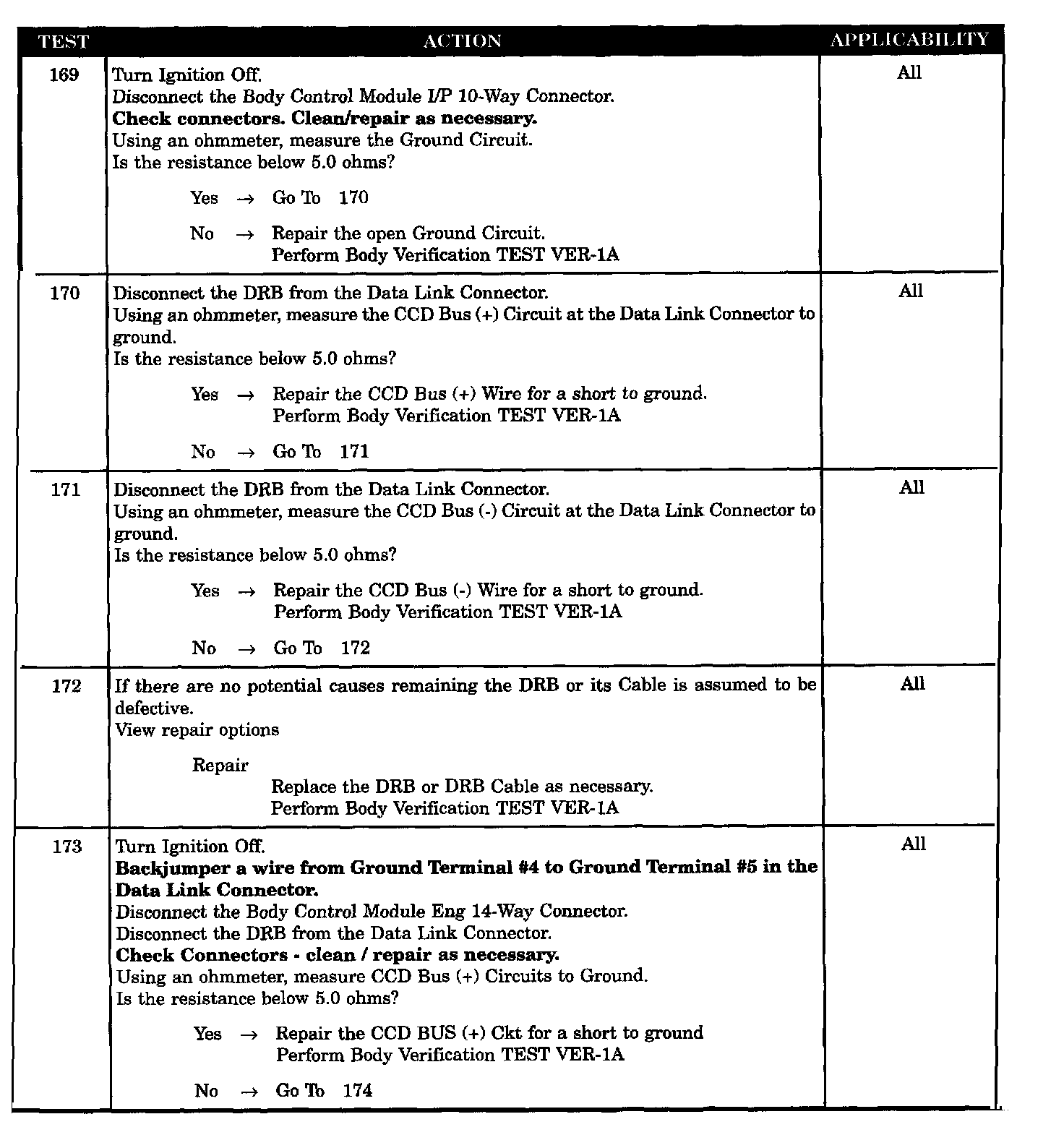

Tests 169 - 173:

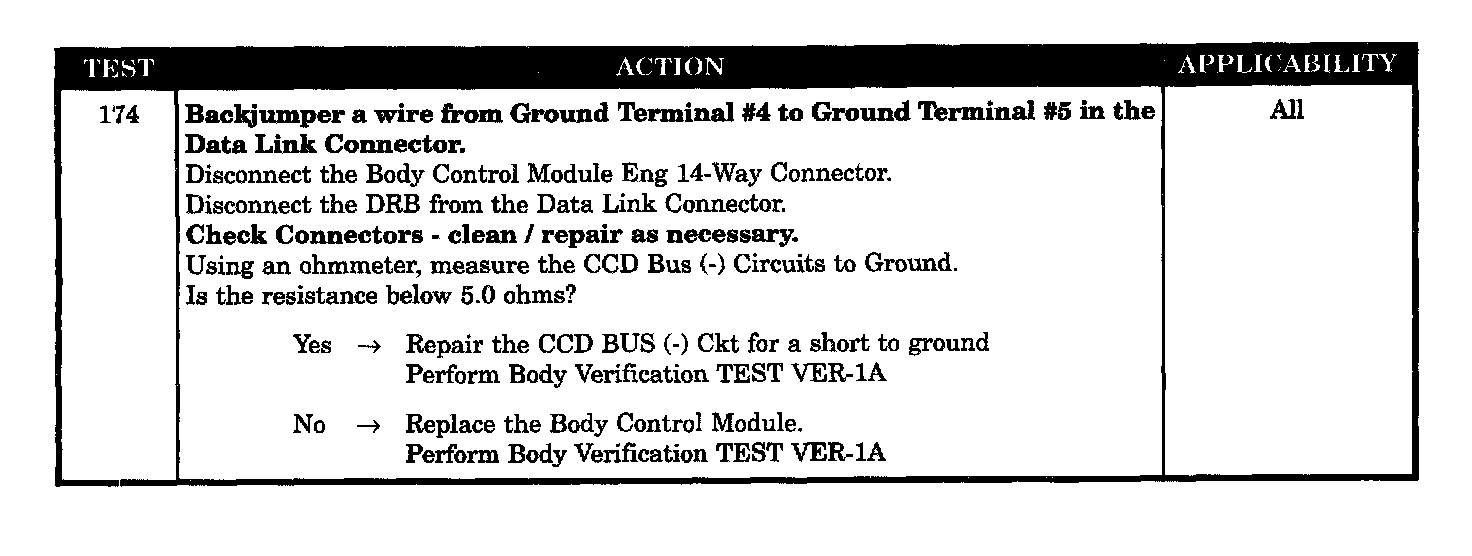

Test 174:

SYMPTOM
* CCD SHORT TO GROUND

POSSIBLE CAUSES
- Defective DRB/short to ground
- CCD ground wire open
- Open ground CKT/body control module
- CCD bus (+) short to ground
- CCD bus (+) wire-short to ground
- CCD bus (-) short to ground
- CCD bus (-) wire- short to ground
- CCD instrument cluster short to ground
- CCD PCM short to ground
- CCD CAB short to ground
- CCD ACM short to ground
- CCD skim short to ground
- CCD TCM short to ground
- Defective BCM- bus (-) short to ground
