CCD Short to Battery

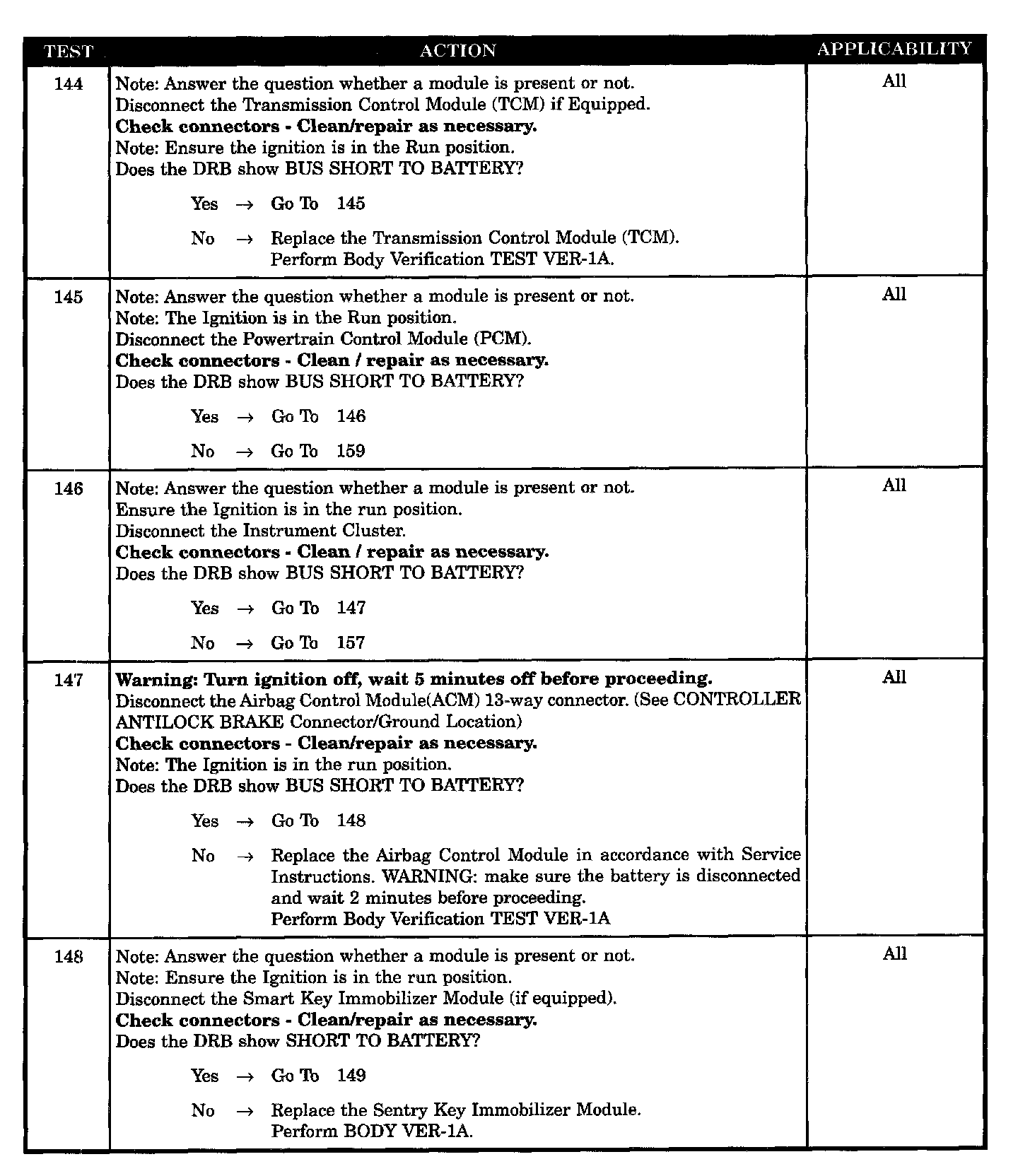

Tests 144 - 148:

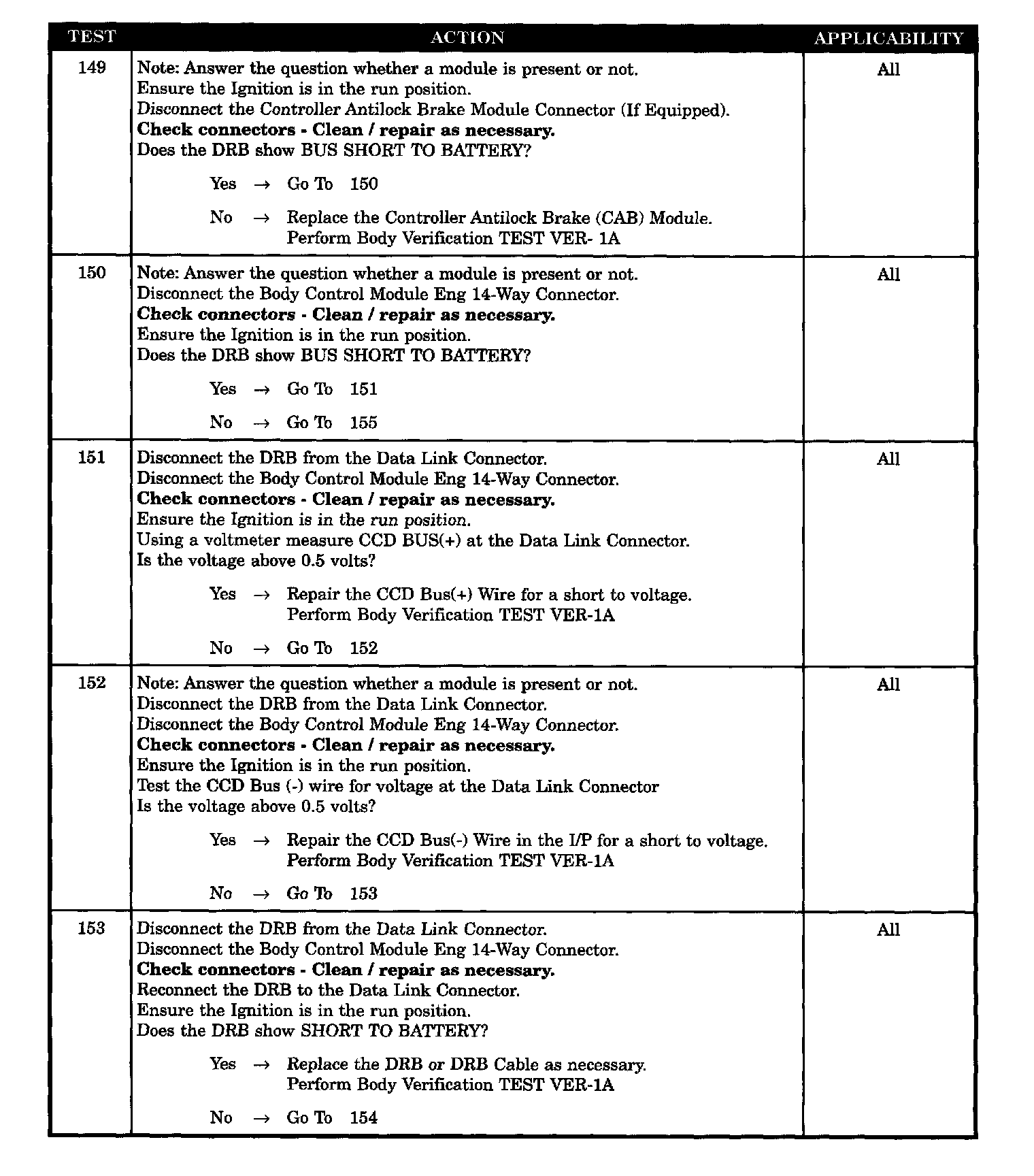

Tests 149 - 153:

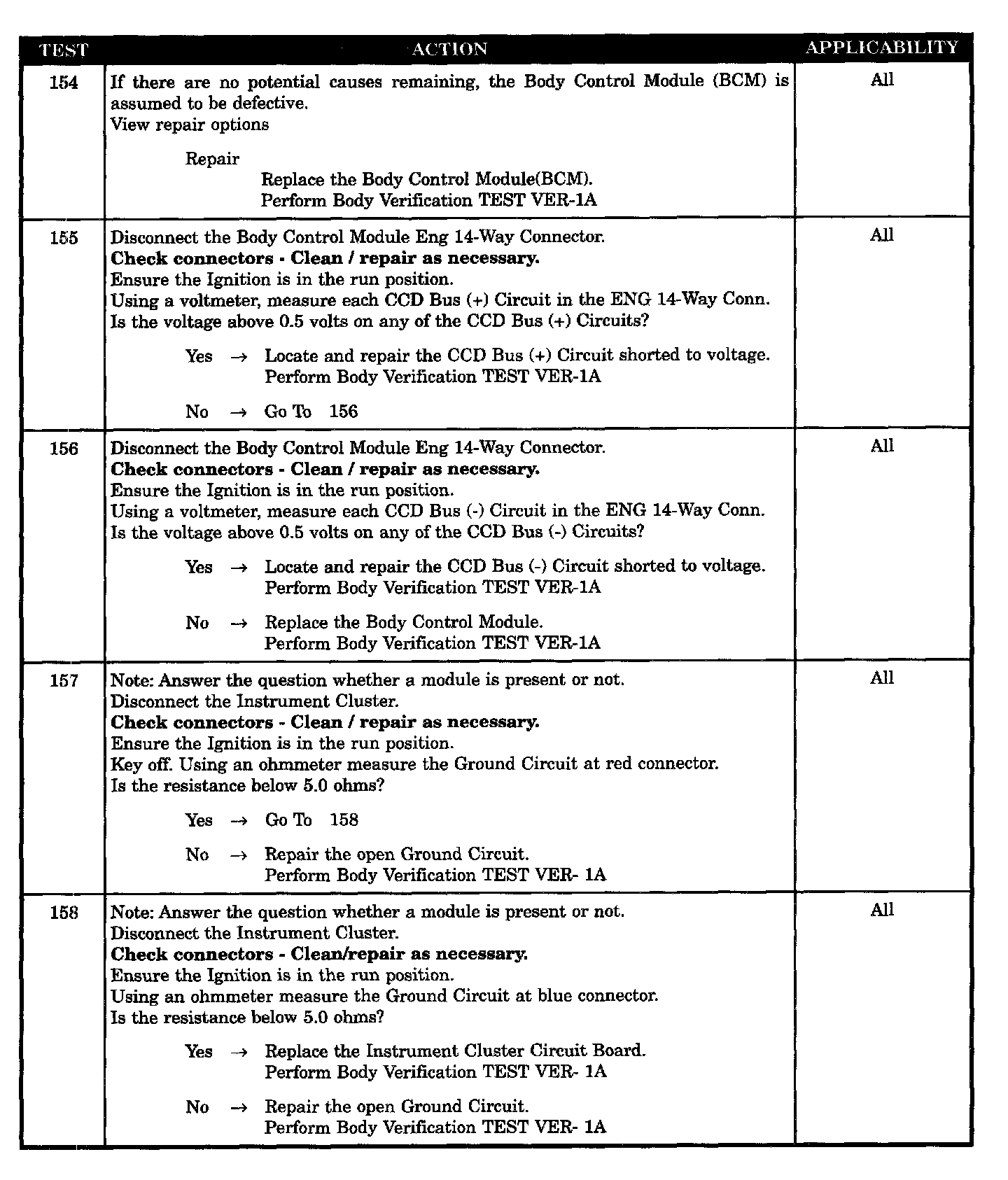

Tests 154 - 158:

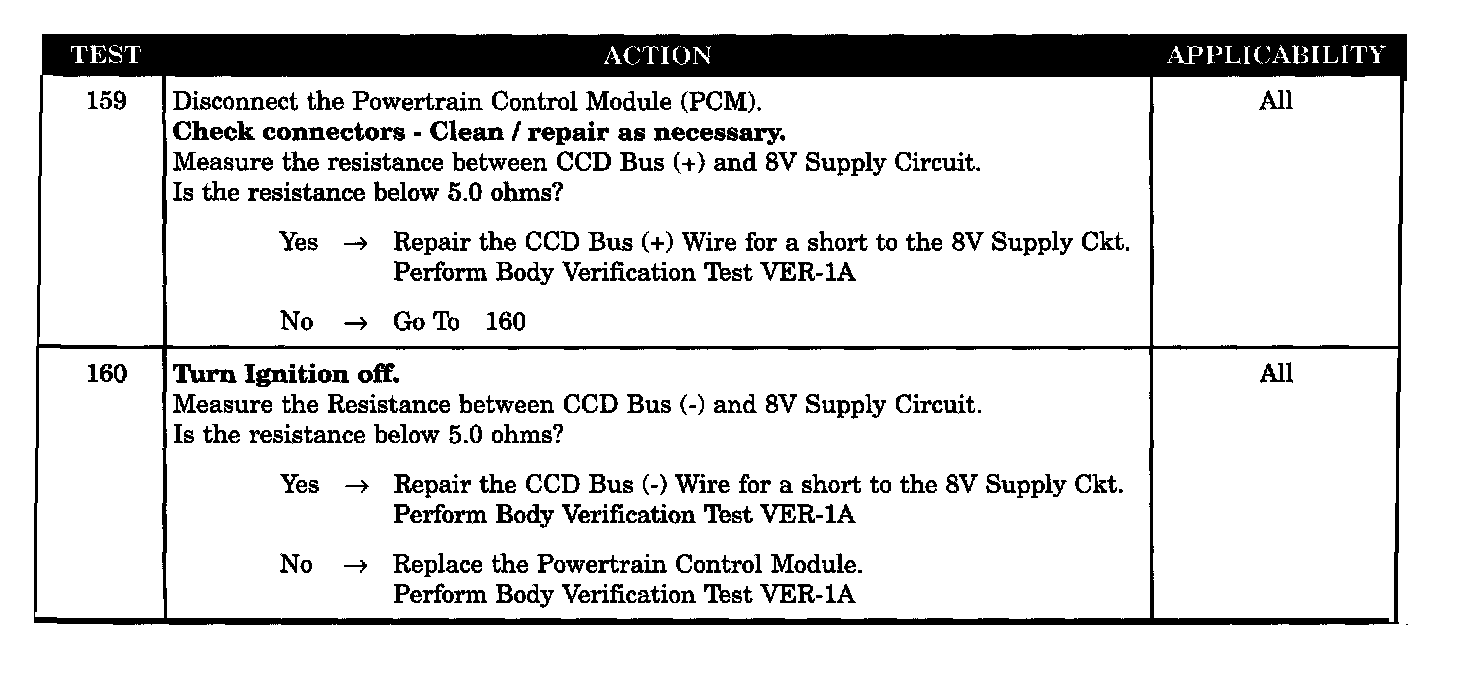

Tests 159 - 160:

SYMPTOM
* CCD SHORT TO BATTERY

POSSIBLE CAUSES
- Defective DRB/short to battery
- CCD cab circuit short to battery
- CCD IC GND CKT red open
- CCD bus (+) CKT-short to voltage
- CCD bus (-) CKT- short to voltage
- CCD bus (-) short to 8V supply circuit
- CCD IC GND CKT blue open
- CCD bus (+) short to 8V supply circuit
- CCD B+ short to voltage> 0.5
- CCD bus(-) short to voltage
- CCD BCM short to battery default
- CCD ACM short to battery
- CCD skim short to battery
- CCD TCM short to battery
- Defective BCM- engine connector
- IC defect GND CKT open
- PCM defect bus (-) short to 8 V
