Bus Bias Level Too High

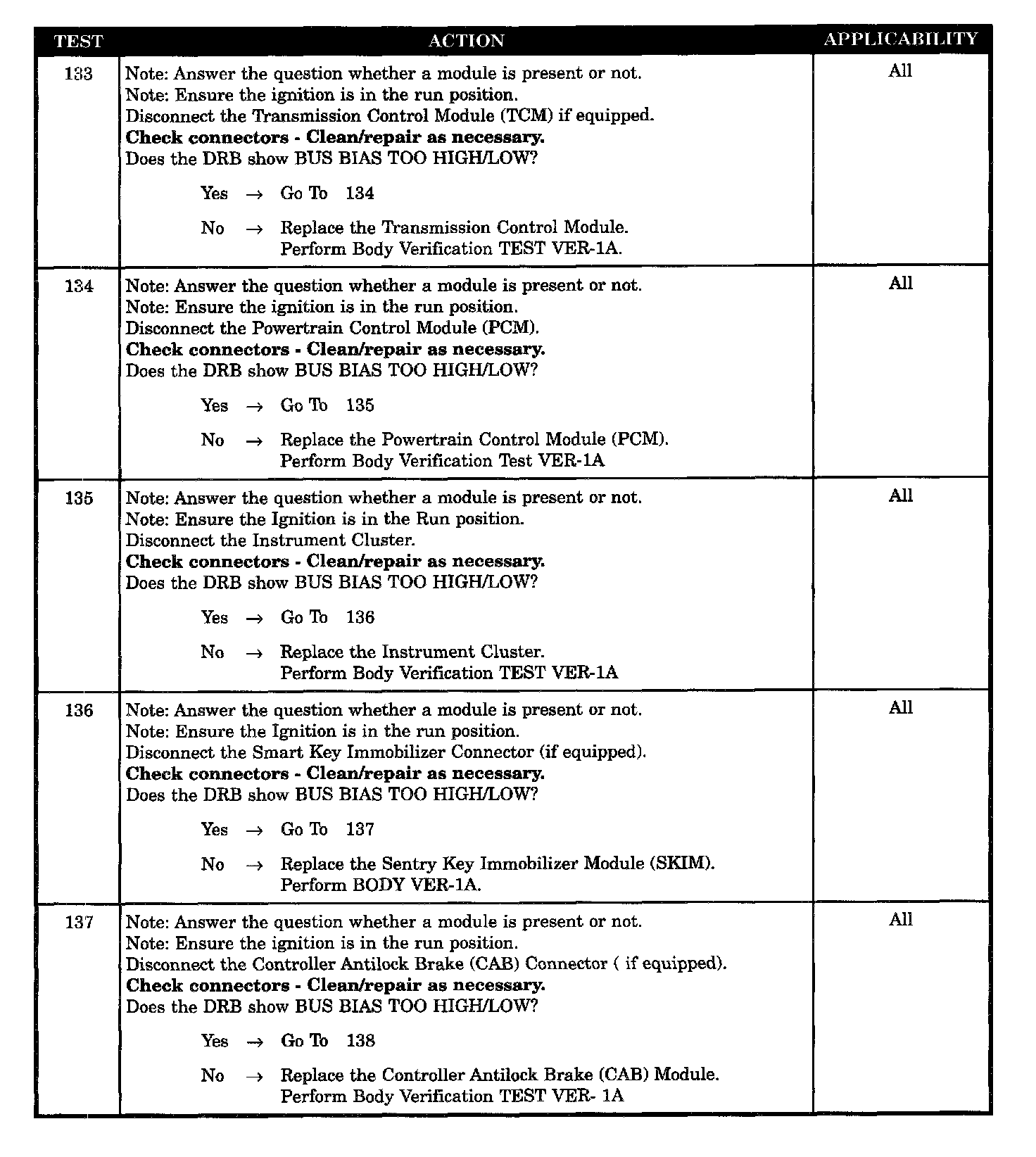

Tests 133 - 137:

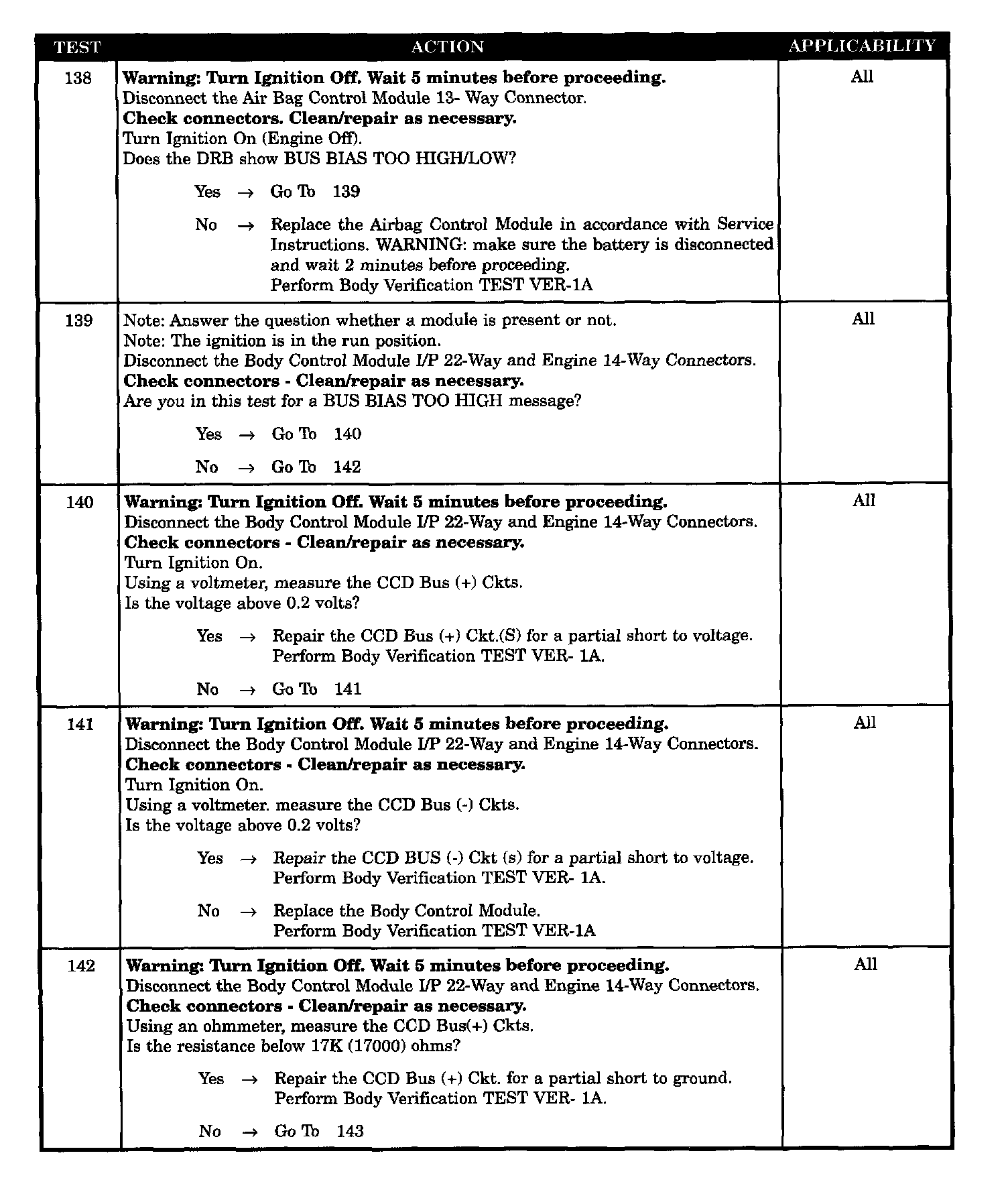

Tests 138 - 142:

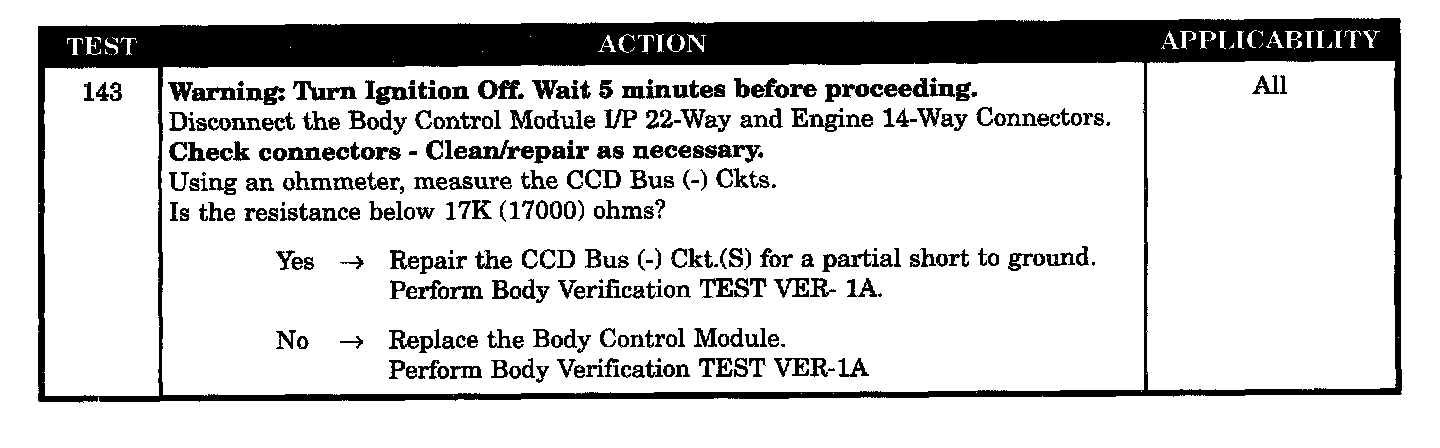

Test 143:

SYMPTOM LIST
* BUS BIAS LEVEL TOO HIGH

TEST NOTE All symptoms listed above are diagnosed using the same tests. The title for the tests will be * BUS BIAS LEVEL TOO HIGH.

POSSIBLE CAUSES
- CCD bus (+) CKT (s)-PSHT/GND
- CCD bus (+) CKT(s)- PSHT/volt
- CCD bus (-) CKT (s)-PSHT/GND
- CCD bus (-) CKT (s)- PSHT/volt
- CCD IC bus bias high/low
- CCD PCM bias high/low
- CCD cab bias high/low
- CCD airbag control module bias high/low
- CCD skim bias high/low
- CCD TCM bias high/low
- Defective BCM-bus too high/low
