Bus (+) and Bus (-) Shorted Together

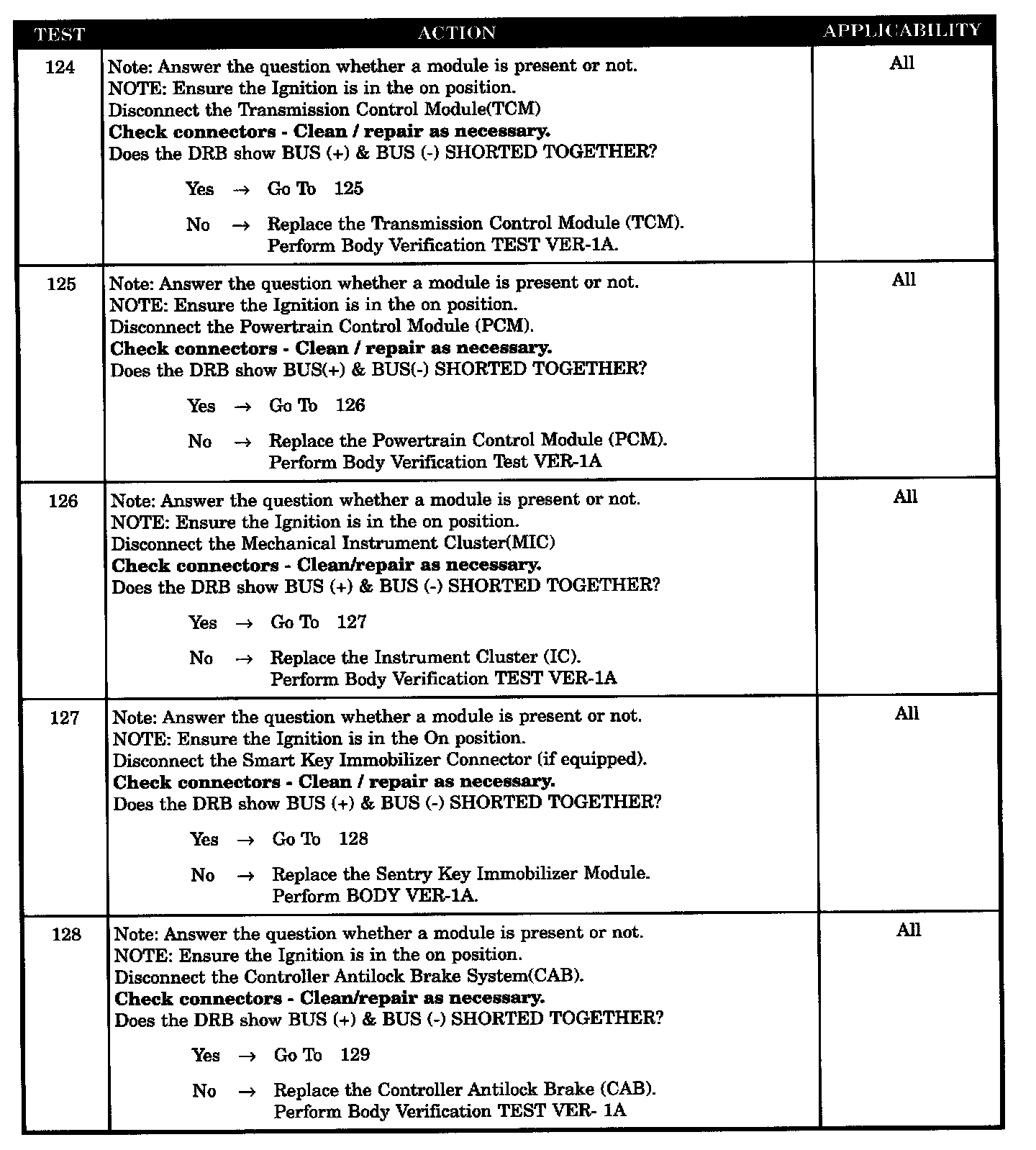

Tests 124 - 128:

Tests 129 - 132:

SYMPTOM
*BUS (+) AND BUS (-) SHORTED TOGETHER

POSSIBLE CAUSES
- Defective DRB/bus(+) short to bus(-)
- CCD bus circuit bus (+) short to bus (-)
- CCD IC bus(+) short to bus(-)
- CCD PCM bus (+) short to bus (-)
- CCD CAB bus (+) short to bus (-)
- CCD BCM bus(+) short to bus(-)
- CCD ACM bus(+) short to bus(-)
- CCD skim bus (+) short to bus (-)
- CCD TCM bus (+) short to bus (-)
