A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability Tests - Trouble Codes
>>
Checking Coolant Sensor Calibration
Checking Coolant Sensor Calibration

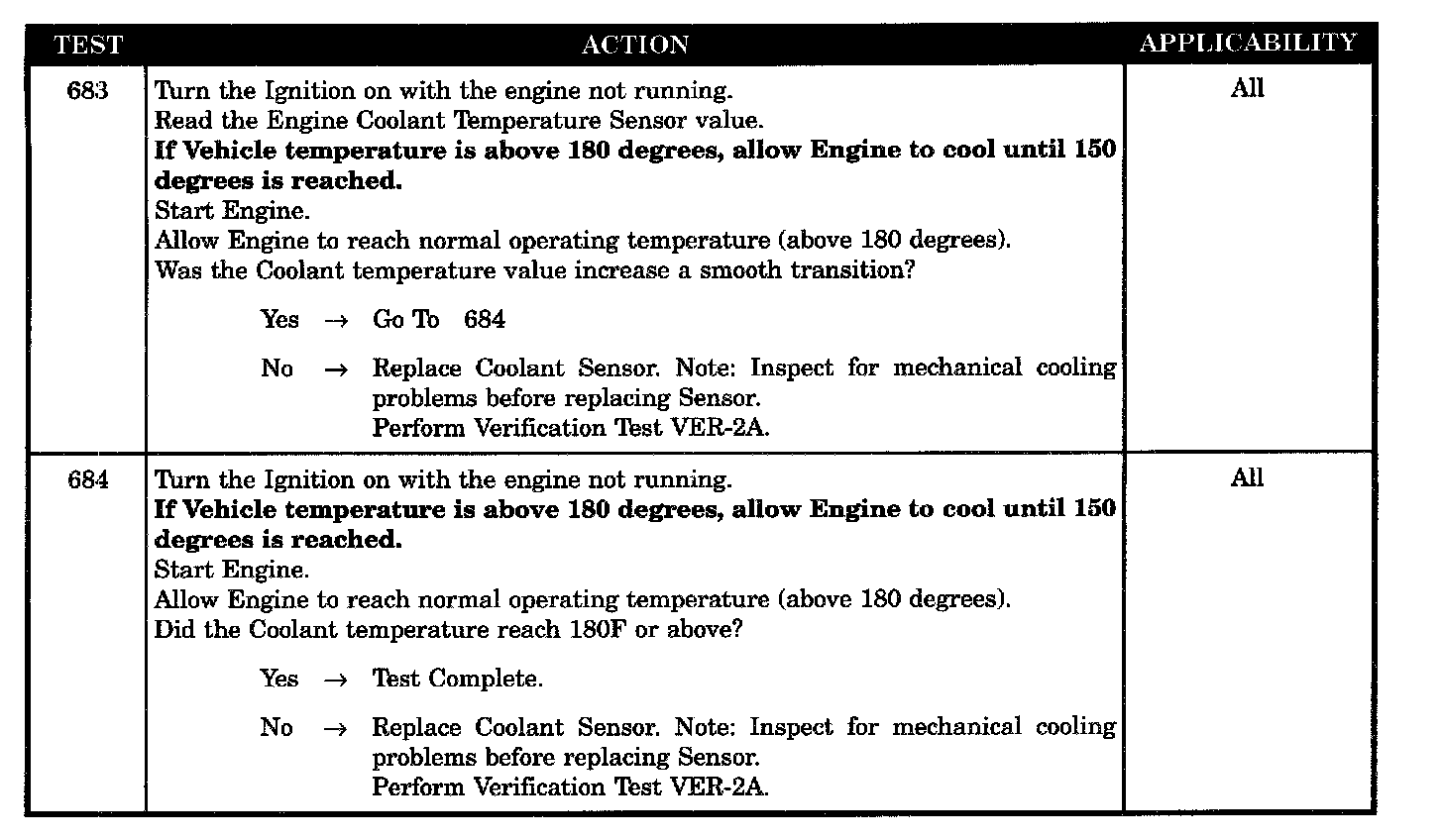

Tests 683 - 684:
SYMPTOM
* CHECKING COOLANT SENSOR CALIBRATION
POSSIBLE CAUSES
-
Coolant sensor defective
-
Coolant sensor operation not within spec
