CMTC Elapsed Time Inoperative

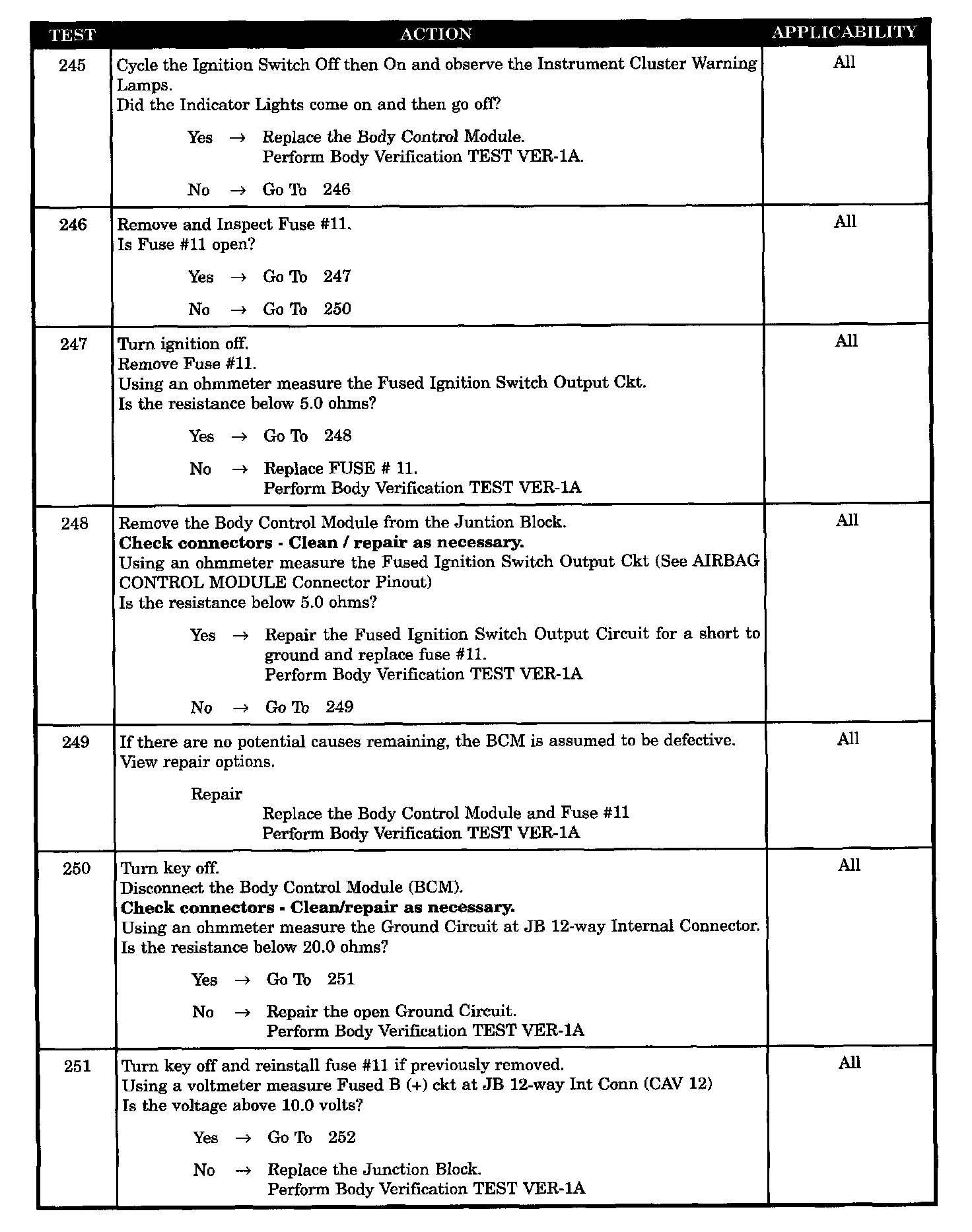

Tests 245 - 251:

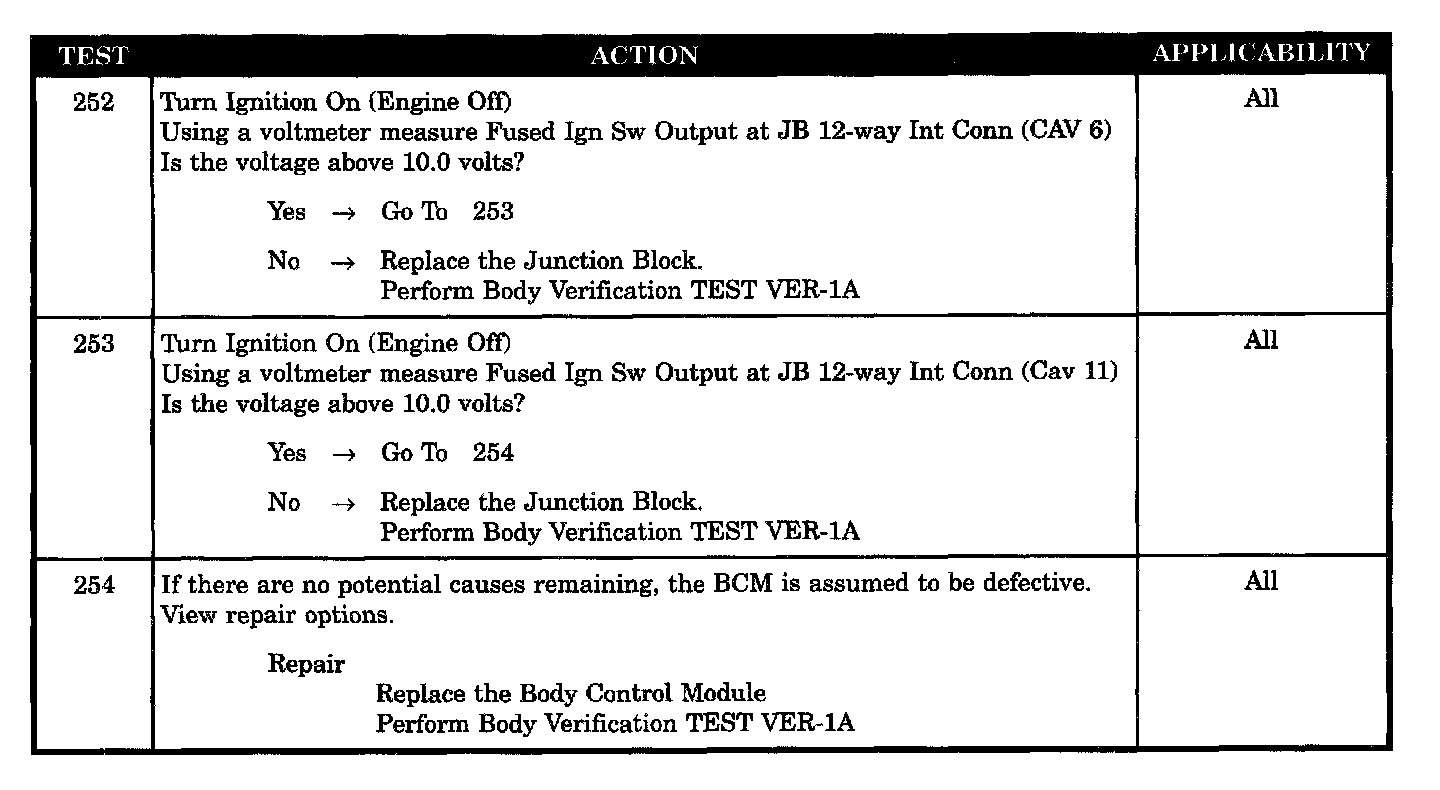

Tests 252 - 254:

SYMPTOM
* COMPASS/MINI-TRIP COMPUTER ELAPSED TIME INOPERATIVE

POSSIBLE CAUSES
- BCM defect - fused IGN SW out
- Fused IGN SW out CKT SHRT to GND - BCM
- DEF BCM/indicator lights
- CCD BCM ground circuit open
- BCM defect
- Fuse # 11 defective
- No response IGN SW output voltage
- No response fused B+ volt low
- No response fused IGN output voltage
