Chime Inoperative at All Times

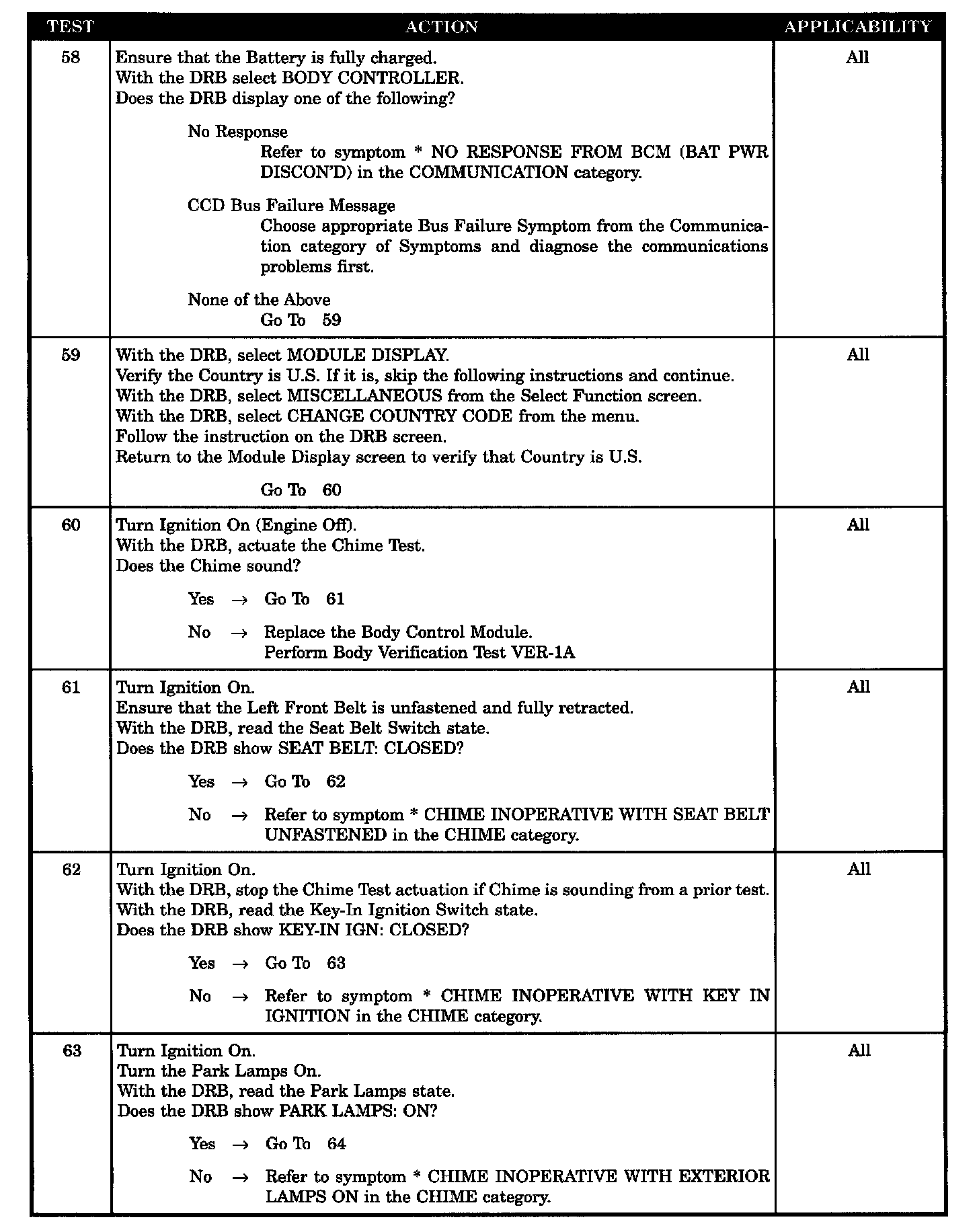

Tests 58 - 63:

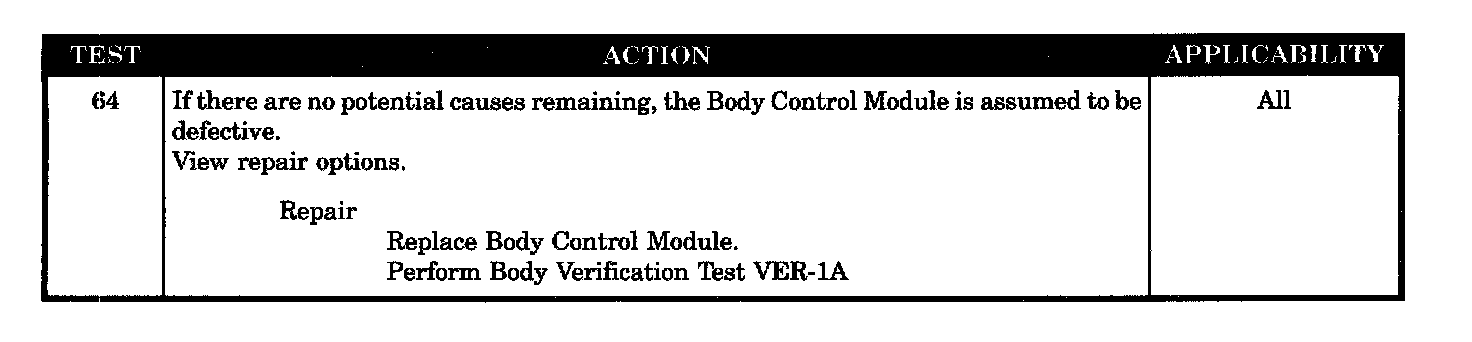

Test 64:




SYMPTOM
* CHIME INOPERATIVE AT ALL TIMES

POSSIBLE CAUSES
- BCM chime default defective
- BCM fails chime test
- No response/CCD bus failure (BCM)
