Chime Inoperative With Key In Ignition

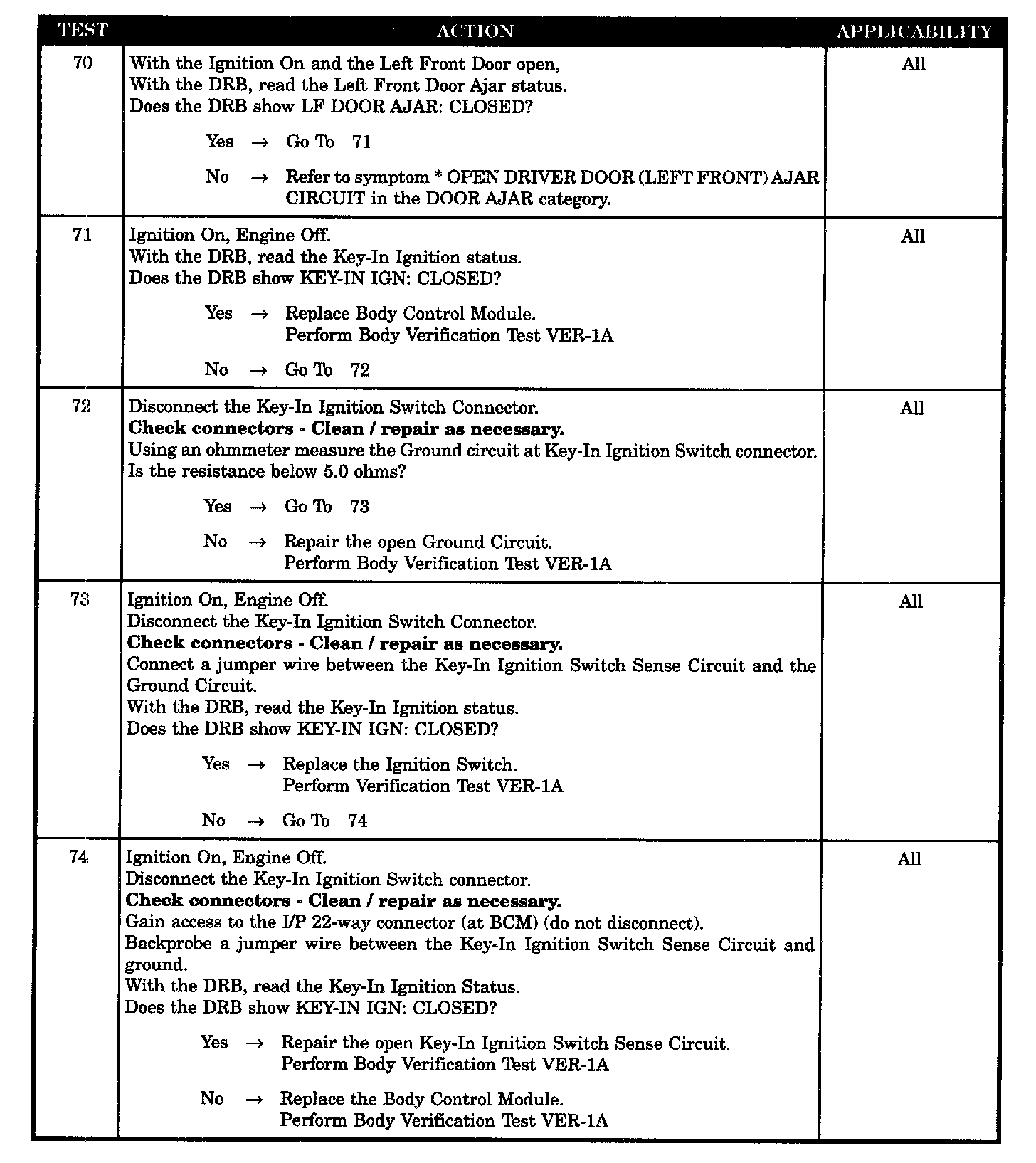

Tests 70 - 74:
SYMPTOM
* CHIME INOPERATIVE WITH KEY IN IGNITION
POSSIBLE CAUSES
- Ignition SW ground circuit open
- Key in ignition SW sense CKT open
- Ignition SW - key in SW open
- BCM no chime to key in ignition
- BCM not responding to key in SW
