Chime Inoperative With Exterior Lamps On

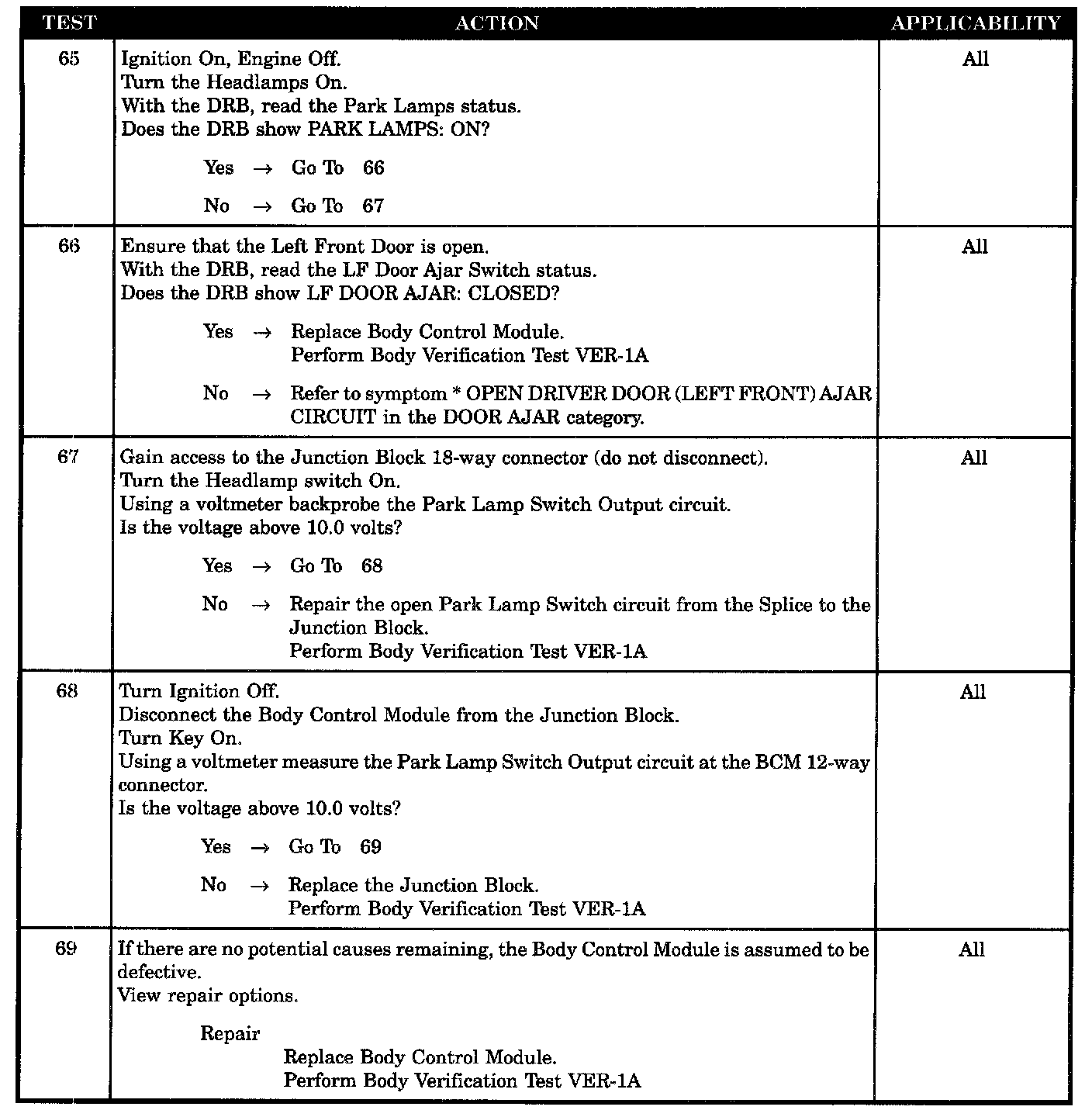

Tests 65 - 69:

SYMPTOM
* CHIME INOPERATIVE WITH EXTERIOR LAMPS ON

POSSIBLE CAUSES
- Park lamp switch CKT to BCM open
- Junction block - park lamp switch circuit open
- BCM not responding- LF door ajar
- BCM not responding- park lamp SW
