Wipers Run Constantly W/Ignition ON

Tests 968 - 972:

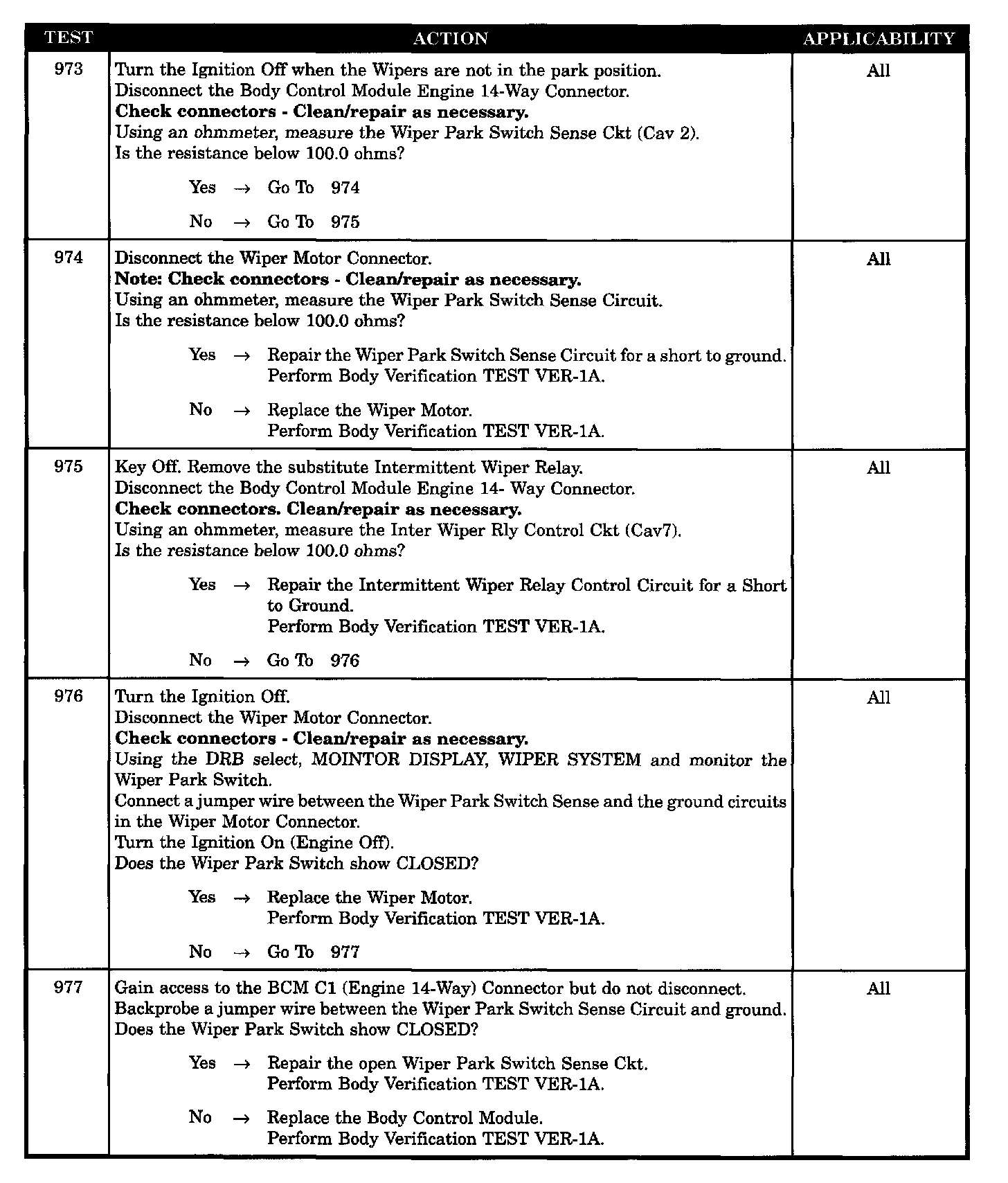

Tests 973 - 977:

SYMPTOM
* WIPERS RUN CONSTANTLY W/IGNITION ON

POSSIBLE CAUSES
- INTERM wiper relay control CKT SH/GND
- INTERM wiper RLY/SUBSTI relay
- W/wiper SW signal CKT-SH/Volts
- Wiper park switch sense circuit - short to ground
- Wiper park switch sense circuit open
- DEF multi-function SW/SW CONN
- Defective wiper motor/wipers run constantly
- DEF BCM-WIPERS SW SIG CKT
- Defective BCM- wipers run constantly
- Defective wiper motor-runs constantly
