Wipers Not Working/Hi Speed

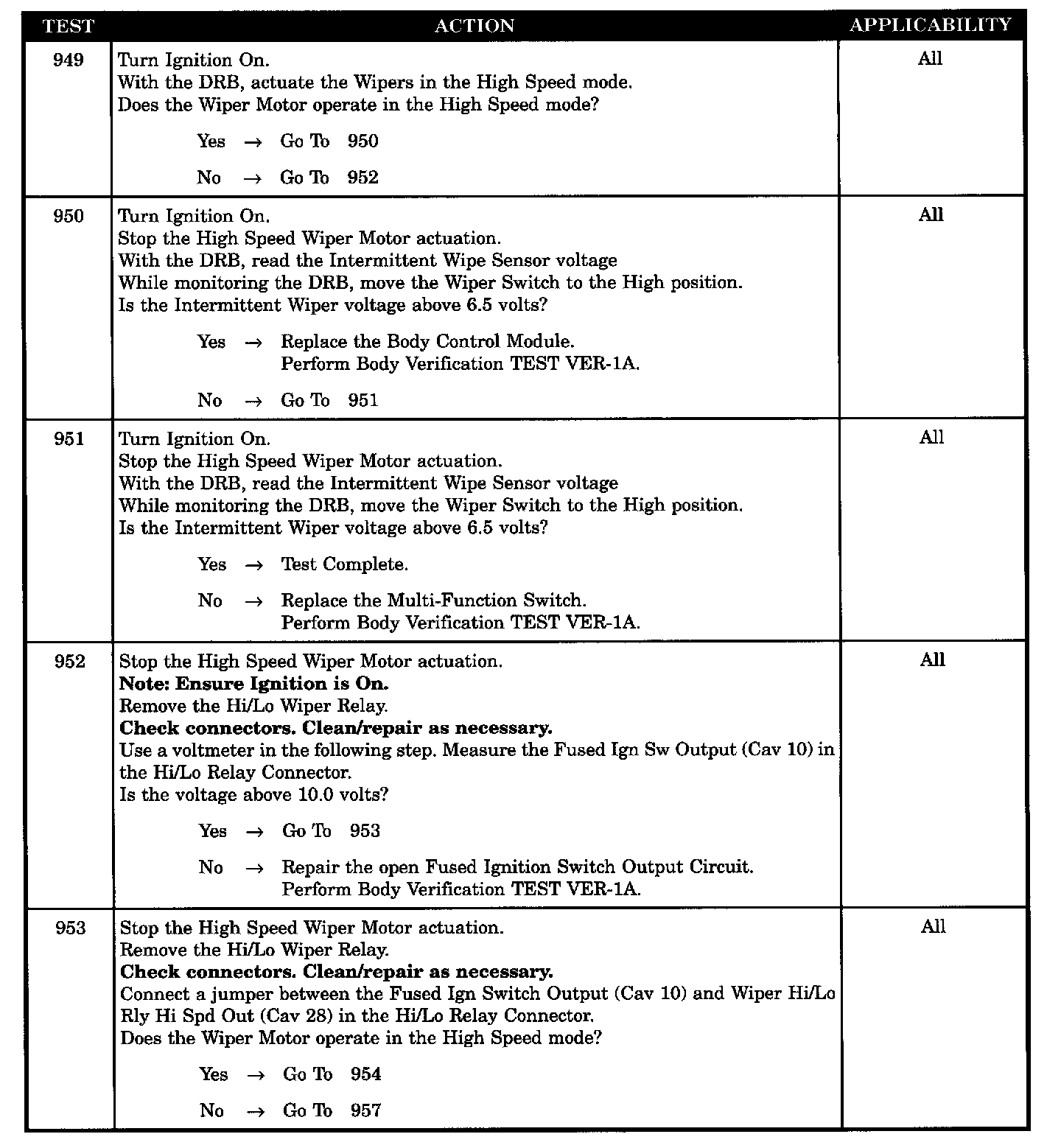

Tests 949 - 953:

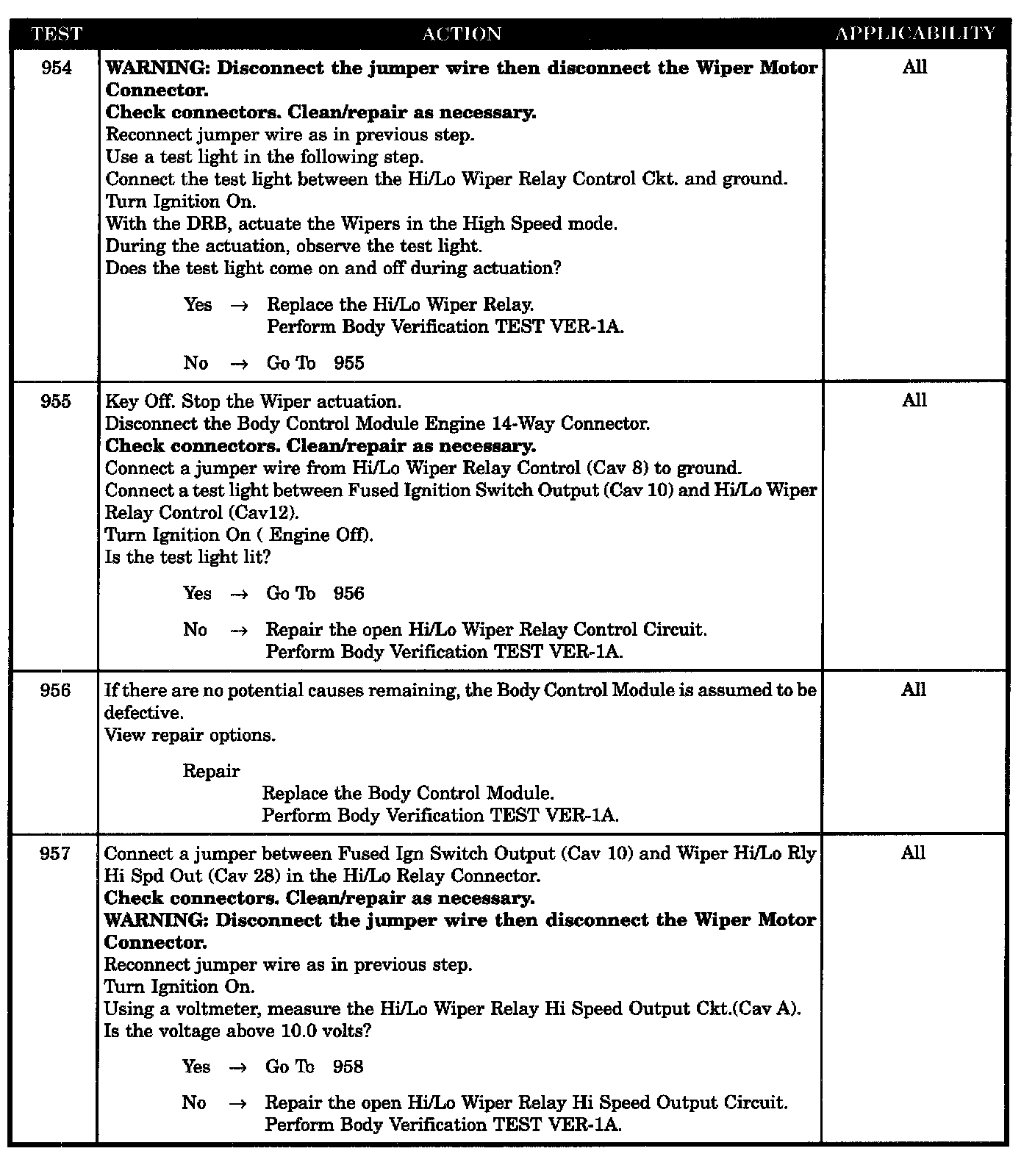

Tests 954 - 957:

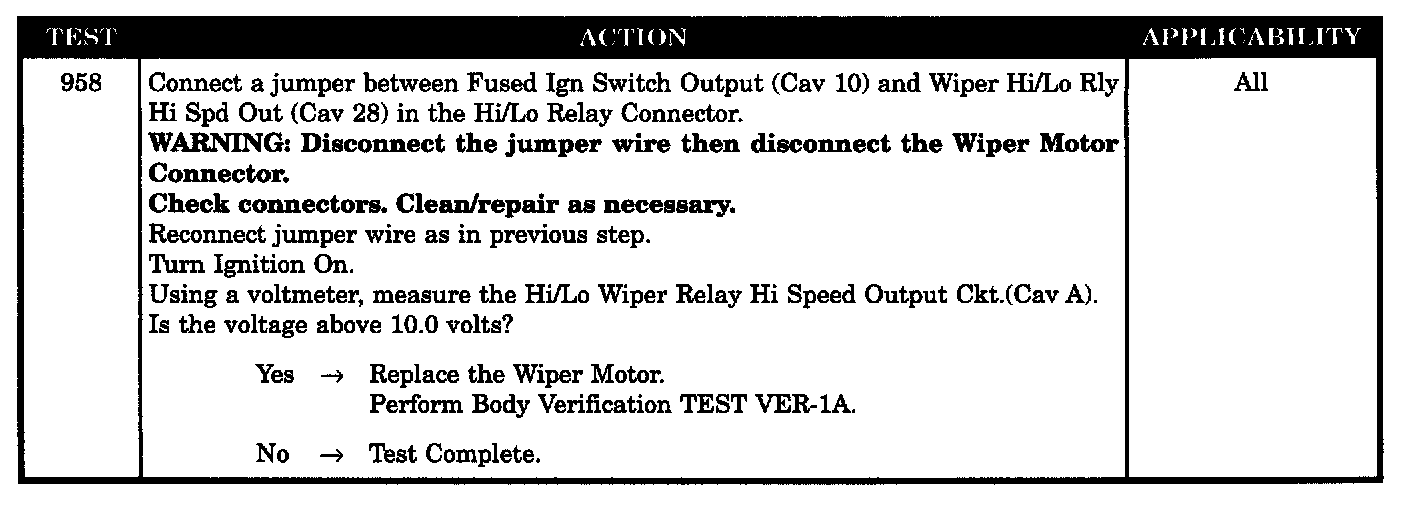

Test 958:

SYMPTOM
* WIPERS NOT WORKING/HI SPEED

POSSIBLE CAUSES
- Open HI/LO wiper relay control circuit
- Open HI/LO wiper relay HI speed output circuit
- Open fused ignition output circuit- HI/LO wiper relay
- DEF HI/LO Wiper RLY-actuation
- DEF multi-function SW/INTERM voltage
- DEF wiper motor/H-L wiper RLY HI speed
- BCM-HI/LO wiper default
- DEF BCM/multi-function switch
