Wipers Not Working At All

Tests 898 - 902:

Tests 903 - 908:

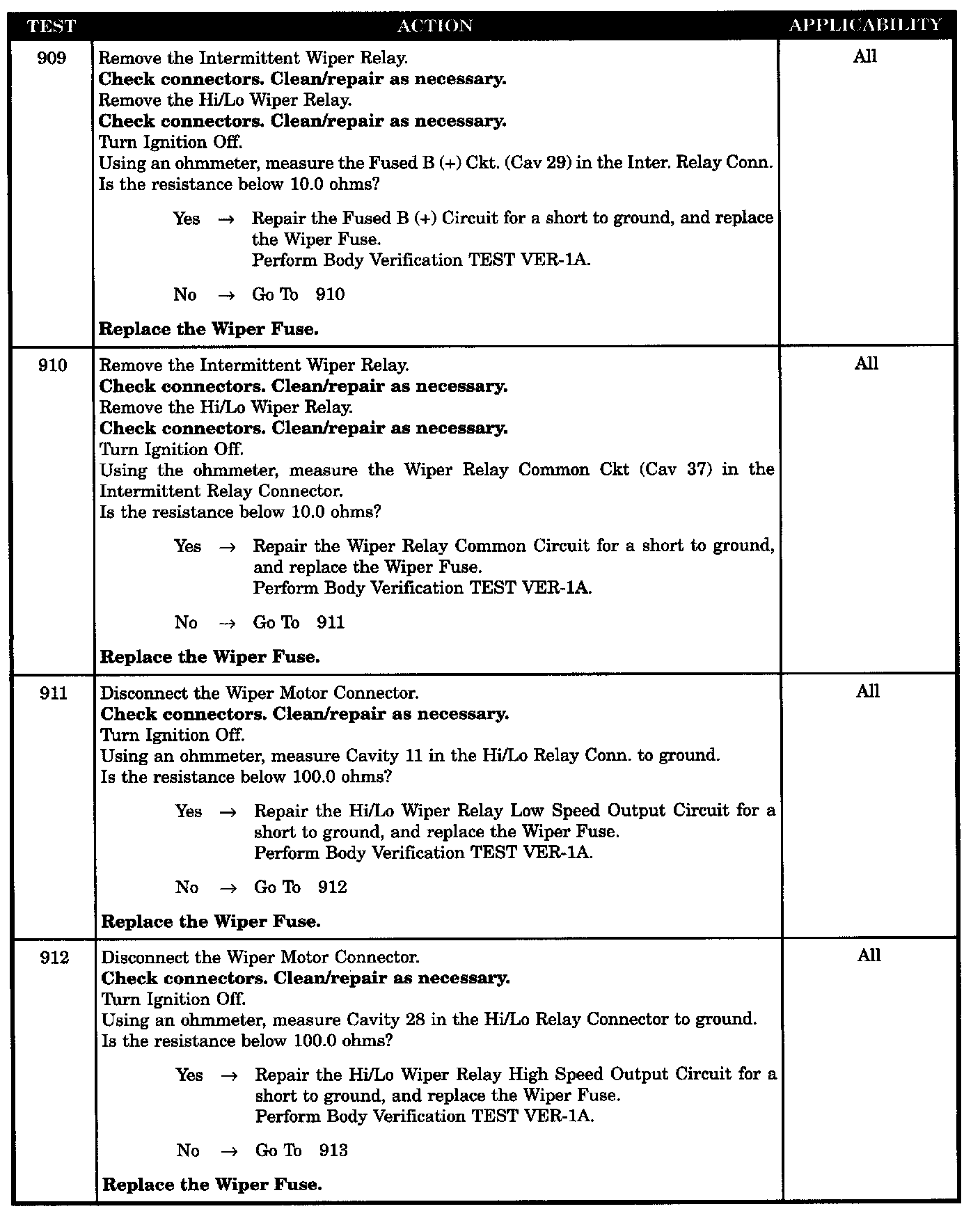

Tests 909 - 912:

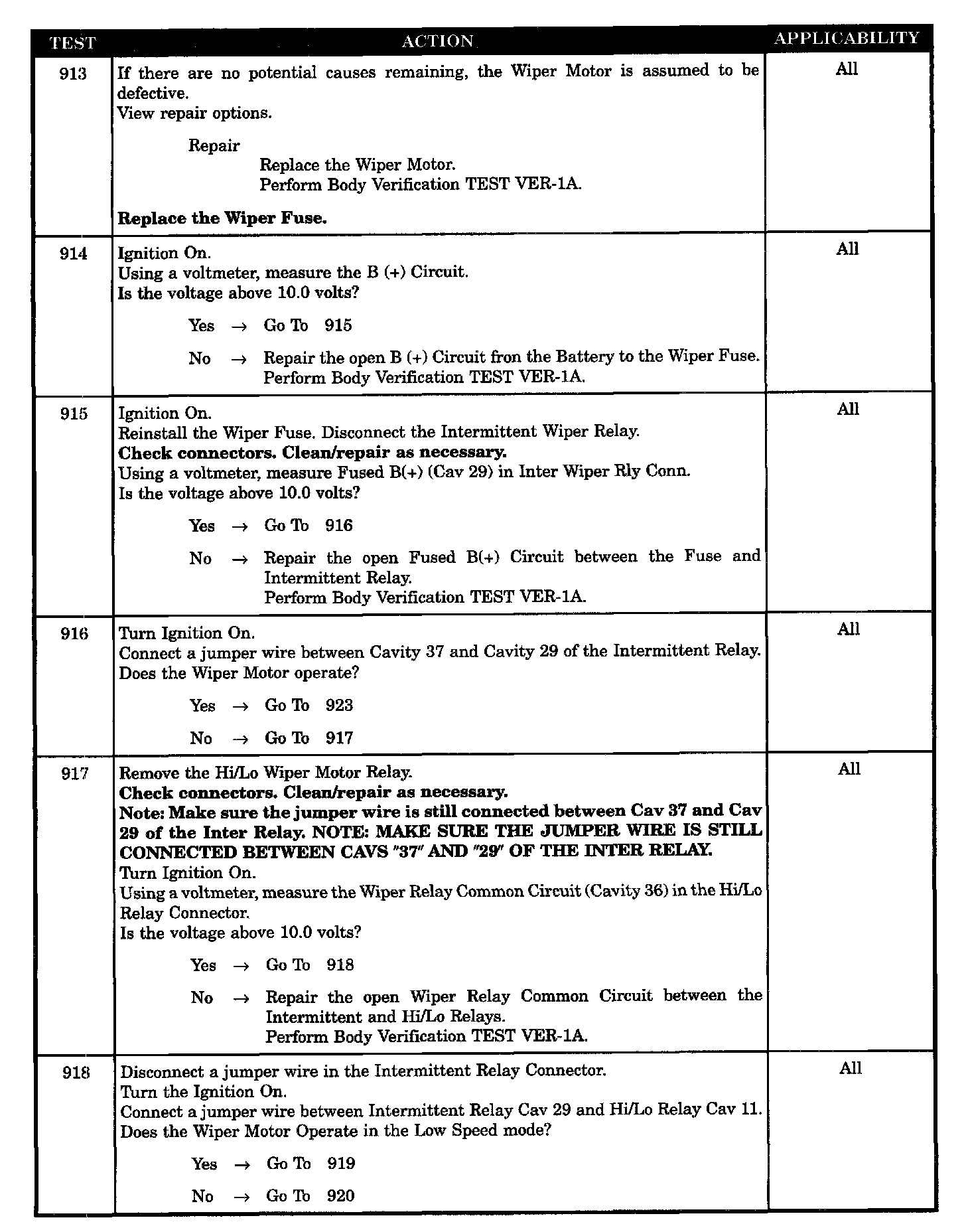

Tests 913 - 918:

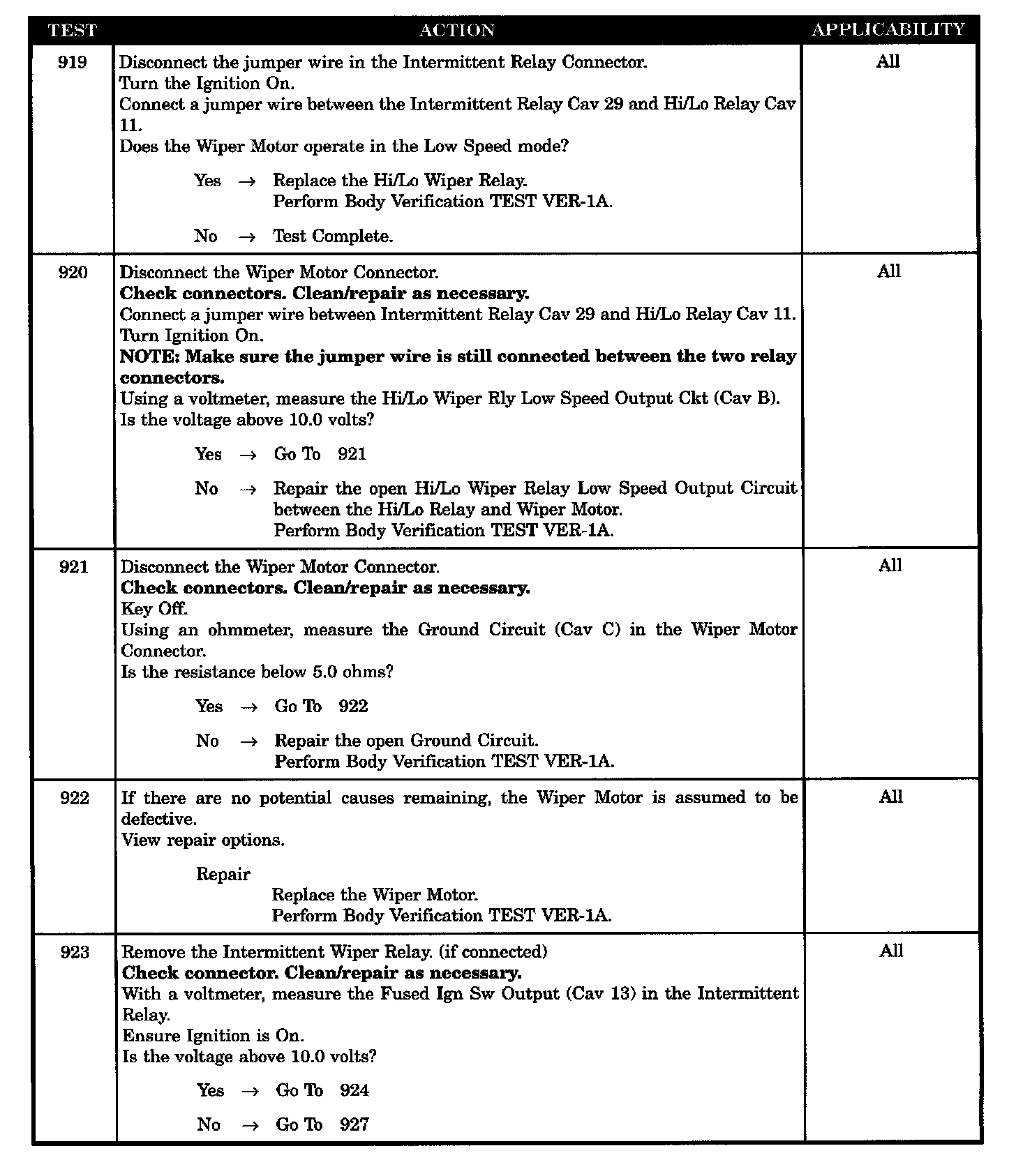

Tests 919 - 923:

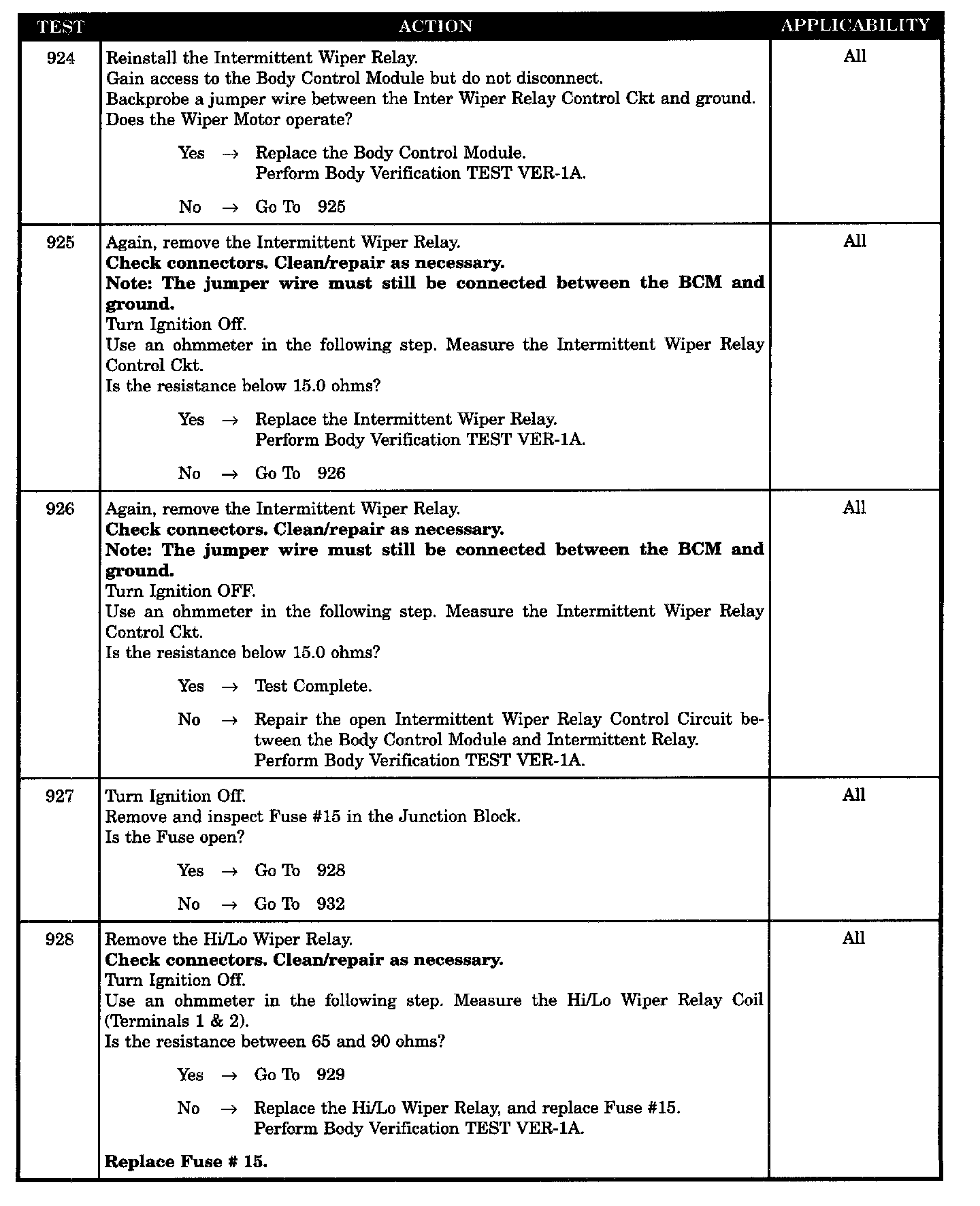

Tests 924 - 928:

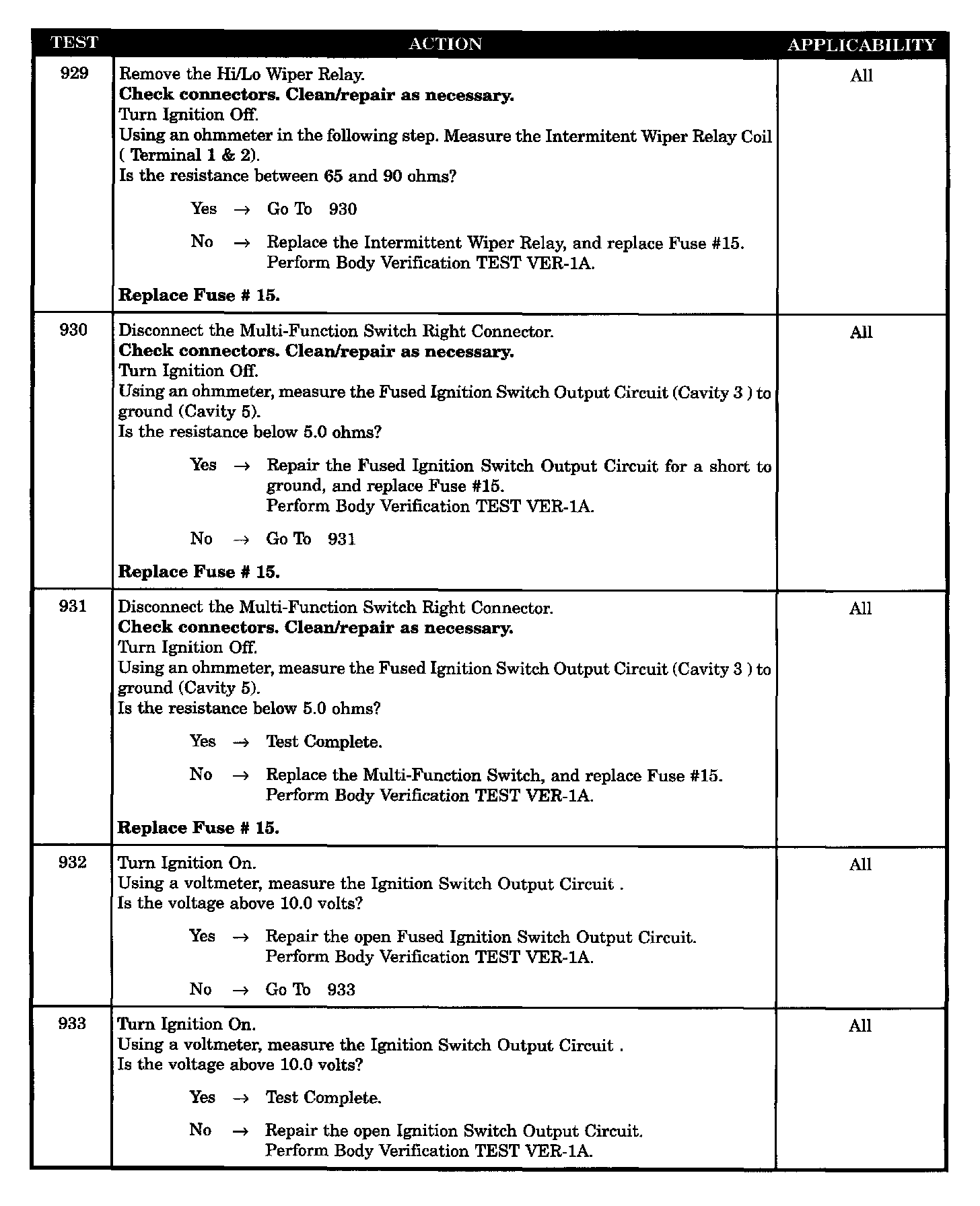

Tests 929 - 933:

SYMPTOM
* WIPER NOT WORKING AT ALL

POSSIBLE CAUSES
- SCI/PCI comm failure- bus operational
- Open B (+) circuit- battery/wiper fuse
- Open ignition switch output circuit
- DEF intermittent wiper relay
- DEF intermittent wiper Relay/RLY coil
- Fused B (+) circuit short/GND
- HI/LO wiper relay hi speed output circuit- short/GND
- Open fused B(+) circuit-between fuse/intermittent relay
- Open ground circuit
- Open intermittent wiper relay control circuit
- Open wiper relay common circuit between intermittent-HI/LO relay
- Wiper relay common CKT SH/GND
- HI/LO wiper relay lo speed output circuit- short/GND
- Open HI/LO wiper LO speed output circuit between HI/LO relay-WM
- Open wiper switch signal circuit between SW/BCM
- Wiper switch signal CKT short/ground
- Fused ignition switch output CKT SH/GND
- Open fused ignition switch output circuit
- Open fused ignition switch output circuit- switch/fuse #15
- DEF HI/LO wiper relay- wiper motor
- DEF HI/LO wiper relay-relay coil
- DEF Multi-function switch/BCM
- DEF multi-function switch/fused ignition switch output CKT
- DEF wiper motor/ground CKT
- DEF wiper motor/H-L relay default
- DEF BCM default
- DEF BCM/wiper motor operate
- DEF BCM/wiper motor actuation
