Shorted Passenger (Right Front) Door Ajar Circuit

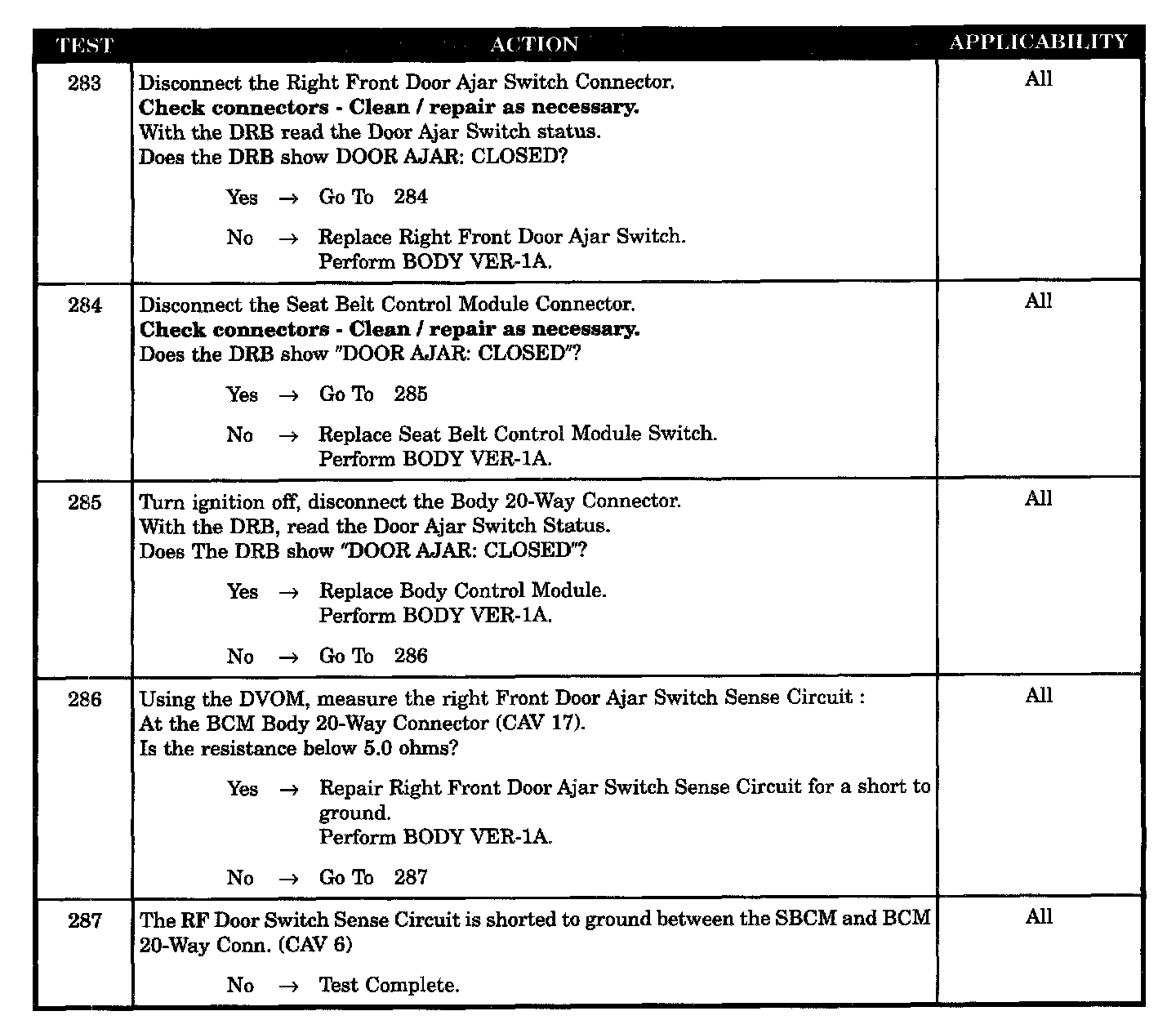

Tests 283 - 287:

SYMPTOM
* SHORTED PASSENGER (RIGHT FRONT) DOOR AJAR CIRCUIT

POSSIBLE CAUSES
- Right front door ajar switch DEF shorted (JX)
- Right front ajar sense CKT SCMB shorted (JX)
- Right front ajar switch CKT DEF < 5 ohms to GND (JX)
- Seat belt control module switch DEF open (JX)
- Body control module defective closed (JX)
