Shorted Driver Door Ajar Circuit

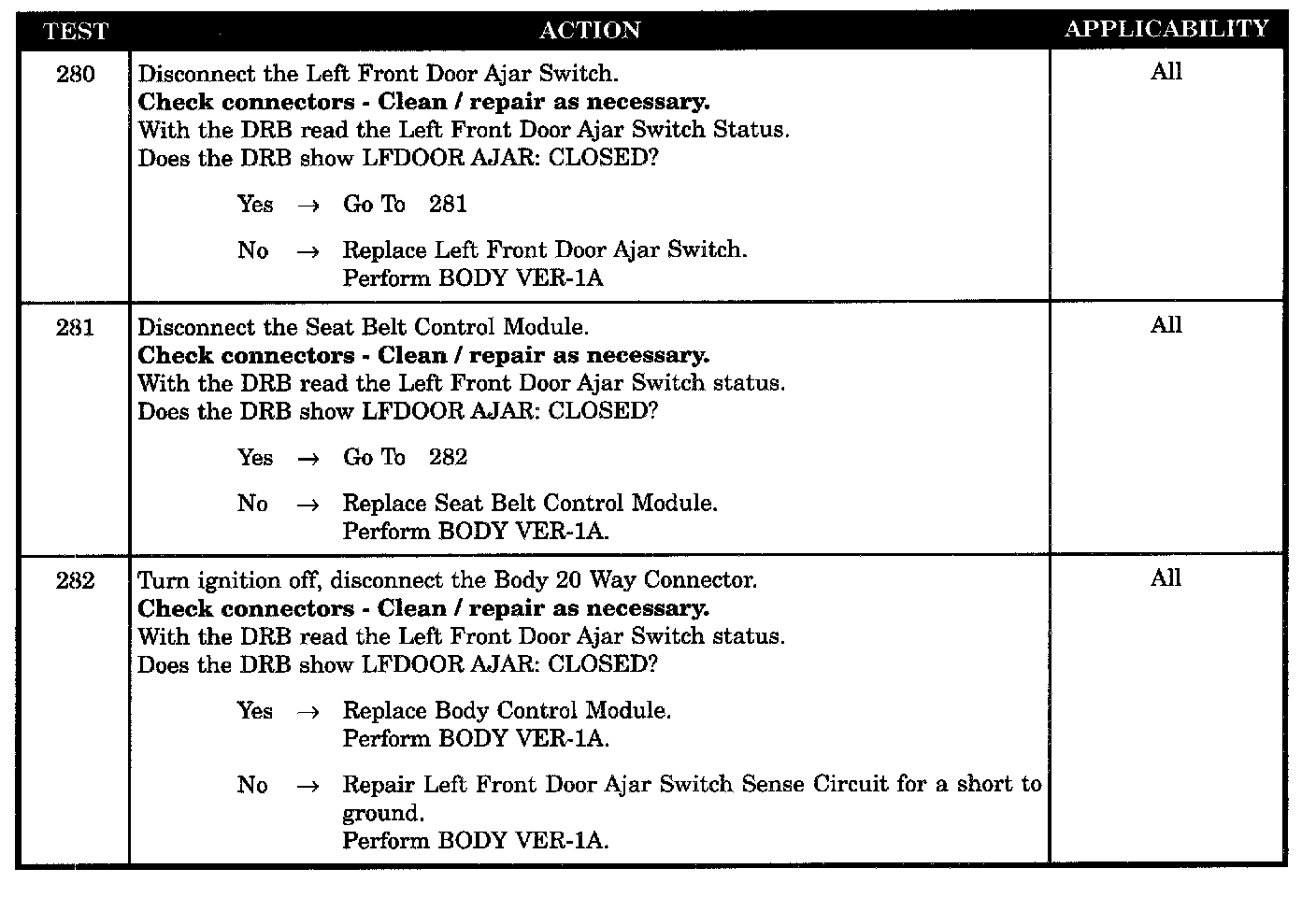

Tests 280 - 282:




SYMPTOM
* SHORTED DRIVER DOOR AJAR CIRCUIT

POSSIBLE CAUSES
- Left front door ajar switch (JX mod) DEF-short
- LF door ajar sense circuit (JX mod) shorted to GND
- Seat belt control module (JX mod) defective open
- Body control module (JX mod) defective closed
