Open Passenger (Right Front) Door Ajar Circuit

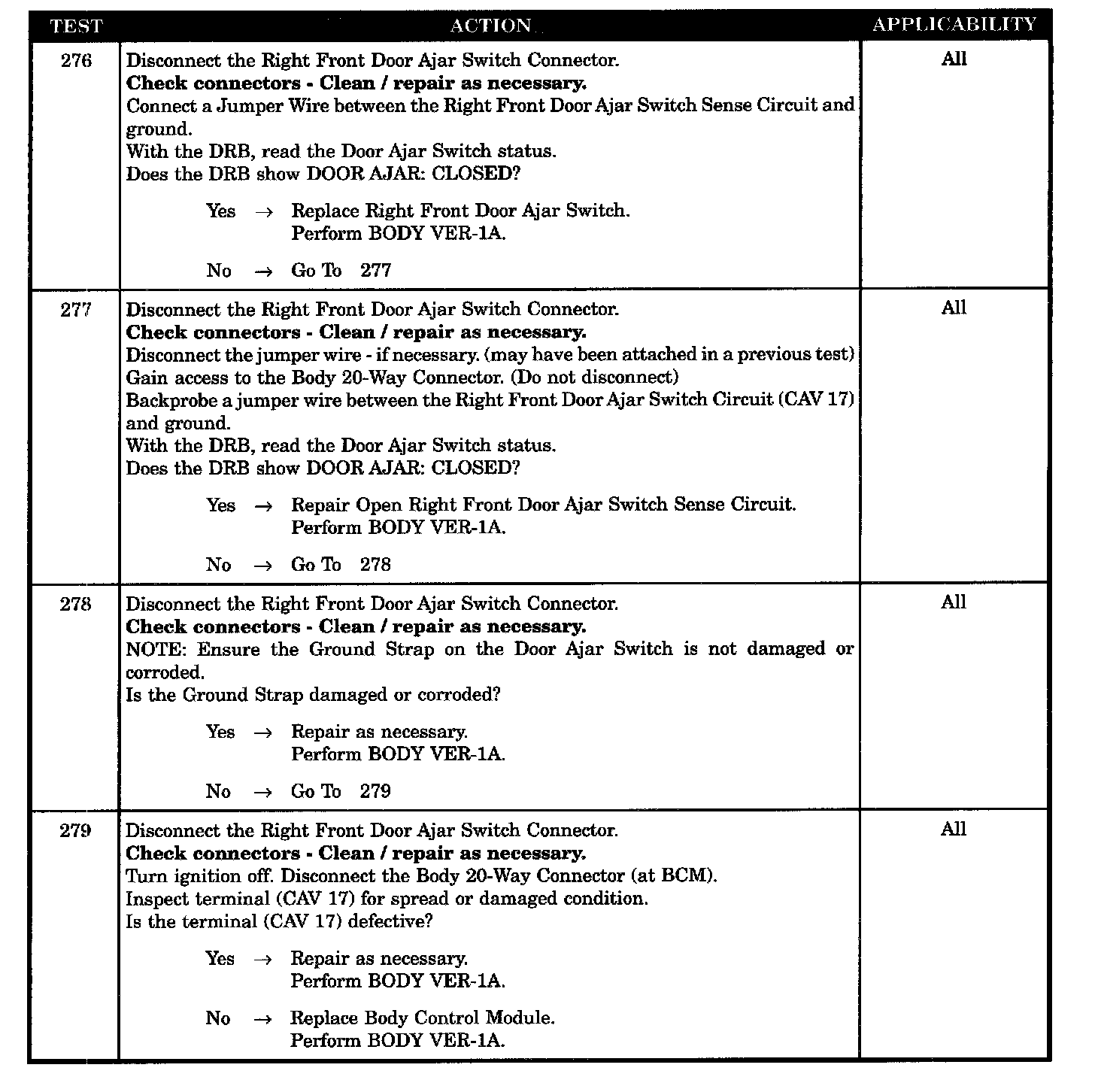

Tests 276 - 279:

SYMPTOM LIST
* OPEN PASSENGER (RIGHT FRONT) DOOR AJAR CIRCUIT

TEST NOTE All symptoms listed above are diagnosed using the same tests. The title for the tests Will be * OPEN PASSENGER (RIGHT FRONT) DOOR AJAR CIRCUIT.

POSSIBLE CAUSES
- RF door ajar (closed) switch defective (closed)
- RF door ajar switch sense circuit defective (closed)
- RF door switch ground strap corroded/damaged
- Body control module defective open input (CAV 17)
- Body 20-way connector defective (CAV 17)
