Traction Control Warning Lamp

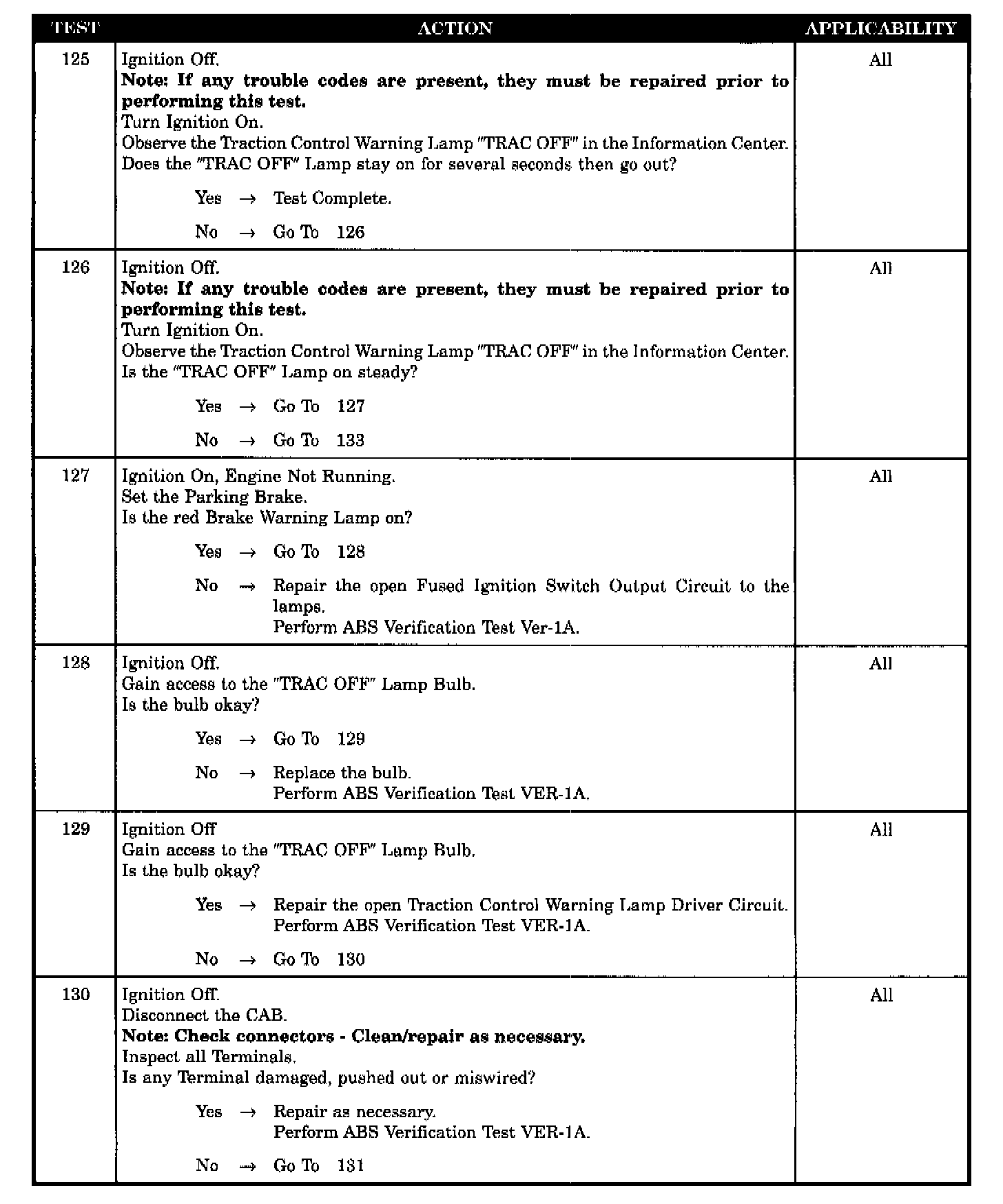

Tests 125 Through 130:

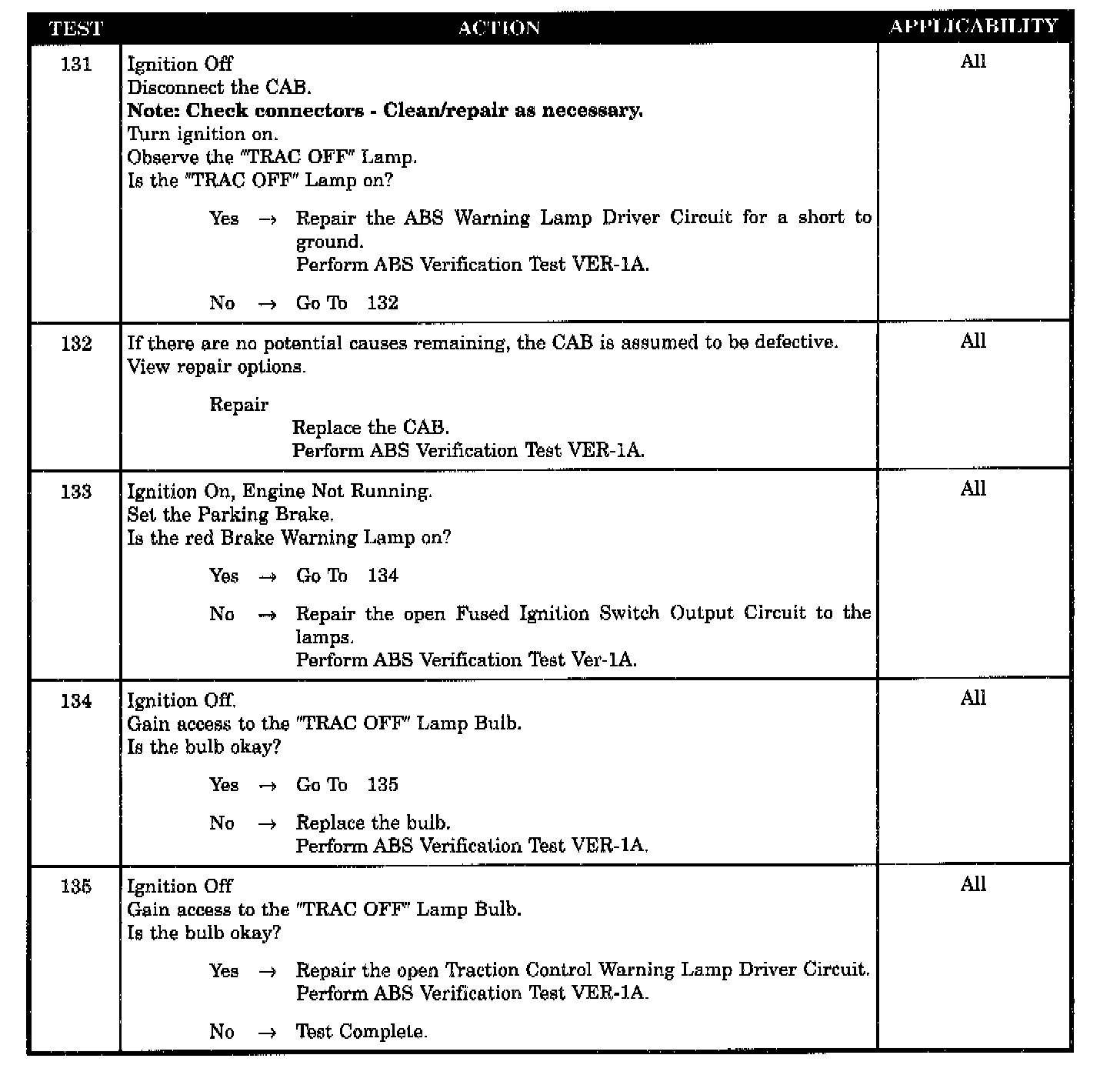

Tests 131 Through 135:

Symptom
TRACTION CONTROL WARNING LAMP

POSSIBLE CAUSES
CAB CONNECTOR TERMINALS OBSERVABLE DEFECTIVE
FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
TRAC OFF LAMP BULB DEFECTIVE
WARNING LAMP DRIVER CIRCUIT OPEN
WARNING LAMP DRIVER CIRCUIT SHORTED TO GROUND
CAB DEFECTIVE
