Traction Control Switch

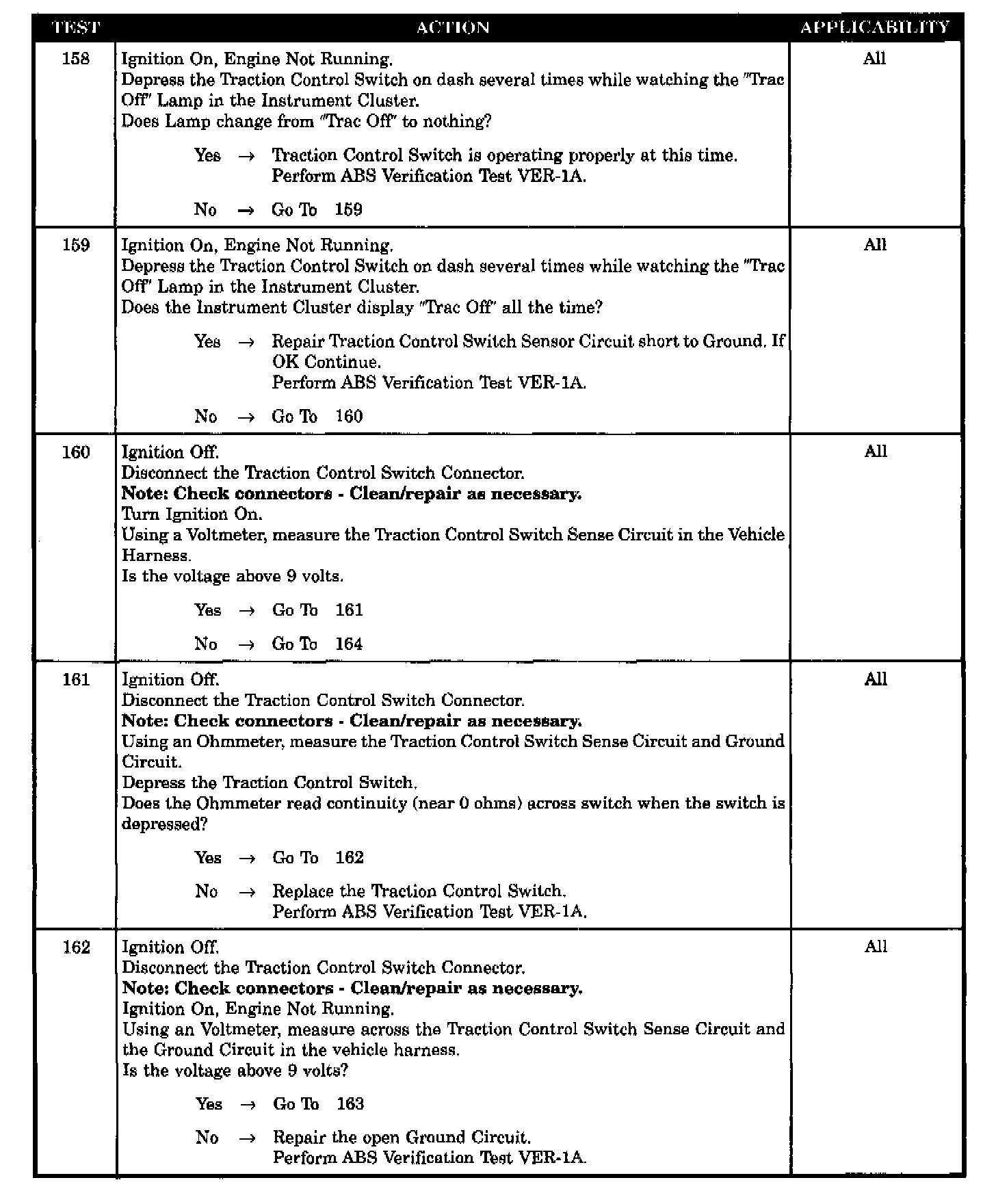

Tests 158 Through 162:

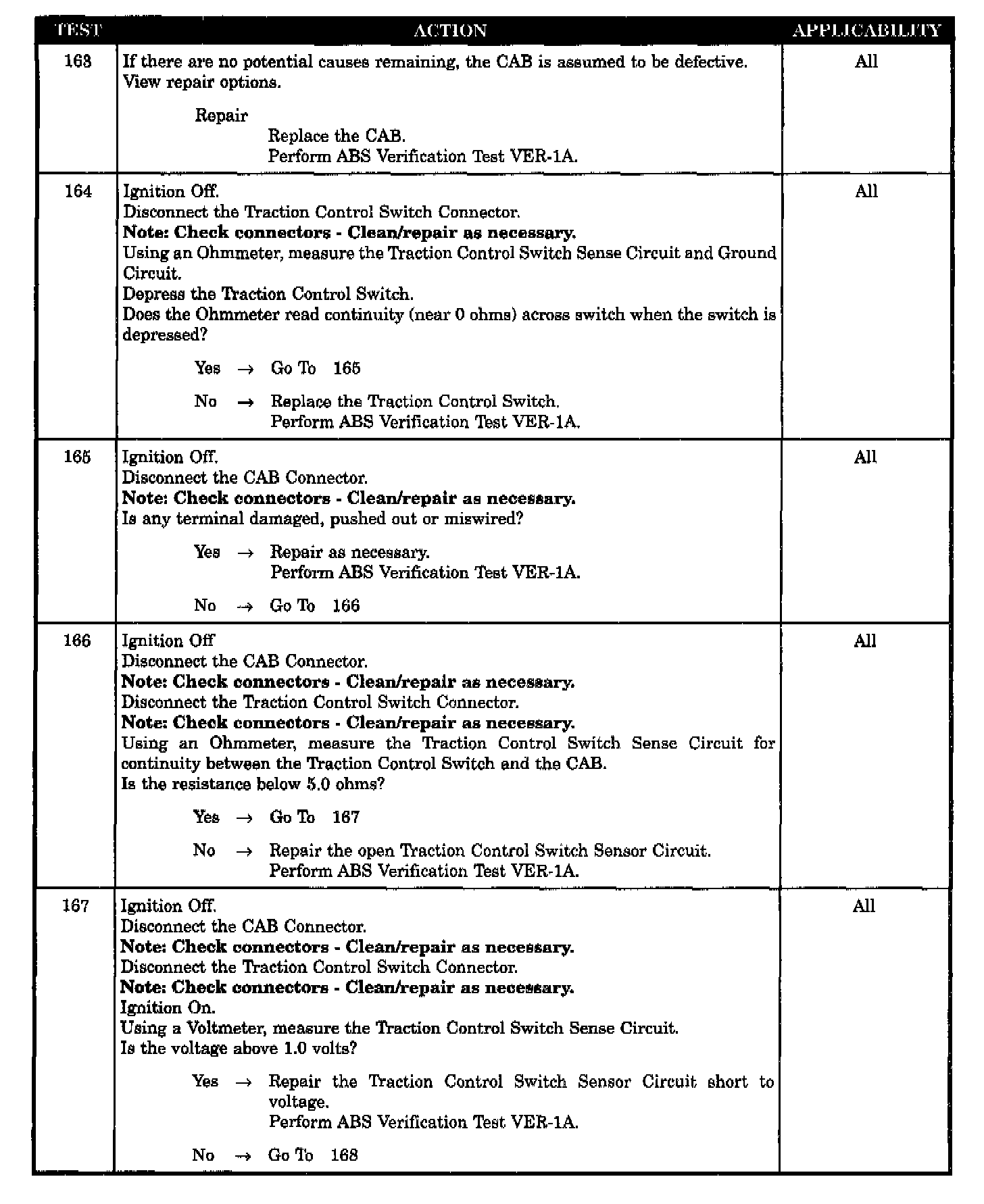

Tests 163 Through 167:

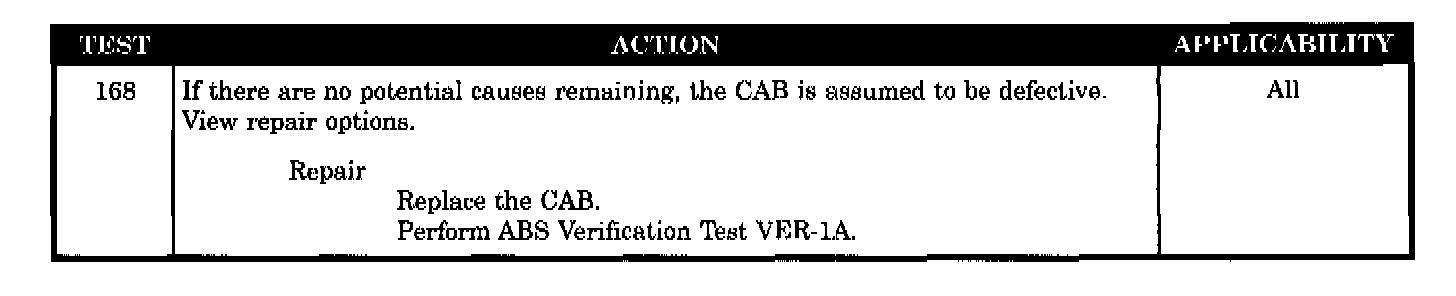

Test 168:

Symptom
TRACTION CONTROL SWITCH

POSSIBLE CAUSES
TRACTION CONTROL SWITCH OPERATING PROPERLY
CAB CONNECTOR OBSERVABLE DEFECT
TRACTION CONTROL SWITCH GROUND CKT OPEN
TRACTION CONTROL SWITCH DEFECTIVE
TRACTION CONTROL SWITCH SENSOR CIRCUIT OPEN
TRACTION CONTROL SWITCH SENSOR CKT SHORT TO B+
TRACTION CONTROL SWITCH SENSOR CKT SHORT TO GND
CAB DEFECTIVE (1)
CAB DEFECTIVE (2)
