Right Rear Sensor Circuit Failure

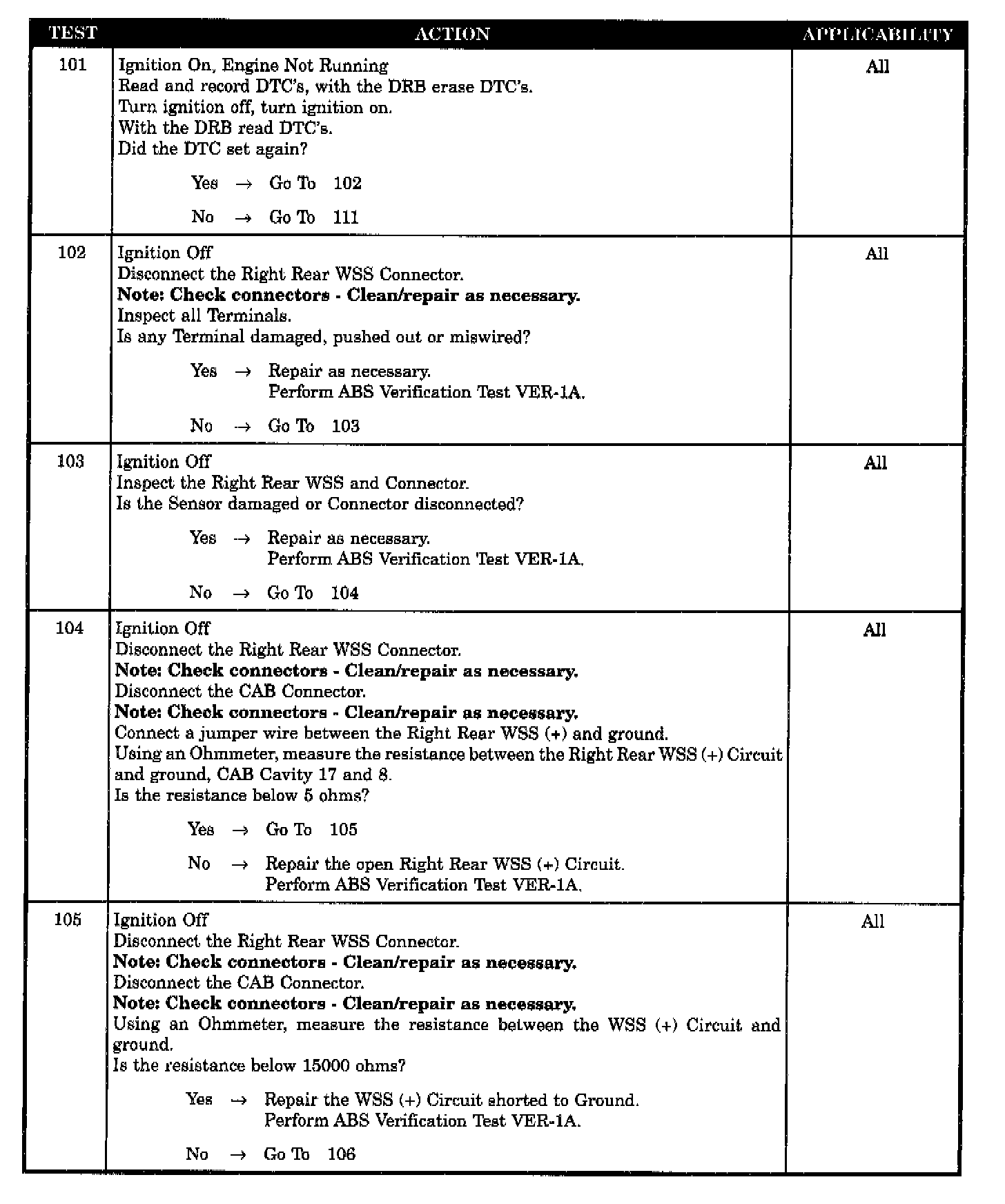

Tests 101 Through 105:

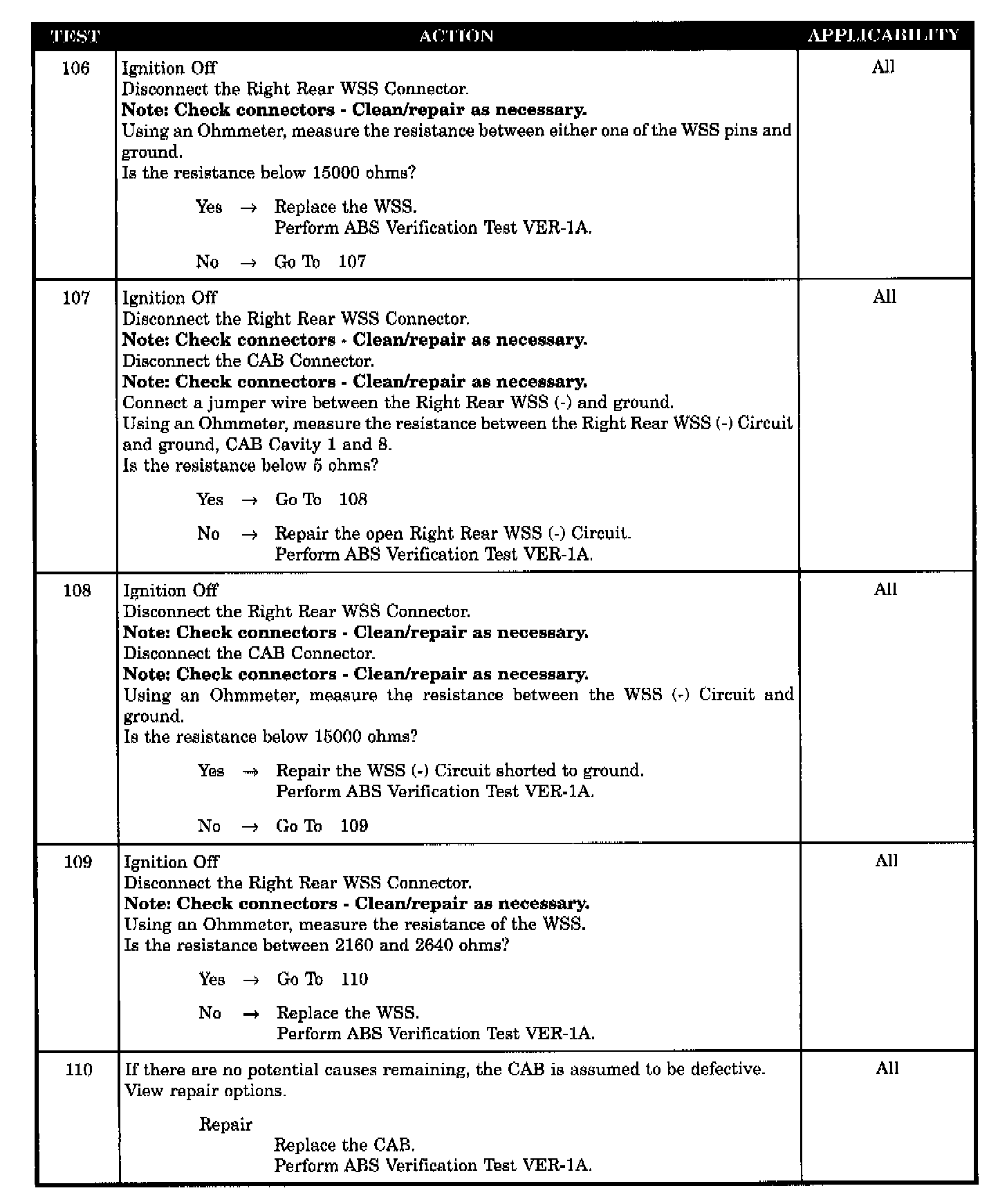

Tests 106 Through 110:

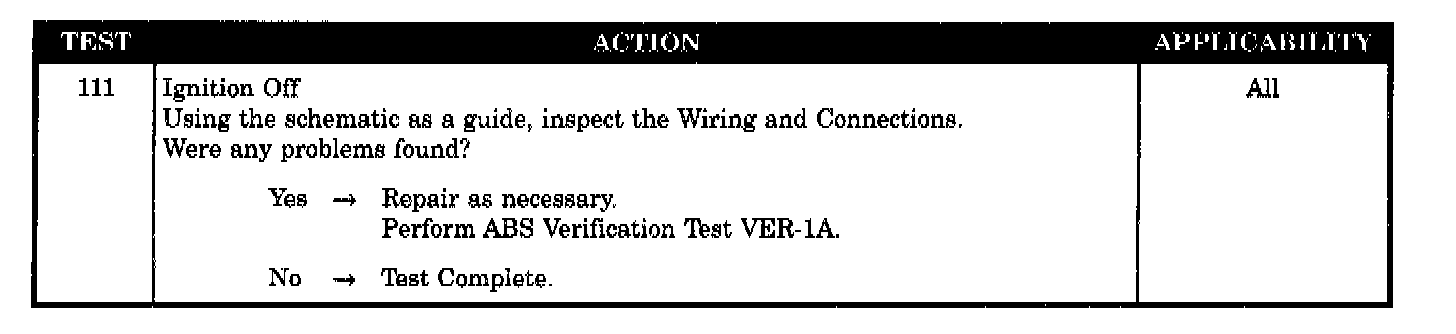

Test 111:

Symptom
RIGHT REAR SENSOR CIRCUIT FAILURE

When Monitored
1. Ignition on.
2. The CAB monitors the wheel speed circuit continuity at all times.

Set Condition
If the CAB detects an open or shorted wheel speed sensor circuit, the diagnostic trouble code (DTC) will set.

POSSIBLE CAUSES
WIRING AND CONNECTORS OBSERVABLE DEFECT
WSS CONNECTOR OBSERVABLE DAMAGE
WSS DAMAGED OR CONNECTOR DISCONNECTED
WSS (+) CIRCUIT OPEN
WSS (+) CIRCUIT SHORTED TO GROUND
WSS (-) CIRCUIT OPEN
WSS (-) CIRCUIT SHORTED TO GROUND
CAB DEFECTIVE
WSS DEFECTIVE (ISOLATION CHECK)
WSS DEFECTIVE (RESISTANCE CHECK)
