Right Front Sensor Circuit Failure

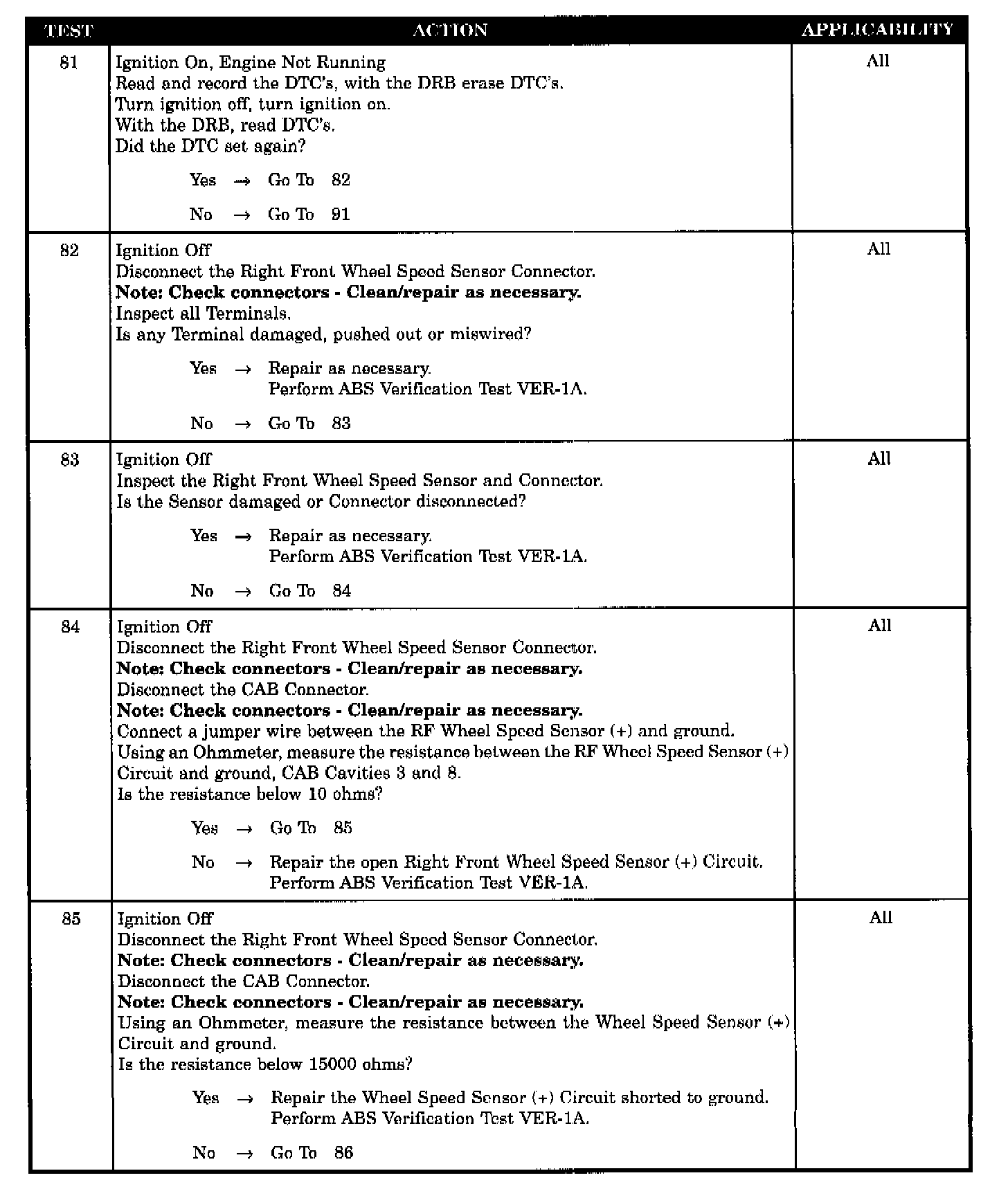

Tests 81 Through 85:

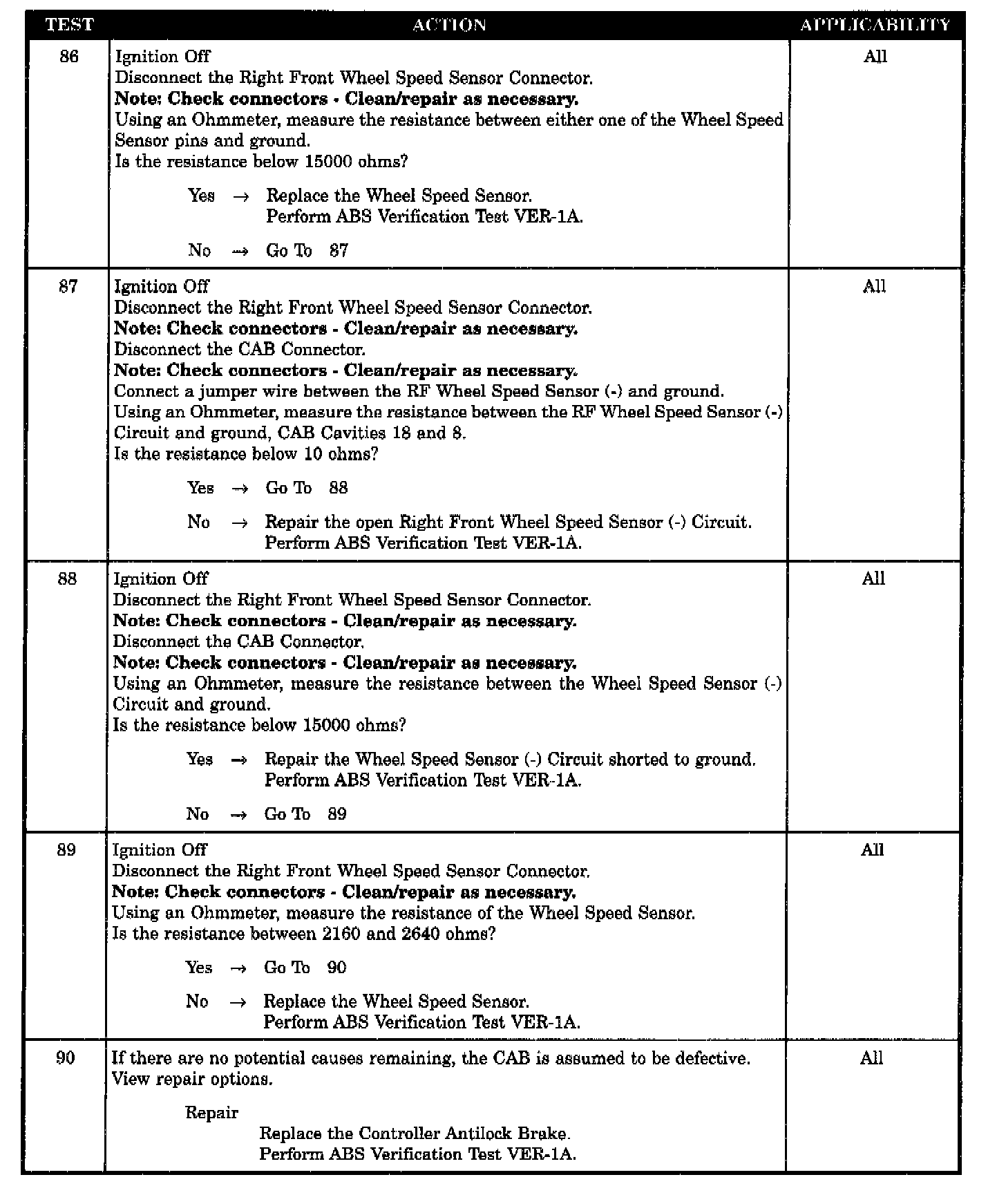

Tests 86 Through 90:

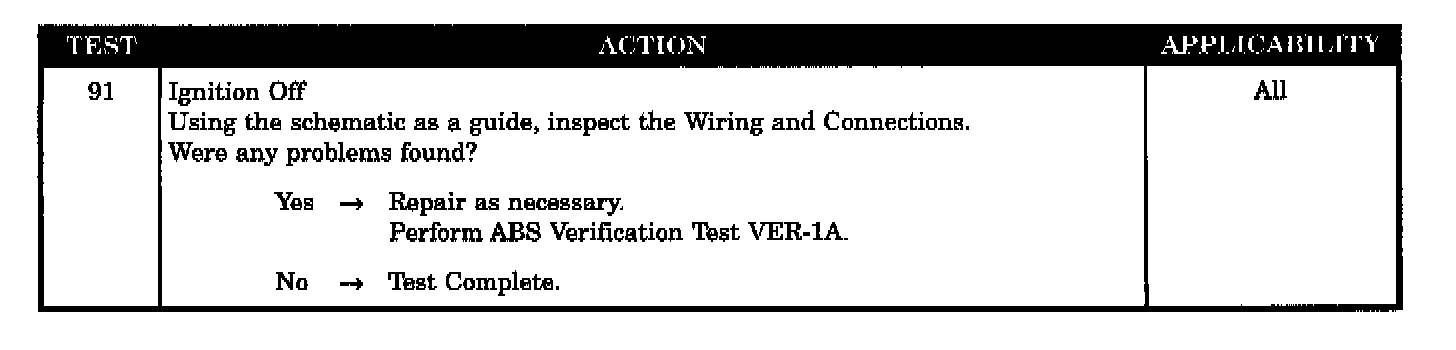

Test 91:

Symptom
RIGHT FRONT SENSOR CIRCUIT FAILURE

When Monitored
1. Ignition on.
2. The CAB monitors the wheel speed circuit continuity at all times.

Set Condition
If the CAB detects an open or shorted wheel speed sensor circuit, the diagnostic trouble code (DTC) will set.

POSSIBLE CAUSES
WIRING AND CONNECTORS OBSERVABLE DEFECT
WSS CONNECTOR OBSERVABLE DAMAGE
WSS DAMAGED OR CONNECTOR DISCONNECTED
WSS (+) CIRCUIT OPEN
WSS (+) CIRCUIT SHORTED TO GROUND
WSS (-) CIRCUIT OPEN
WSS (-) CIRCUIT SHORTED TO GROUND
CAB DEFECTIVE
WSS DEFECTIVE (ISOLATION CHECK)
WSS DEFECTIVE (RESISTANCE CHECK)
