DRB "NO RESPONSE" Message

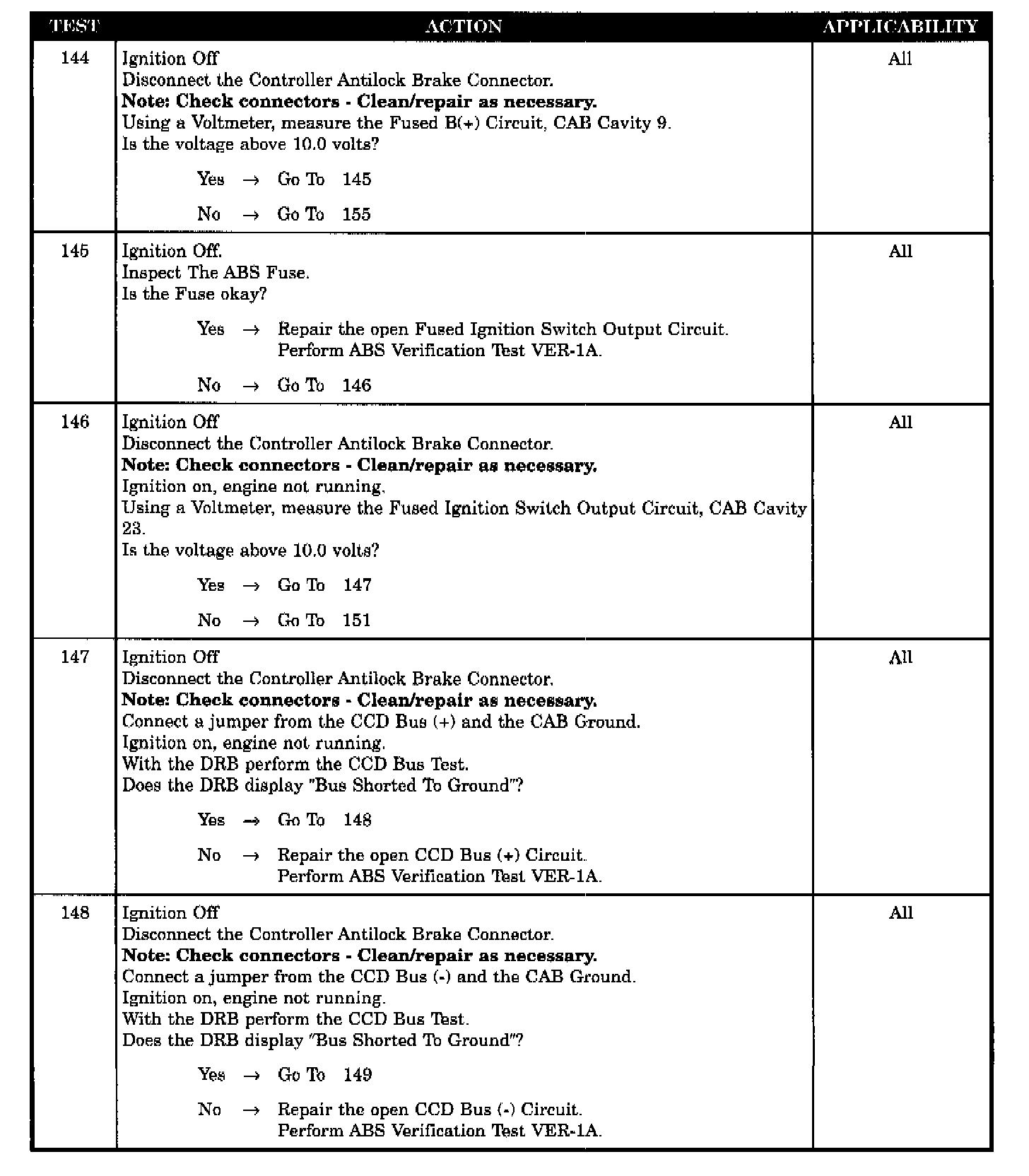

Tests 144 Through 148:

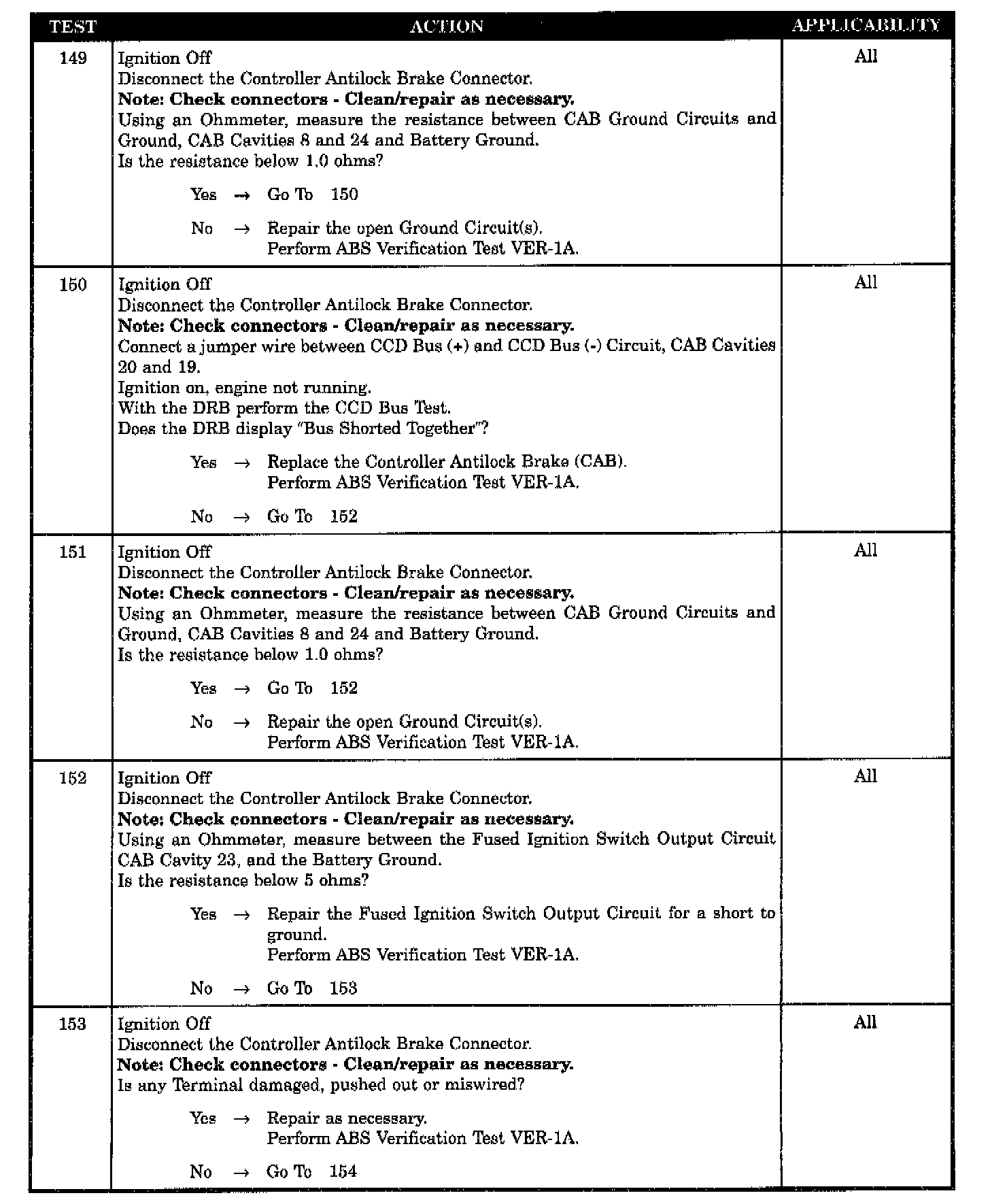

Tests 149 Through 153:

Tests 154 Through 157:

Symptom
DRB"NO RESPONSE" MESSAGE

POSSIBLE CAUSES
ABS FUSE DEFECTIVE
ABS FUSE DEFECTIVE
CAB GROUND CIRCUIT(S) OPEN
CCD BUS(+) CIRCUIT OPEN
CCD BUS(-) CIRCUIT OPEN
FUSED B(+) CIRCUIT OPEN
FUSED B(+) CIRCUIT SHORT TO GROUND
FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
FUSED IGNITION SWITCH OUTPUT CKT SHORT TO GROUND
CAB CONNECTOR OBSERVABLE DEFECT
CAB DEFECTIVE
