Brake Lamp Switch

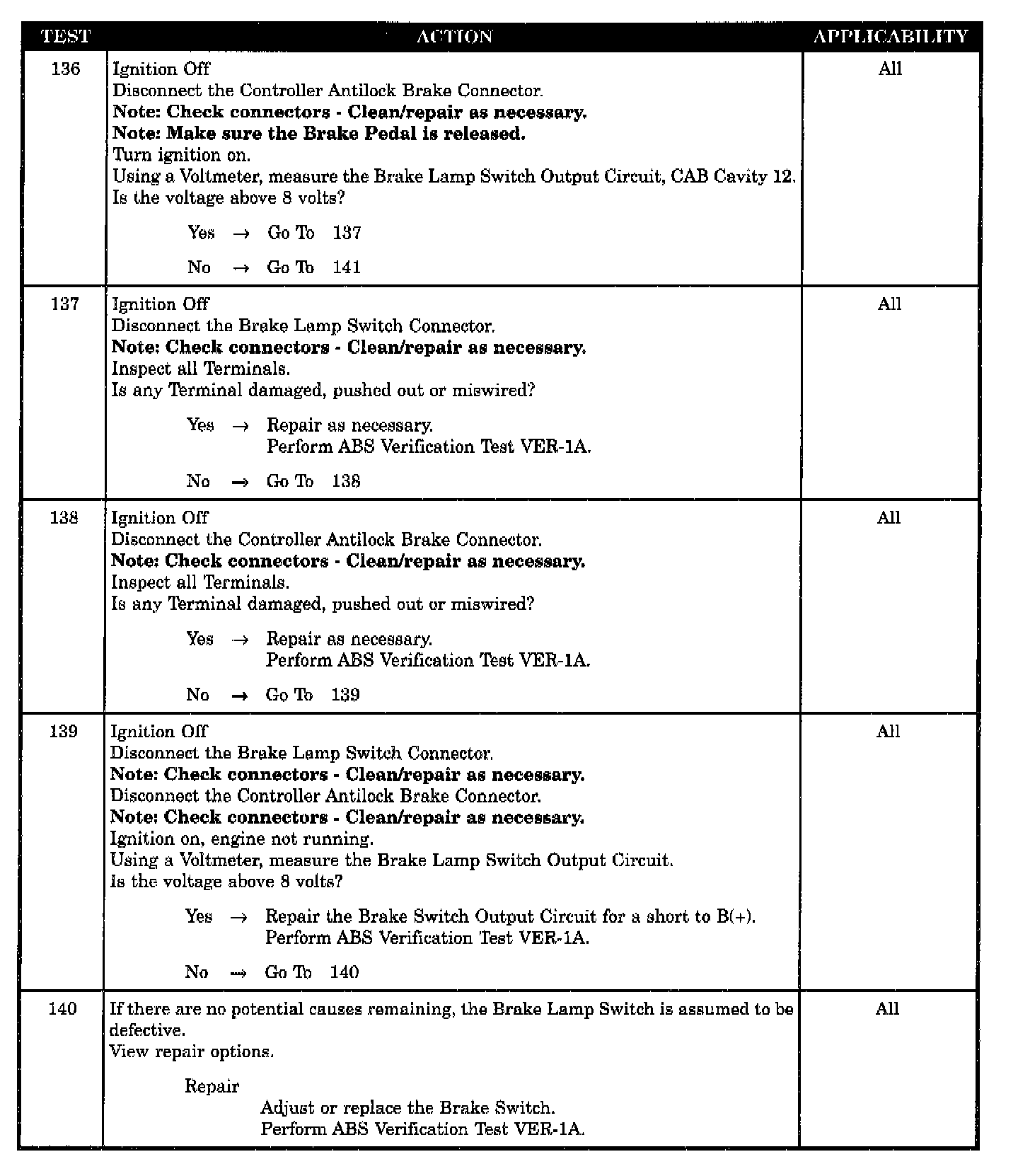

Tests 136 Through 140:

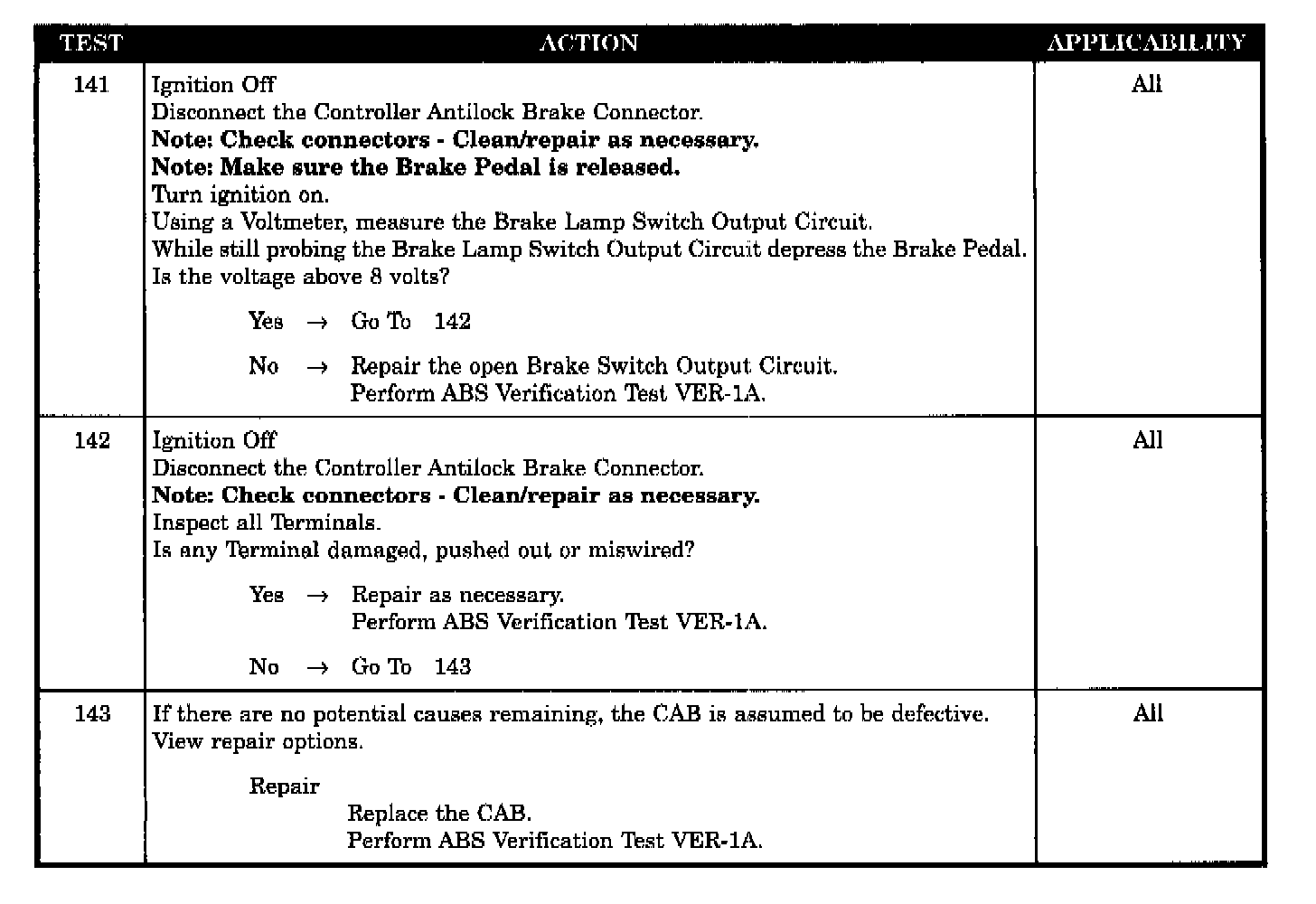

Tests 141 Through 143:

Symptom
BRAKE LAMP SWITCH

POSSIBLE CAUSES
BRAKE SWITCH CONNECTOR OBSERVABLE DEFECT
CAB CONNECTOR OBSERVABLE DEFECT
BRAKE SWITCH DEFECTIVE
BRAKE SWITCH OUTPUT CIRCUIT OPEN
BRAKE SWITCH OUTPUT CIRCUIT SHORT TO B+
CAB DEFECT
