Passenger Squib Circuit Shorted to Ground (Active)

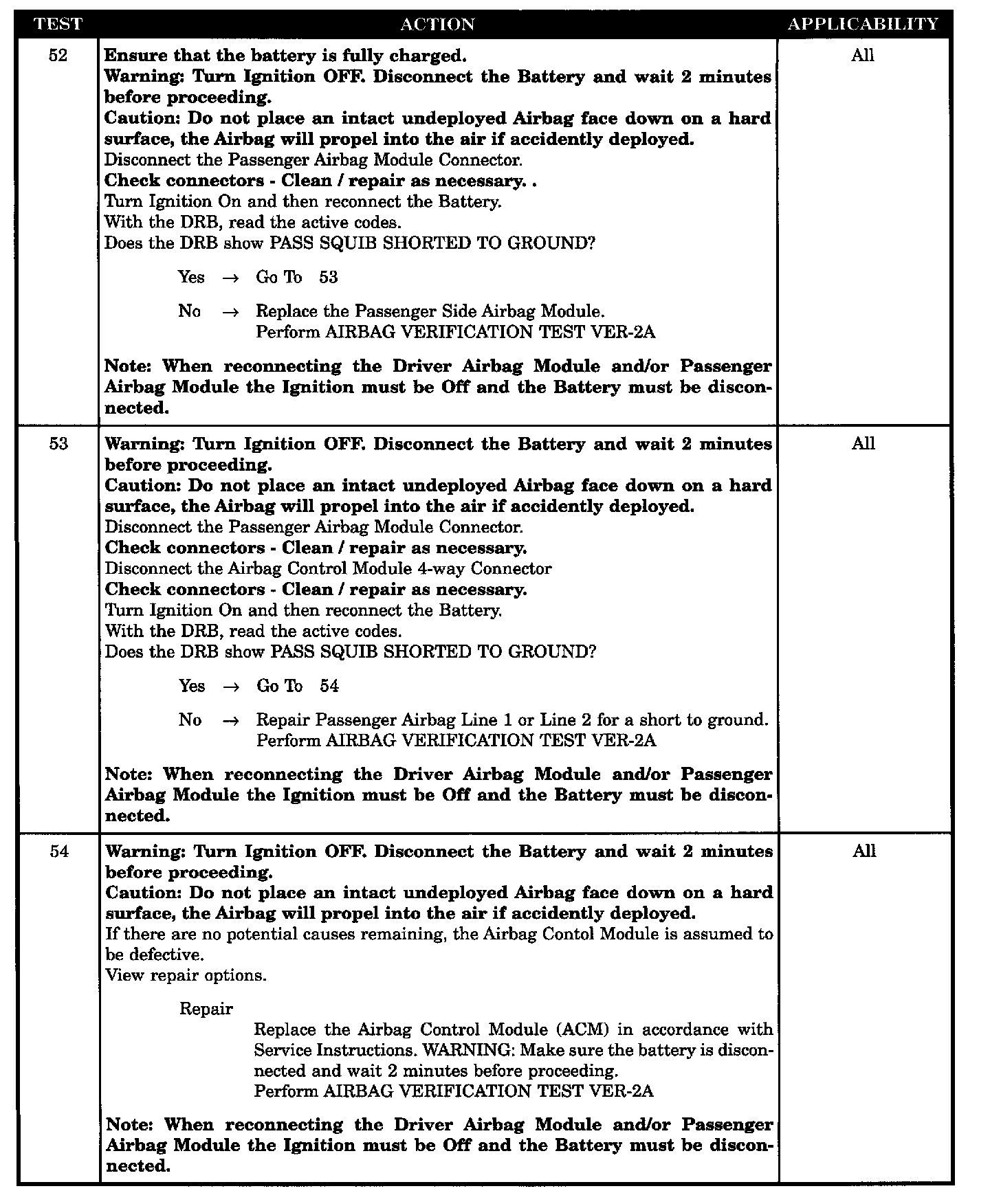

Tests 52 - 54:

SYMPTOM
PASSENGER SQUIB TERMINAL SHORT TO GROUND (ACTIVE)

WHEN MONITORED
Continuously with the ignition on.

SET CONDITION
With voltage on, the passenger airbag line 1 or line 2 circuit(s) is other than expected.

POSSIBLE CAUSES
- Passenger airbag line 1 or line 2 short to ground
- Passenger airbag module short to ground
- ACM defective, PAB circuit shorted to ground.
