Passenger Squib Circuit Shorted (Active)

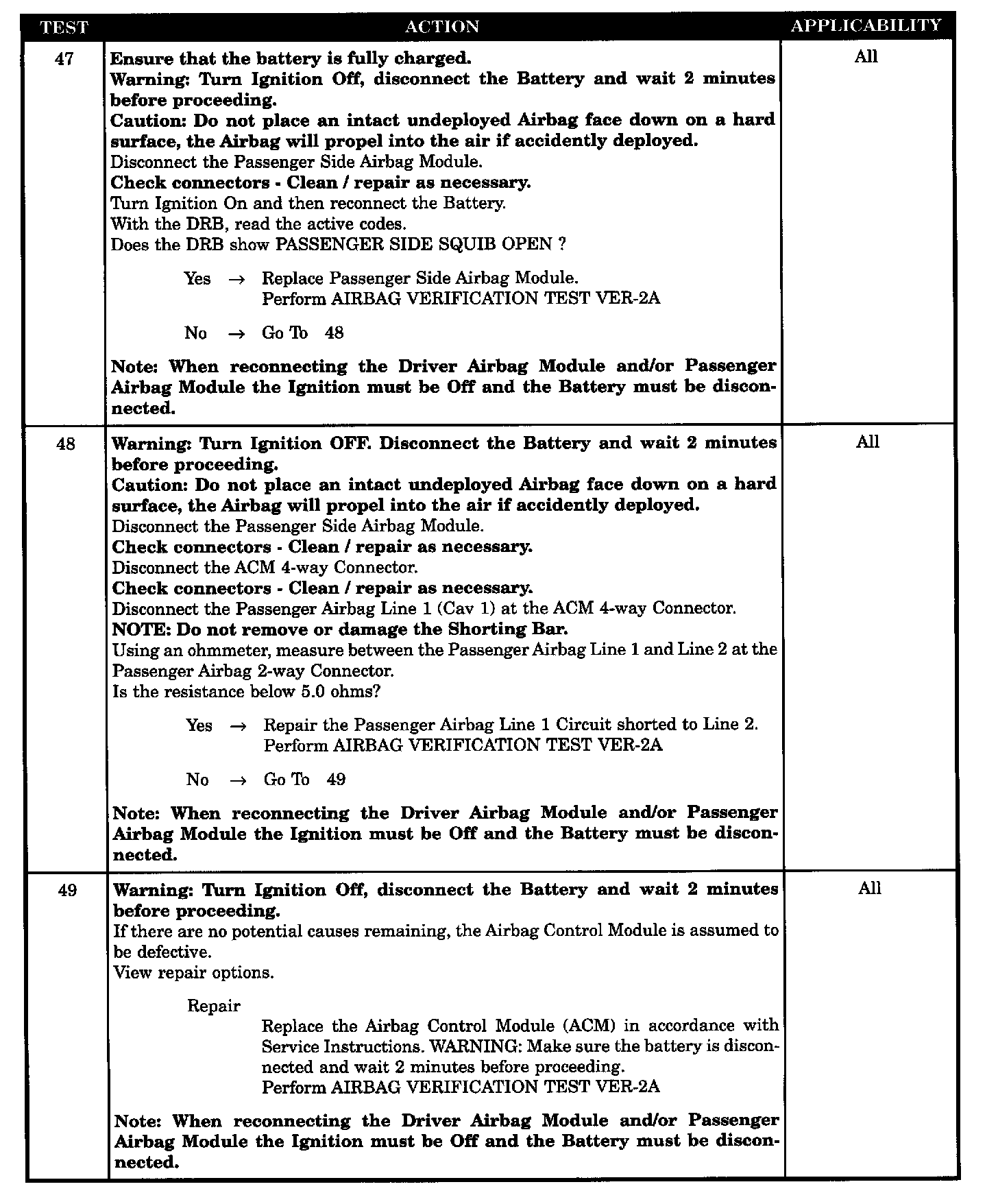

Tests 47 - 49:

SYMPTOM
PASSENGER SQUIB CIRCUIT SHORTED (ACTIVE)

WHEN MONITORED
Continuously with ignition on.

SET CONDITION
The ACM has detected low resistance in the Passenger Squib Circuits.

POSSIBLE CAUSES
- Passenger airbag line 1 shorted to line 2
- Passenger airbag module shorted
- ACM defective, passenger airbag circuit shorted
