Passenger Squib Circuit Open (Active)

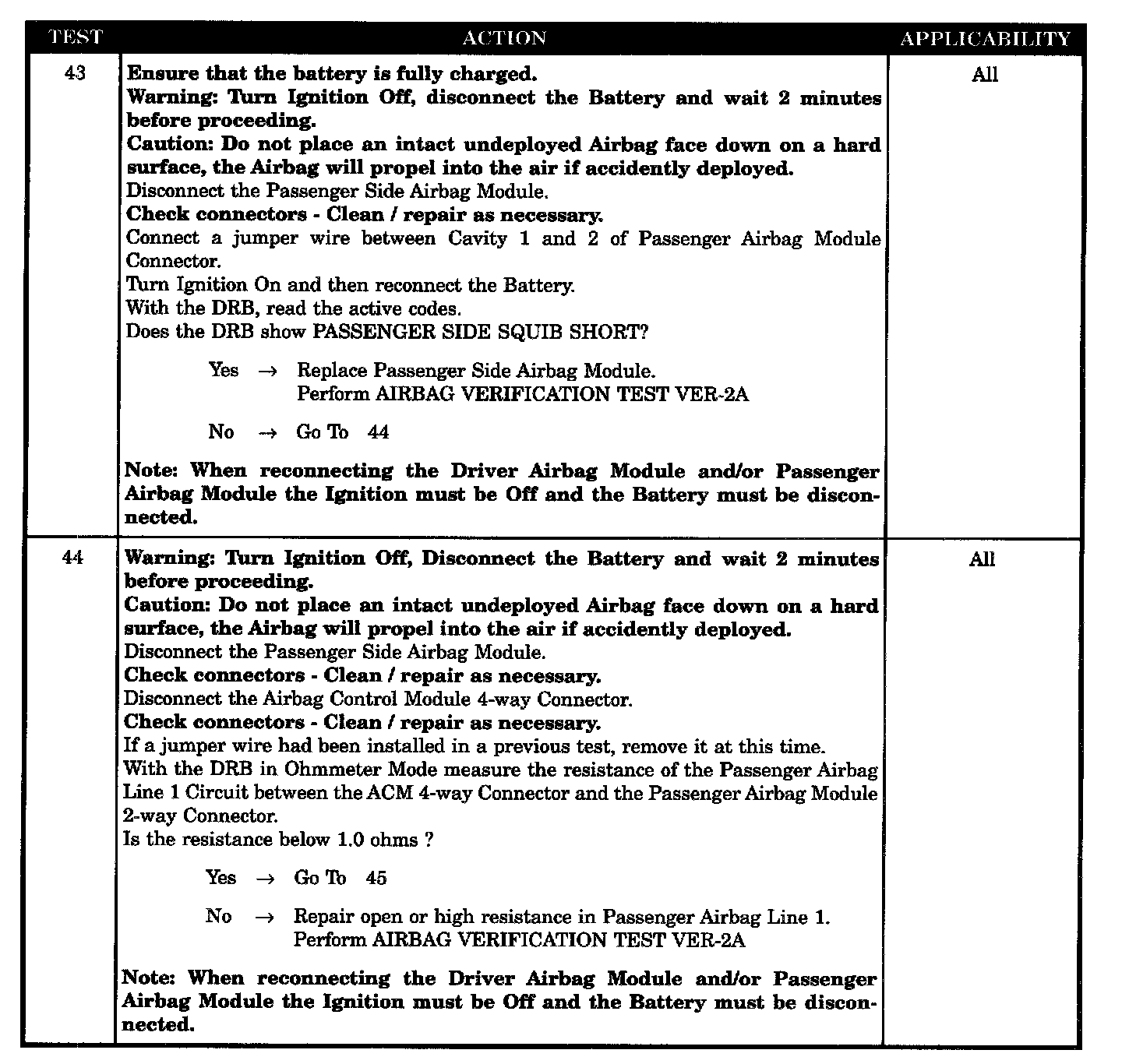

Tests 43 - 44:

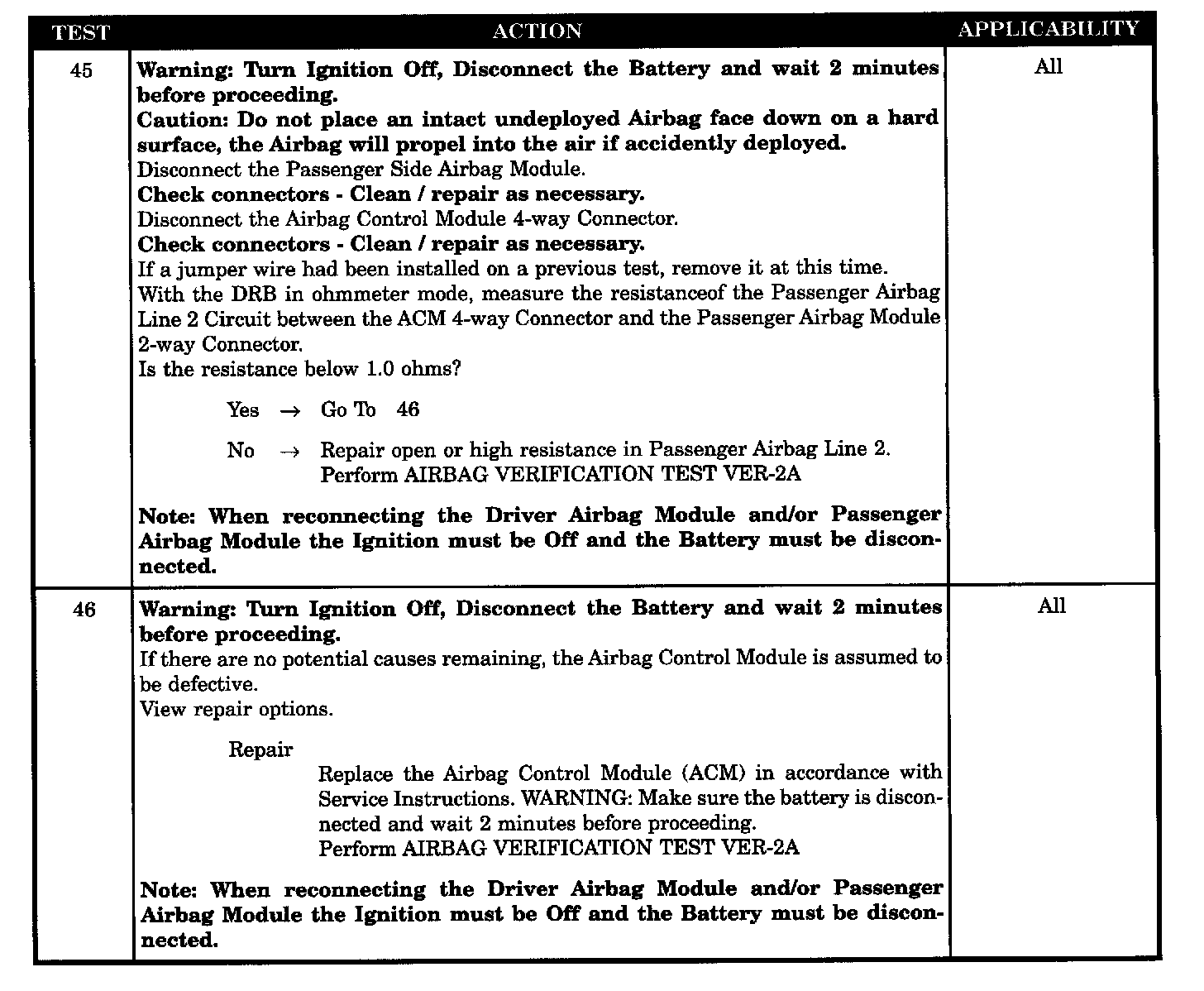

Tests 45 - 46:

SYMPTOM
PASSENGER SQUIB CIRCUIT OPEN (ACTIVE)

WHEN MONITORED
Continuously with ignition on.

SET CONDITION
The ACM has detected an open circuit or high resistance in the Passenger Squib Circuits.

POSSIBLE CAUSES
- Passenger airbag line 1 open
- Passenger airbag line 2 open
- Passenger airbag module open
- ACM defective, passenger airbag circuit open
