Loss of Ignition Run/Start (Active)

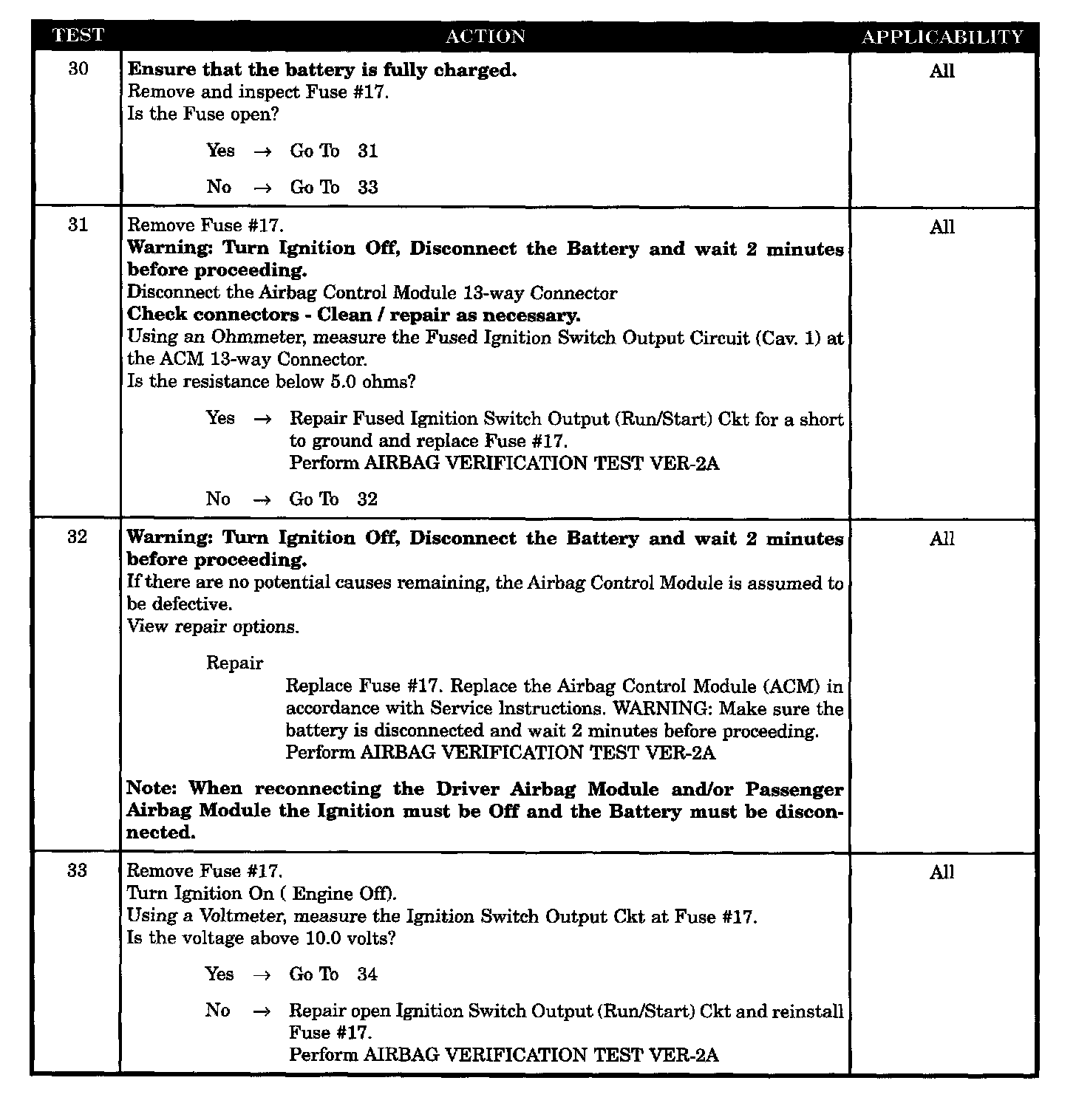

Tests 30 - 33:

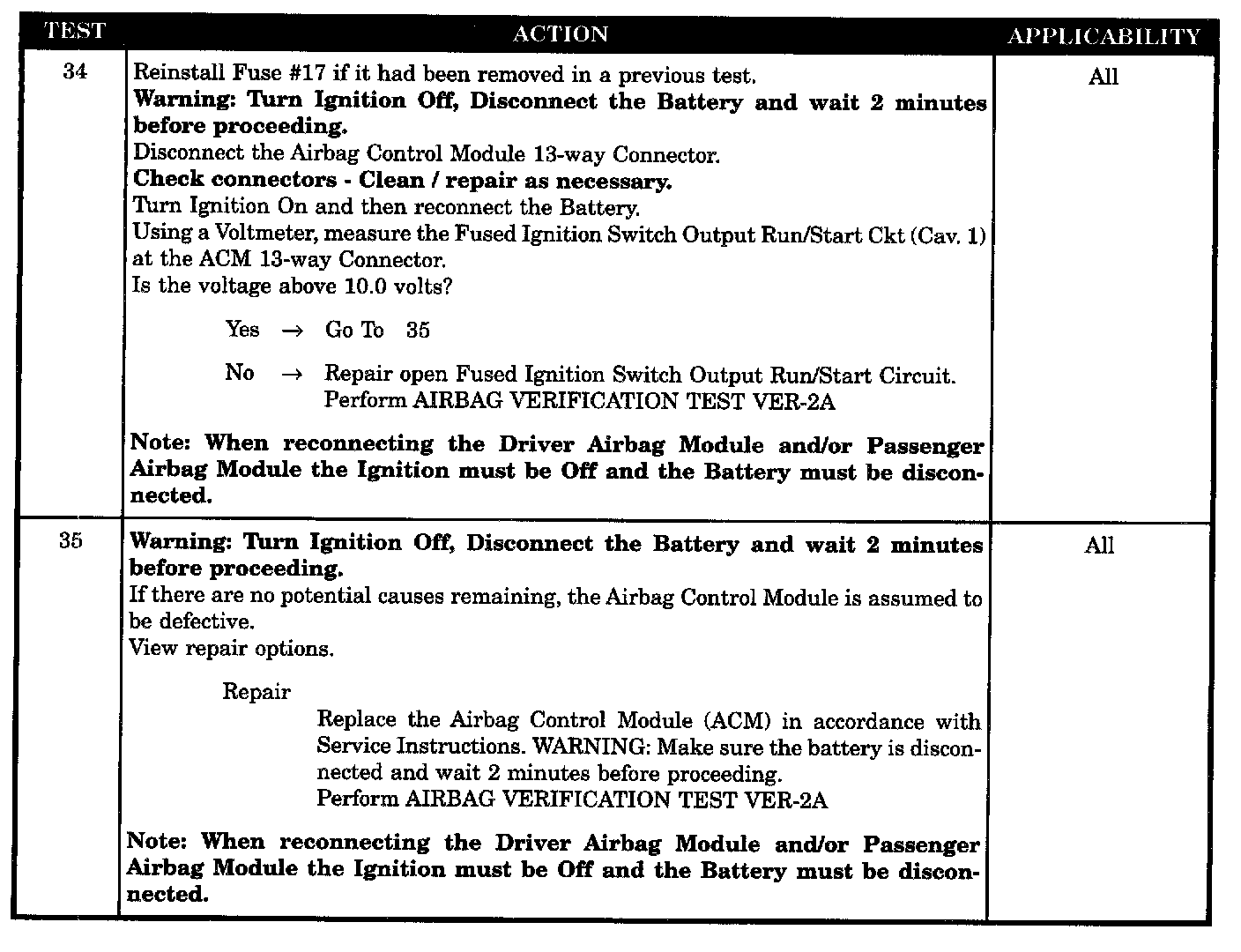

Tests 34 - 35:

SYMPTOM
LOSS OF IGNITION RUN/START (ACTIVE)

WHEN MONITORED
Continuously with the ignition on.

SET CONDITION
With voltage and current on, the ignition run/start circuit is other than expected.

POSSIBLE CAUSES
- Ignition switch output run/start open
- Fused ignition switch output run/start open
- Fused ignition switch output run/start shorted
- ACM defective, fused ignition run/start open
- ACM defective, fused ignition run/start shorted
