Driver Squib Terminal Shorted to Battery (Active)

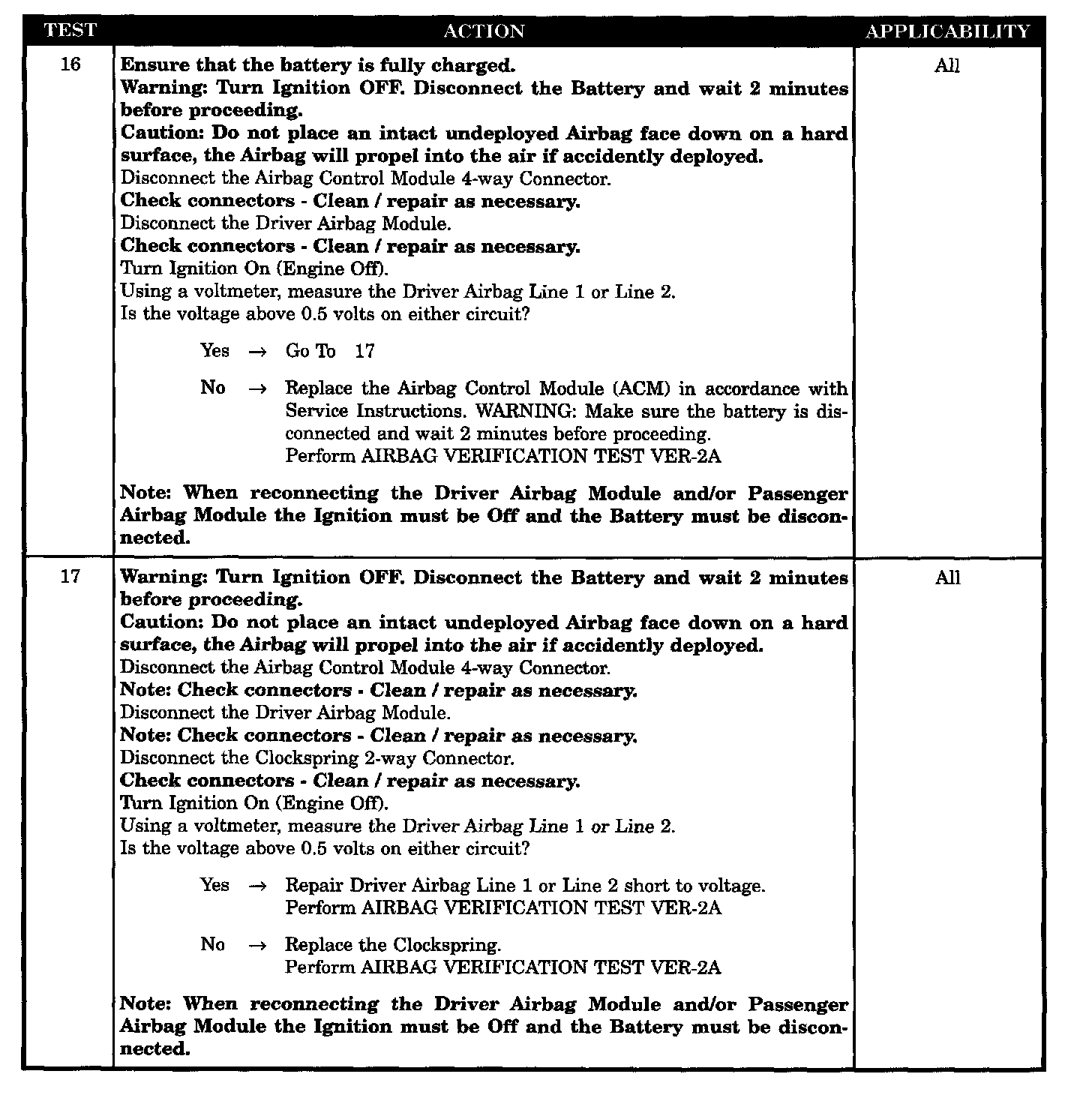

Tests 16 - 17:

SYMPTOM
DRIVER SQUIB TERMINAL SHORTED TO BATTERY (ACTIVE)

WHEN MONITORED
Continuously with the ignition on.

SET CONDITION
With voltage on, the driver airbag line 1 or line 2 circuit(s) is other than expected.

POSSIBLE CAUSES
- Driver airbag line 1 or line 2 short to voltage
- Clockspring short to voltage
- ACM DEF dab line 1 or line 2 shorted to voltage
