Driver Squib Circuit Shorted (Active)

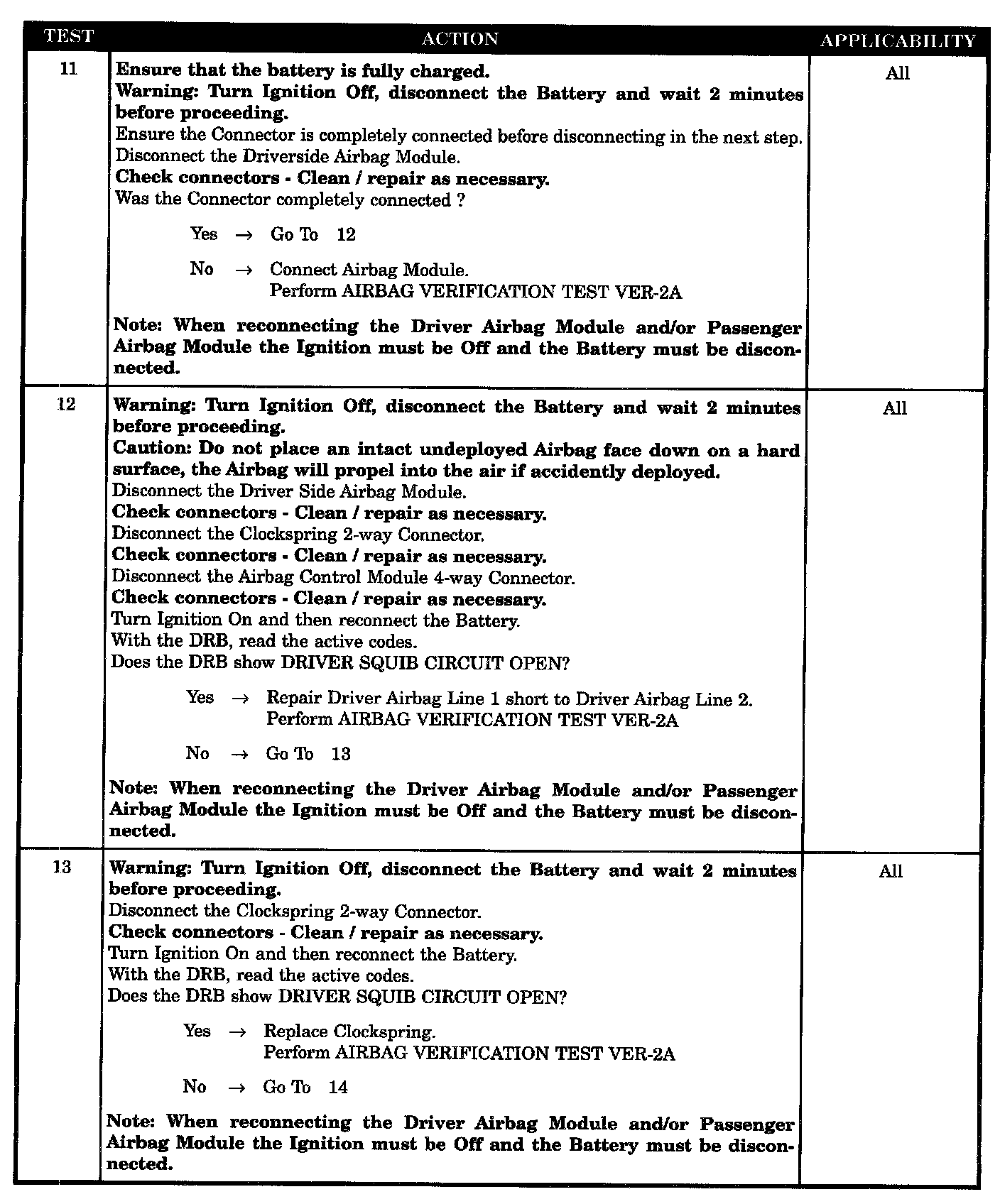

Tests 11 - 13:

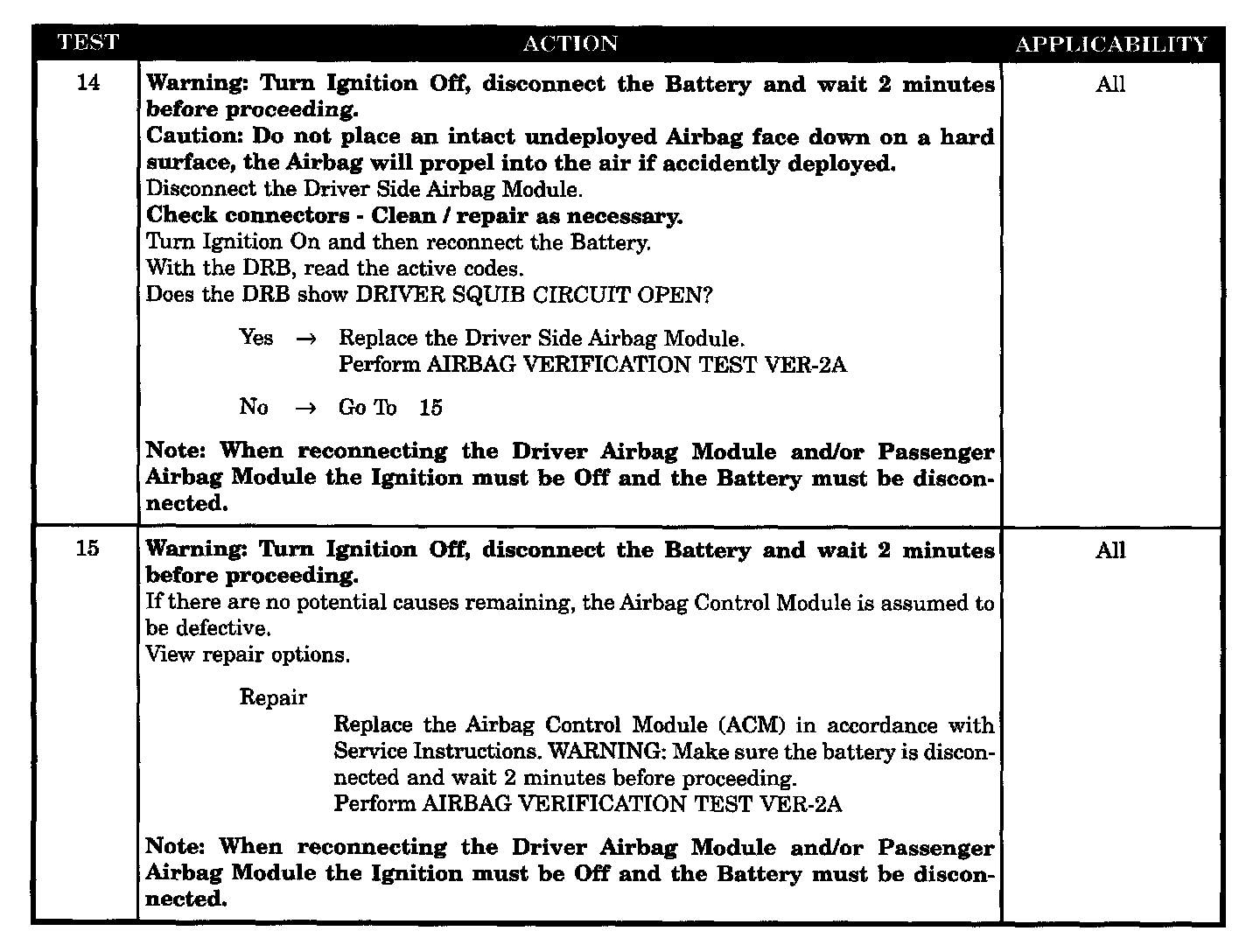

Tests 14 - 15:

SYMPTOM
DRIVER SQUIB CIRCUIT SHORTED (ACTIVE)

WHEN MONITORED
Continuously with ignition on.

SET CONDITION
The ACM has detected low resistance in the Driver Squib Circuits.

POSSIBLE CAUSES
- Driver Airbag connector disconnected
- Driver airbag line 1 shorted to driver airbag line 2
- Clockspring shorted
- Driver Airbag Module shorted
- ACM defective, driver airbag circuit shorted
