Driver Squib Circuit Open (Active)

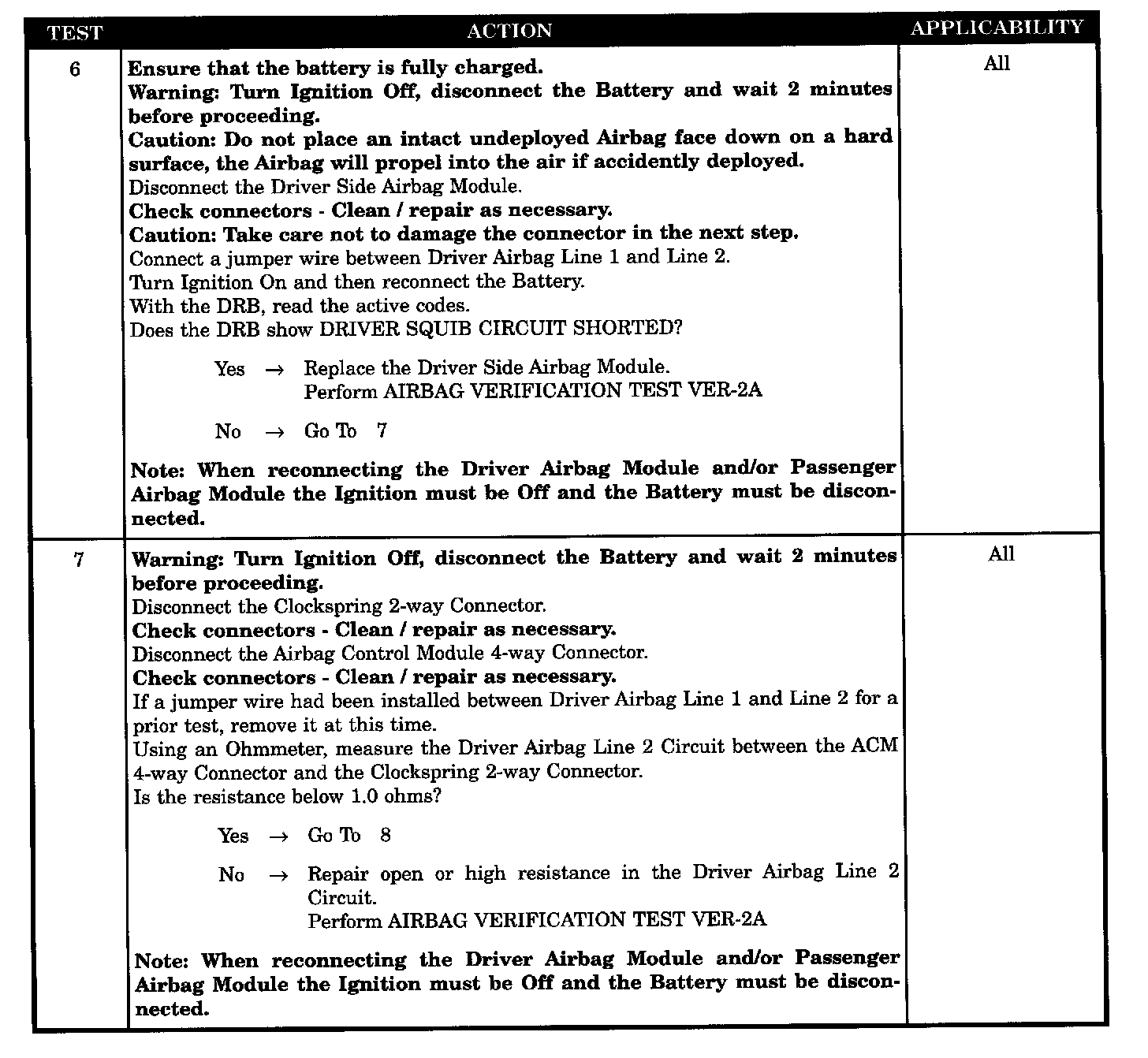

Tests 6 - 7:

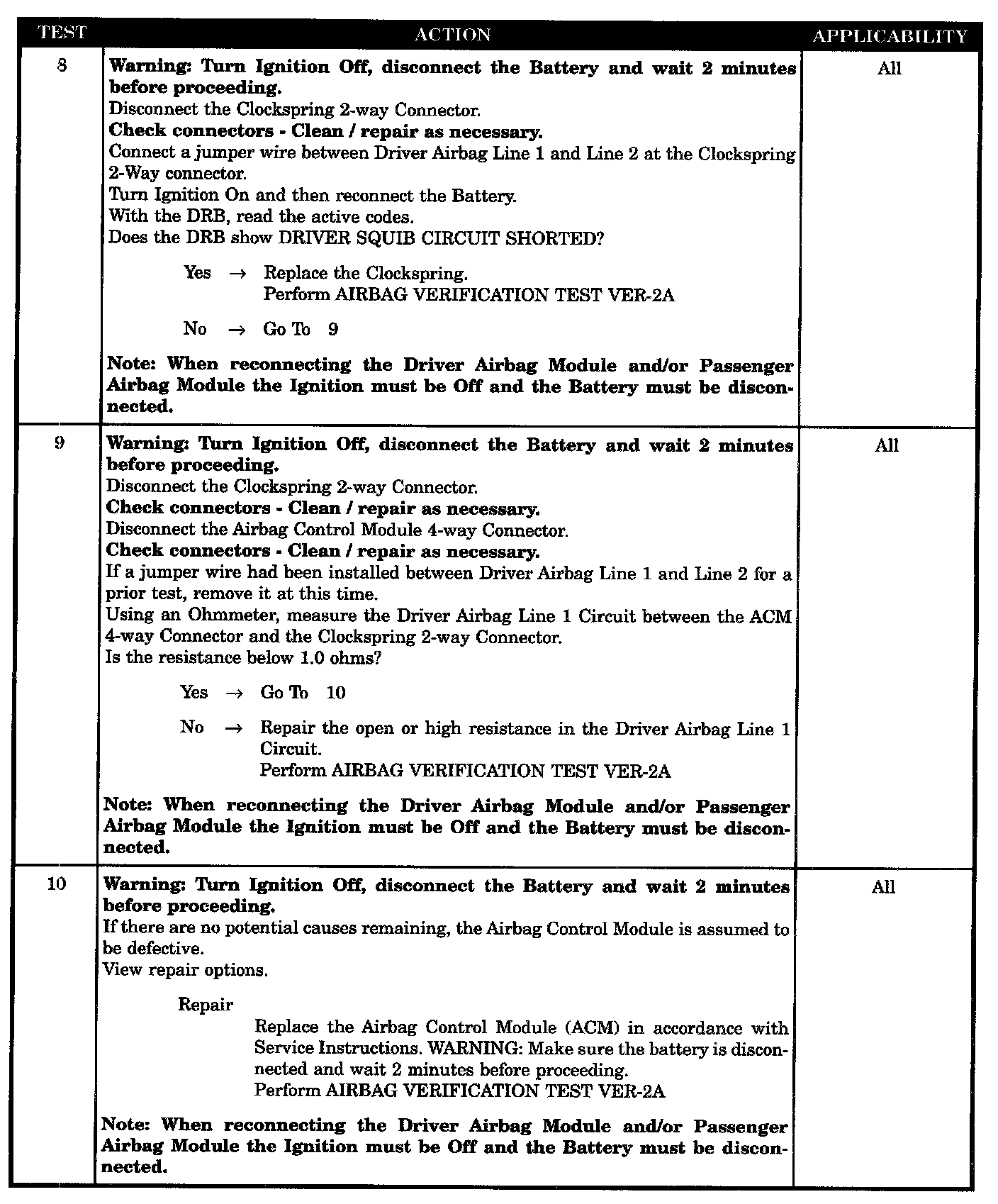

Tests 8 - 10:

SYMPTOM
DRIVER SQUIB CIRCUIT OPEN (ACTIVE)

WHEN MONITORED
Continuously with ignition on.

SET CONDITION
The ACM has detected an open circuit or high resistance in the Driver Squib Circuits.

POSSIBLE CAUSES
- Driver Airbag Line 1 Open
- River Airbag Line 2 Open
- Clockspring open
- Driver Airbag module open
- ACM defective , driver airbag circuit open
